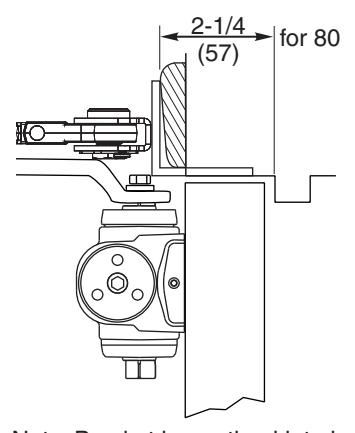

Note: Bracket is mortised into jamb as shown.

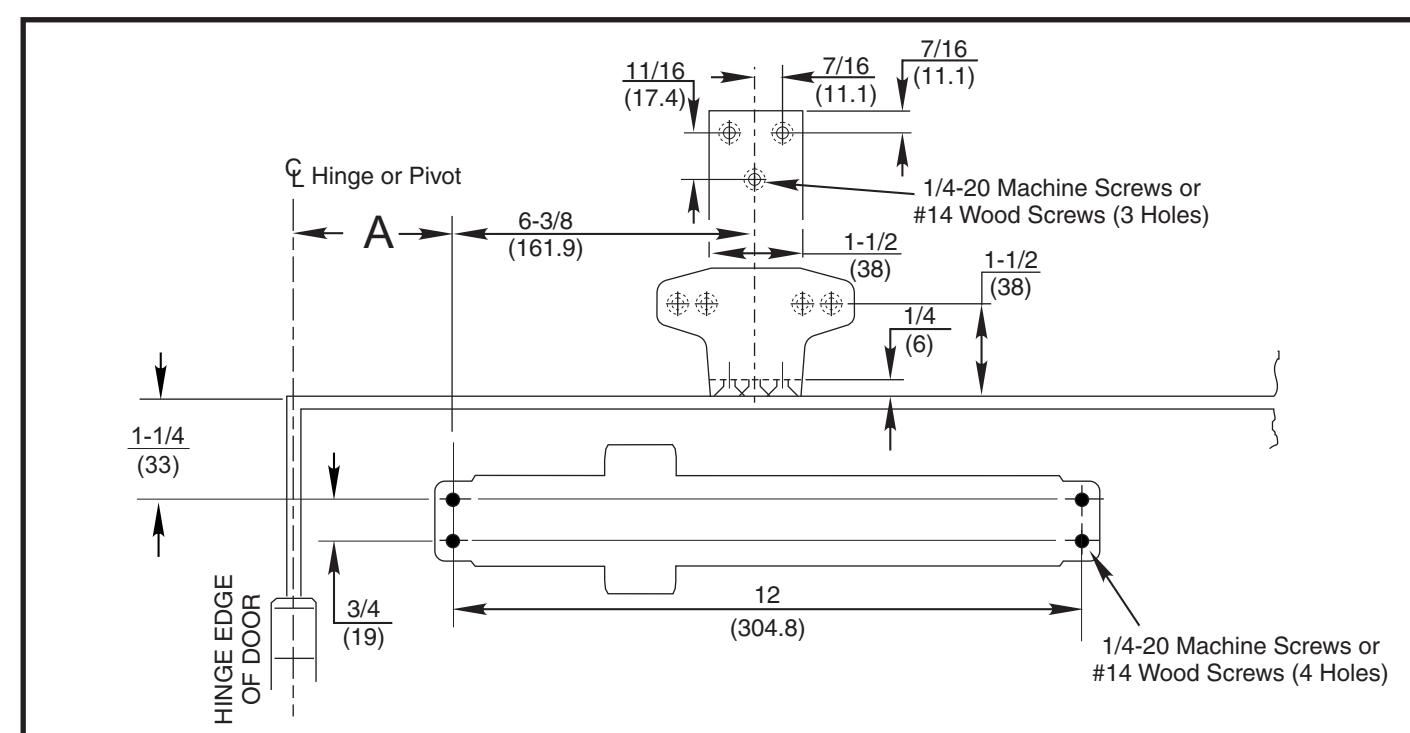

| Opening | Dimension "A" |
|---|---|
| To 100° |
7-1/2
(191) |
| 101° to 130° |
6
(152) |
| 131° to *180° |
4-1/2
(114) |
*Door/Wall/Hardware/Jamb conditions permitting
Notes:
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions given in inches (millimeters).
- 4. Hollow metal doors require channel or box type reinforcement when thru-bolt mount is specified.
- 5. Sex bolts required for wood or plastic faced fire door mounting.
- 6. Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm) unless otherwise noted.

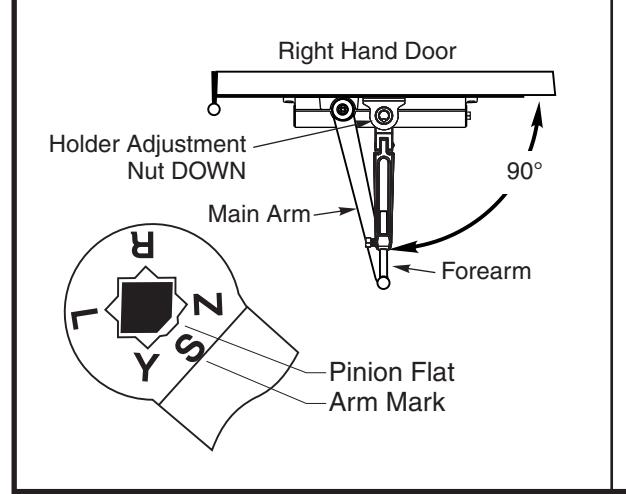

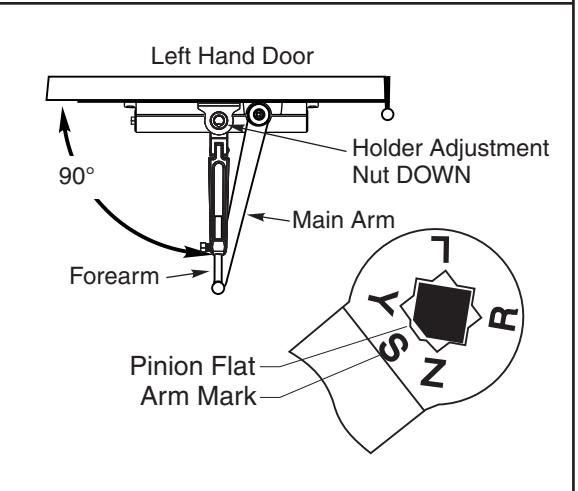

Position of Arm and Pinion Flat
8000H Series Door Closer with 80 Bracket Regular Hold Open Application For Bull Nose Trim 8100H, 8300H, and 8500H Sizes 1Thru 6
TEMPLATE NUMBER
7380-0107
RIXSON
ASSA ABLOY
01/22
Approved 2022-02-26
