Norton Rixson 7900 Series Overhead Concealed Closer, 7970DPS-OP, Security, 3, 4 Offset Pivots, Non-Hold Open Te…_7379-0654
Open the original PDF document
View PDF

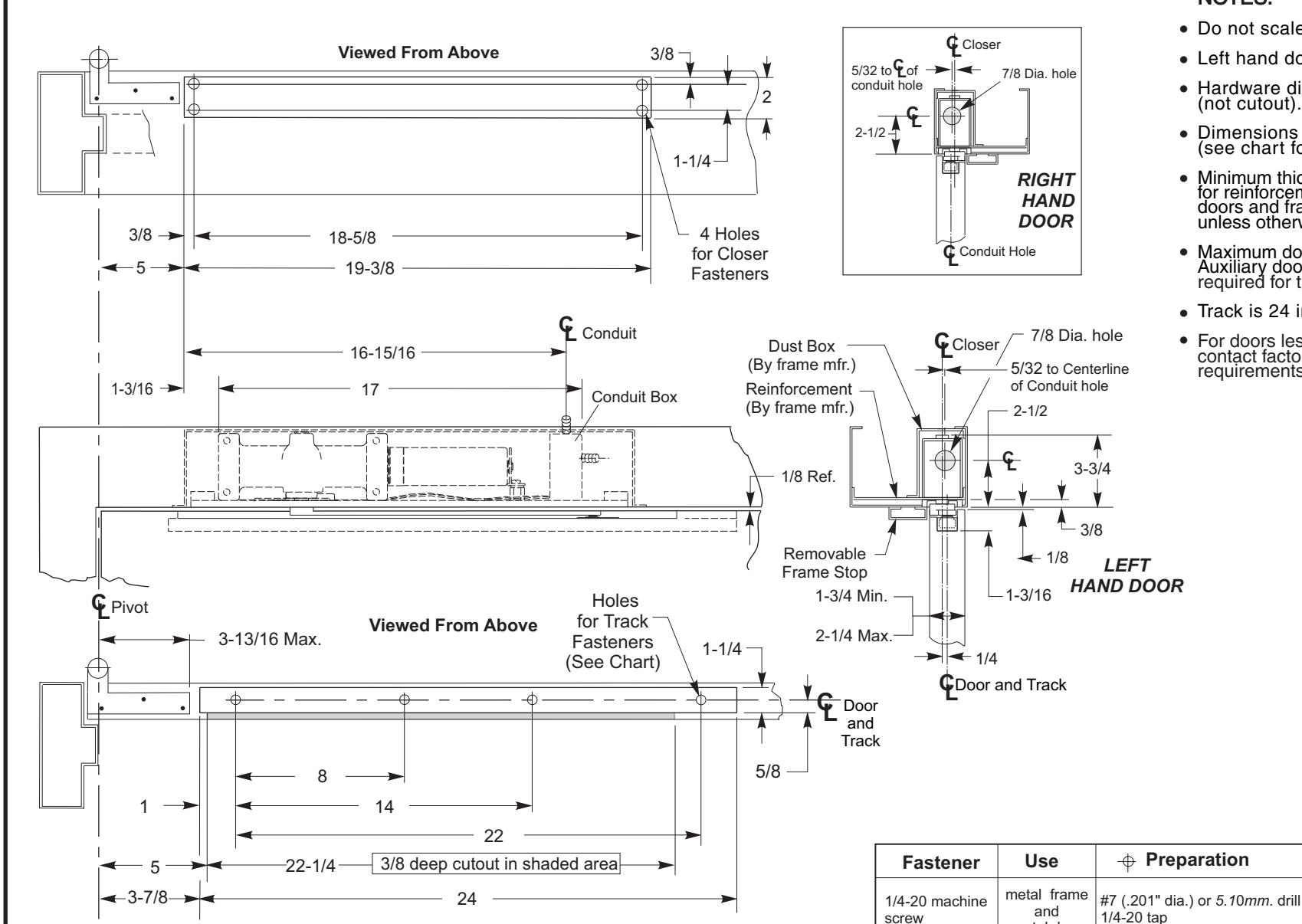

NOTES:
- Do not scale drawing.
- · Left hand door shown.
- Hardware dimensions shown (not cutout).
- Dimensions are in inches (see chart for metric conversion).
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
- Maximum door swing is 95 degrees. Auxiliary door stop (not supplied) is required for this application.
- Track is 24 inches long.
- For doors less than 29 inches wide, contact factory for modification requirements.
| Inches mm . 1/8 3.2 |
|---|
| 4/4 |
| 1/4 6.4 |
| 3/8 9.5 |
|
5/8 15.9
1 25.4 |
| 1 25.4 |
| 1-3/16 30.1 |
| 1-1/4 31.8 |
| 1-3/4 44.5 |
|
2 50.8
2-1/4 57.2 |
| 3-3/4 95.3 |
| 3-13/16 96.8 |
| 3-7/8 98.4 |
| 5 127.0 |
|
5 127.0
8 203.2 14 355.6 |
| 14 355.6 |
| 18-5/8 473.0 |
| 19-3/8 492.1 |
| 22 558.8 |
| 22-1/4 565.1 |
| 24 609.6 |
| 29 736.6 |
7970DPS-OP Series Security Door Closers For Use on Doors Hung on 3/4" Offset Pivots Non Hold Open Installation
NORTON RIXSON
ASSA ABLOY
TEMPLATE NUMBER
metal door
DATE
12/21 7379-0654
