Norton Rixson 7900 Series Overhead Concealed Closer, 7900OP, Non-Hold Open, 3, 4 Offset Pivot Template_7379-0254
Open the original PDF document
View PDF

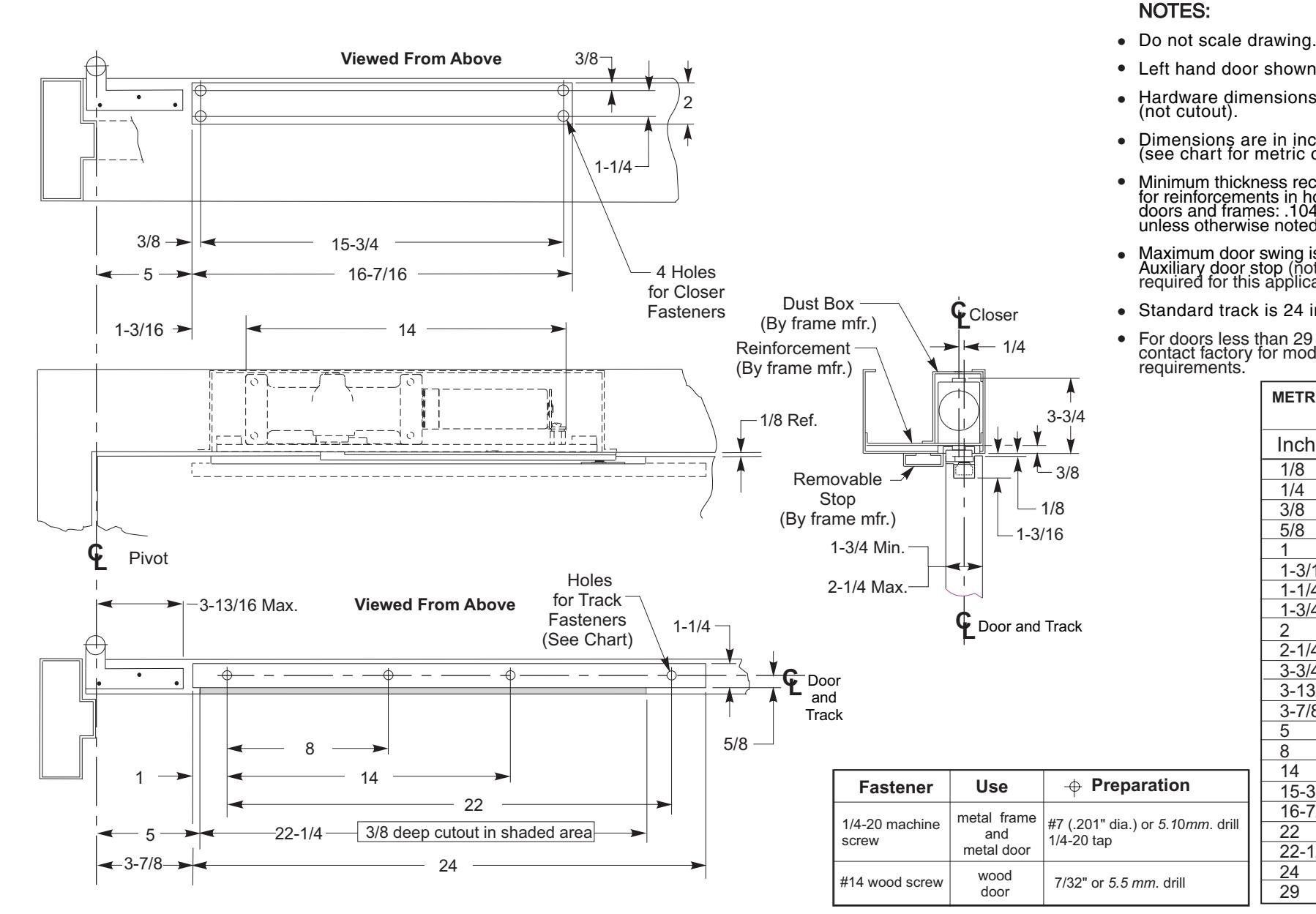

- · Left hand door shown.
- Hardware dimensions shown
- Dimensions are in inches (see chart for metric conversion).
- Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
- Maximum door swing is 95 degrees. Auxiliary door stop (not supplied) is required for this application.
- Standard track is 24 inches long.
- For doors less than 29 inches wide, contact factory for modification requirements.
|
METRIC CONVERSION
CHART |
|||
|---|---|---|---|
| Inches | mm. | ||
| 1/8 | 3.2 | ||
| 1/4 | 6.4 | ||
| 3/8 | 9.5 | ||
| 5/8 | 15.9 | ||
| 1 | 25.4 | ||
| 1-3/16 | 30.1 | ||
| 1-1/4 | 31.8 | ||
| L | 1-3/4 | 44.5 | |
| 2-1/4 | 50.8 | ||
| 2-1/4 | 57.2 | ||
| 3-3/4 | 95.3 | ||
| 3-13/16 | 96.8 | ||
| 3-7/8 | 98.4 | ||
| 5 | 127.0 | ||
| 8 | 203.2 | ||
| ıl | 14 | 355.6 | |
| ΙГ | 15-3/4 | 400.0 | |
| 16-7/16 | 417.5 | ||
| 22 | 558.8 | ||
| 22-1/4 | 565.1 | ||
| 24 | 609.6 | ||
| 29 | 736.6 | ||
79000P Series Door Closers For Use on Doors with 3/4" Offset Pivots Non Hold Open Installation
NORTON RIXSON
ASSA ABLOY
TEMPLATE NUMBER
DATE
7379-0254 12/21
