Norton Rixson 7900 Series Overhead Concealed Closer, 7900H-OP, 3, 4 Offset Pivots, Hold Open Template_7379-0256

-	ree.
$\backslash mathbf\{v\}$	IEO.

• Hardware dimensions shown
• Dimensions are in inches (see chart for metric conversion).
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
• Track is 24 inches long.
• For doors less than 30 inches wide, contact factory for modification requirements.

CHART
Inches	mm.
1/8	3.2
1/4	6.4
3/8	9.5
5/8	15.9
1	25.4
1-3/16	30.1
1-1/4	31.8
1-3/4	44.5
2	50.8
2-1/4	57.2
3-3/4	95.3
3-13/16	96.8
4	101.6
5	127.0
8	203.2
14	355.6
15-3/4	400.0
16-7/16	417.5
22	558.8
24	609.6
30	762.0

METRIC CONVERSION

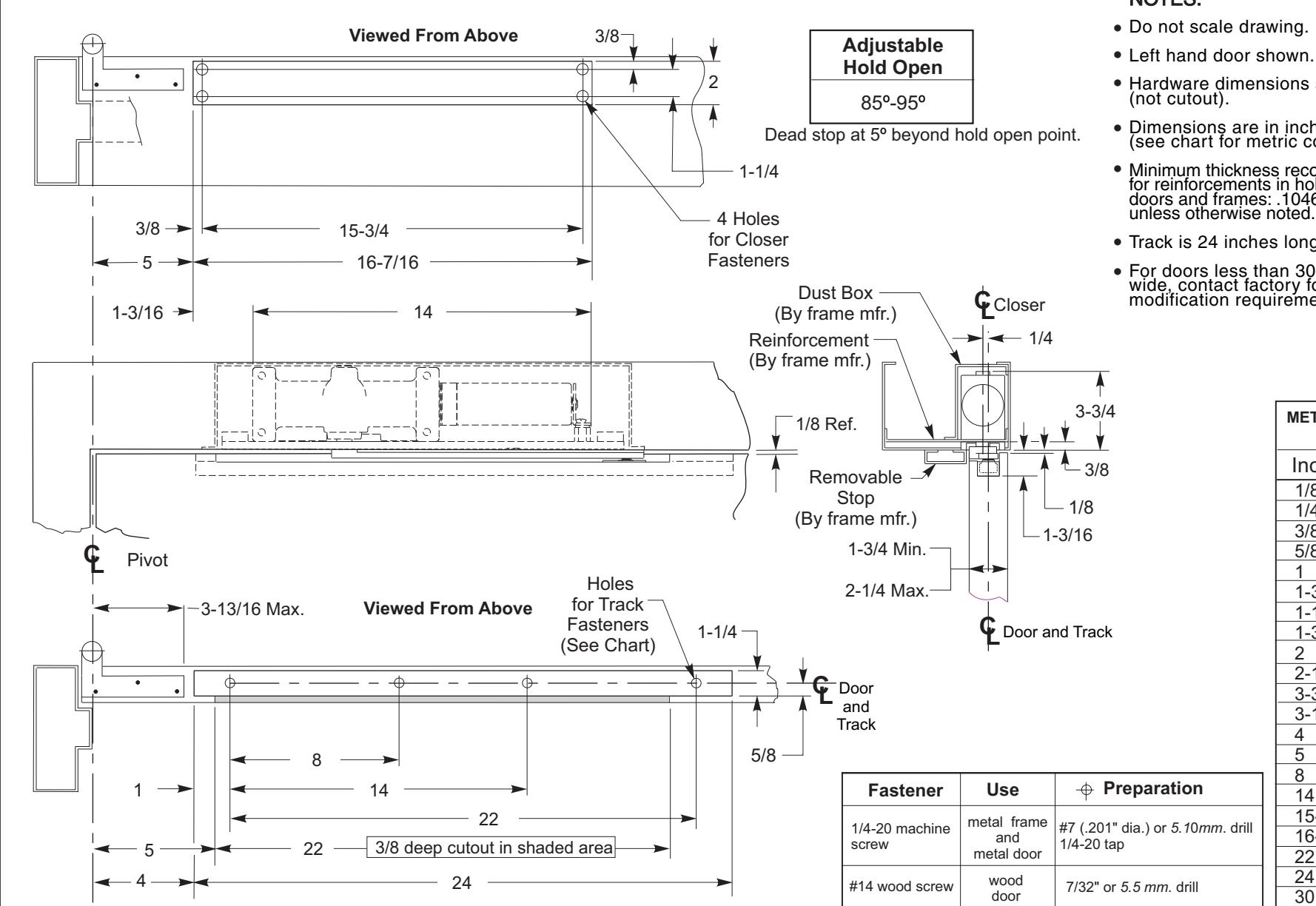

7900H-OP Series Door Closers For Use on Doors Hung on 3/4" Offset Pivots Hold Open Installation

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7379-0256

DATE

12/21
