Norton Rixson 7900 Series Overhead Concealed Closer, 7900H-B, Hold Open, 4-1, 2 or 5 Wide Butt Hinges Templat…_7379-0263

3/8 deep cutout in shaded area

NOTES:

• · Do not scale drawing.
• · Left hand door shown.
• · Hardware dimensions shown (not cutout).
• · Dimensions are in inches.
• Minimum thickness recommended for reinforcements in hollow metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
• Minimum door width 29 inches.
• · Track is 24 inches long.
• Maximum width hinge is 5 inches.

Adjustable Hold Opening 85°-110°

Door will travel 5° beyond hold open point

NOTE:

7/8

1-1/8 1-1/4 1-3/8 1-1/2 1-5/8

Removable Frame Stop must have the stop Edge nearest the Door removed to permit arm clearance. Remove a section 15" long starting 7" from the centerline of the hinge.

Fastener	Use	Preparation
1/4-20 machine screw	metal frame and metal door	#7 (.201" dia.) Drill 1/4-20 tap
#14 wood screw	wood door	7/32" drill

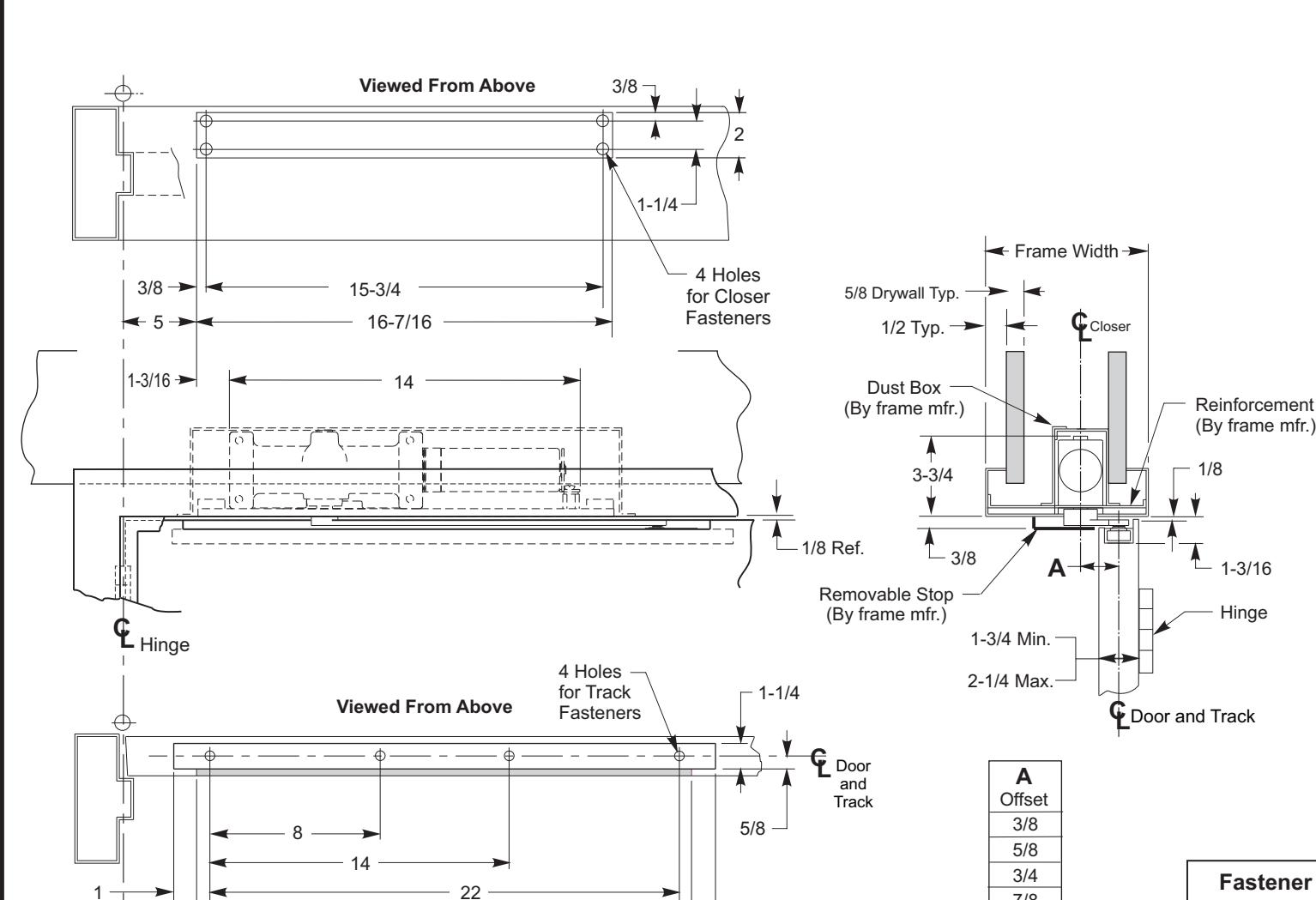

7900H-B Series Door Closers For Use on Doors with 4" or 5" Wide Butt Hinges Hold Open- Hinge Mounted Installation With Closer Body offset in Hollow Metal Frame

ASSA ABLOY

TEMPLATE NUMBER

DATE

12/21 7379-0263
