Norton Rixson 7900 Series Overhead Concealed Closer, 7900CP, Non-Hold Open, Center Pivots Template_7379-0257
Open the original PDF document
View PDF

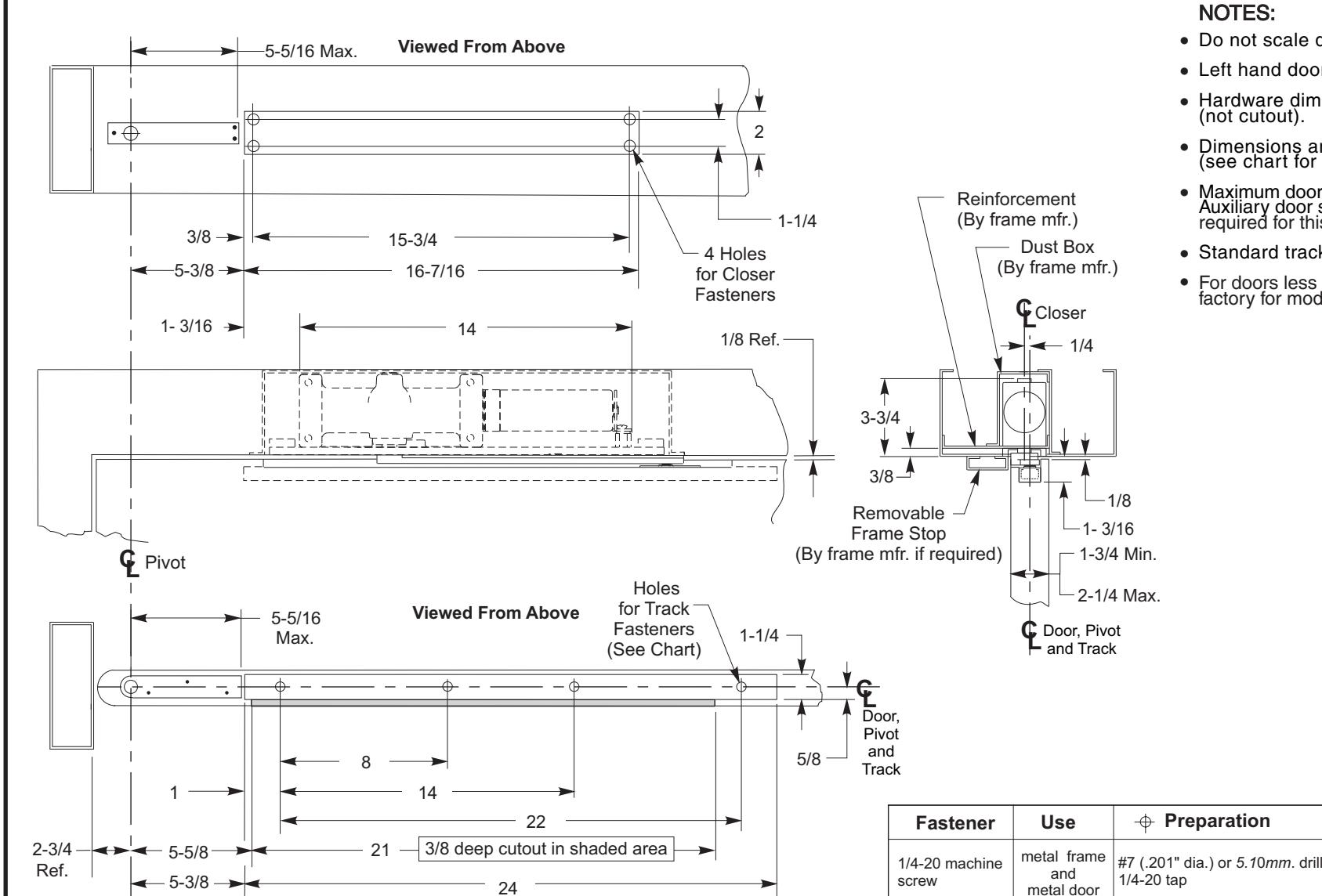

- Do not scale drawing.
- ยท Left hand door shown.
- Hardware dimensions shown (not cutout).
- Dimensions are in inches (see chart for metric conversion).
- Maximum door swing is 95 degrees. Auxiliary door stop (not supplied) is required for this application.
- Standard track is 24 inches long.
- For doors less than 34" wide, contact factory for modification requirements.
|
METRIC CONVERSION
CHART |
|
|---|---|
| Inches | mm. |
| 1/8 | 3.2 |
| 1/4 | 6.4 |
| 3/8 | 9.5 |
| 5/8 | 15.9 |
| 1 | 25.4 |
| 1-3/16 | 30.2 |
| 1-1/4 | 31.8 |
| 1-3/4 | 44.5 |
| 2 | 50.8 |
| 2-1/4 | 57.2 |
| 2-3/4 | 69.8 |
| 3-3/4 | 95.3 |
| 5-5/16 | 134.9 |
| 5-3/8 | 136.5 |
| 5-5/8 | 142.9 |
| 8 | 203.2 |
| 14 | 355.6 |
| 15-3/4 | 400.0 |
| 16-7/16 | 417.9 |
| 21 | 533.4 |
| 22 | 558.8 |
| 24 | 609.6 |
| 34 | 863.6 |
7900CP Series Door Closers For Use on Doors with Center Pivots Non Hold Open Installation
NORTON RIXSON
ASSA ABLOY
TEMPLATE NUMBER
wood
door
7/32" or 5.5 mm. drill
#14 wood screw
DATE 3
7379-025
12/21
