Norton Rixson 78B, F Series Door Closer, 78-B, F-PRA, 78-B, F-PHA, with 6890 Support Bracket & 6891 Spacer Block, P…_7349-0255

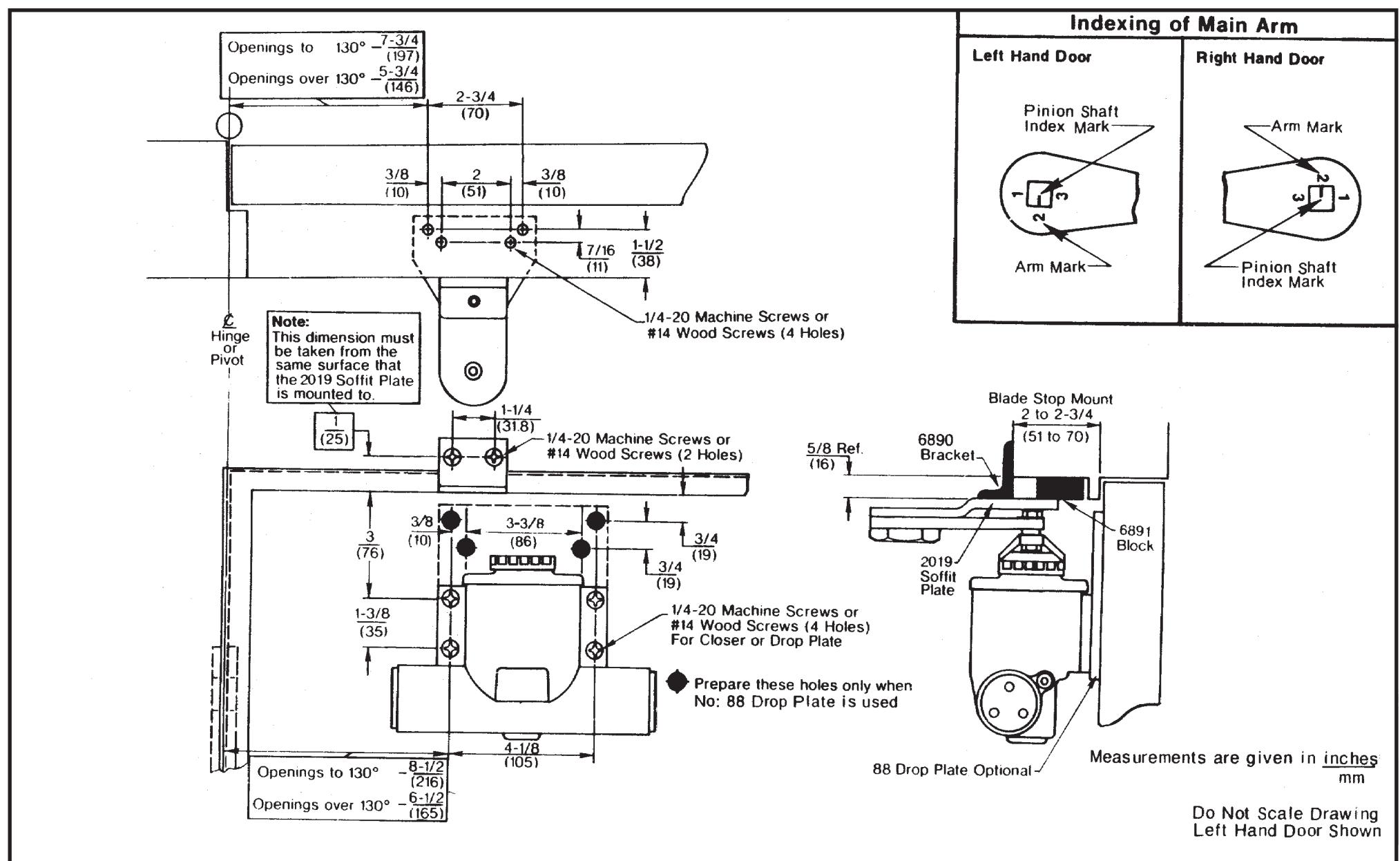

Series 78-B/F-(PRA or PHA) Door Closers With 6890 Support Bracket & 6891 Spacer Block Non Hold-Open or Hold-Open Parallel Rigid Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D or 78-E/F

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7349-0255

REV DATE 12/21

Approved 2022-05-02
