Norton Rixson 78B, F Series Door Closer, 78-B, F-PRA, 78-B, F-PHA with 2019L Bracket, Parallel Rigid Arm, Non-Hold …_7349-0253

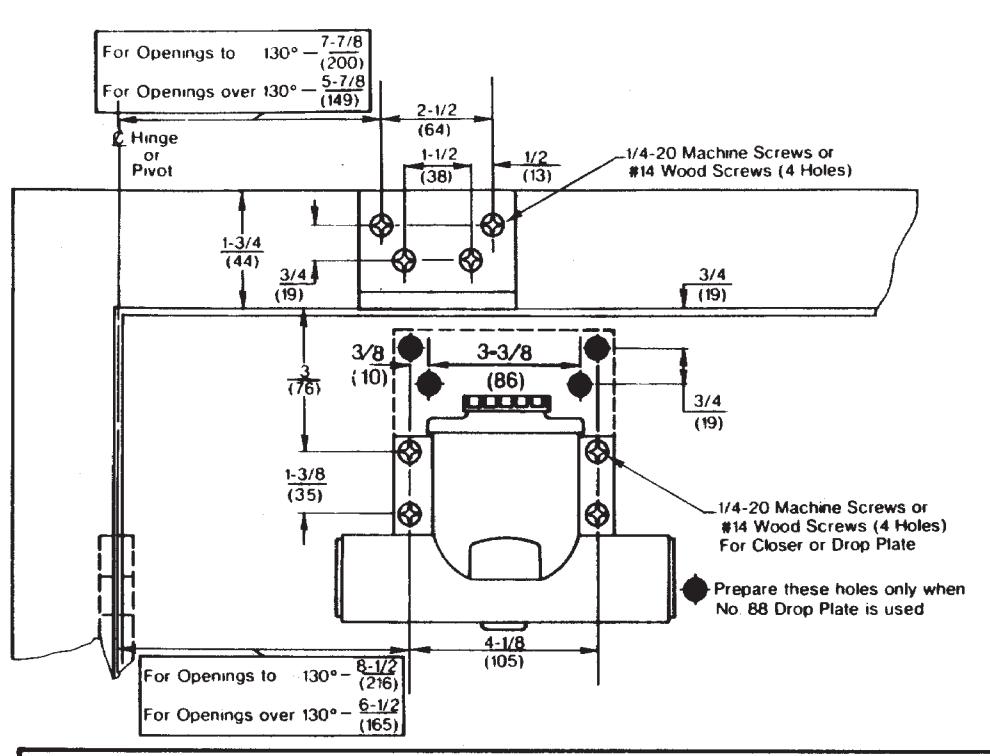

Measurements are given in inches

Do Not Scale Drawing Left Hand Door Shown

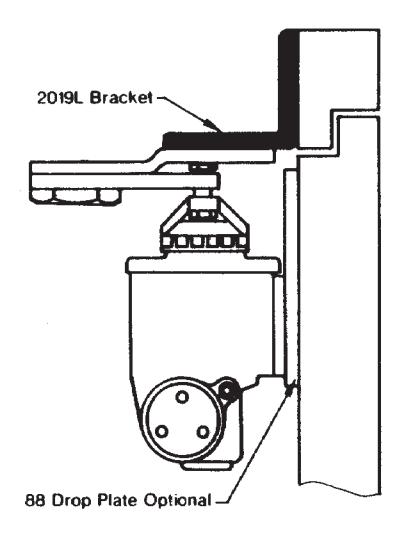

Series 78-B/F-(PRA or PHA) Door Closers With 2019L Bracket Non Hold-Open or Hold-Open Parallel Rigid Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D or 78-E/F

RIXSON

ASSA ABLOY

TEMPLATE NUMBER

TEV DATE 12/21

7349-0253
