Norton Rixson 78B, F Series Door Closer, 78-B, F-PHA with 2022 Bracket, Parallel Arm, Hold Open, with or without N…_7349-0208

Measurements are given in inches mm

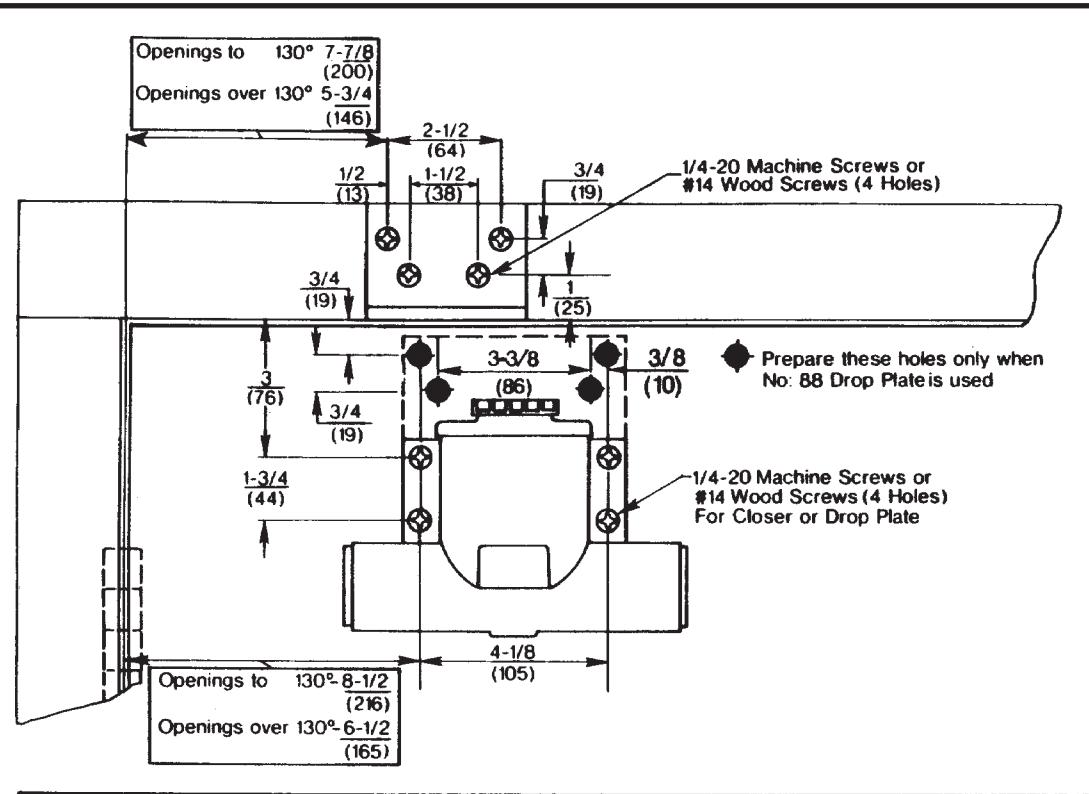

Do Not Scale Drawing Left Hand Door Shown

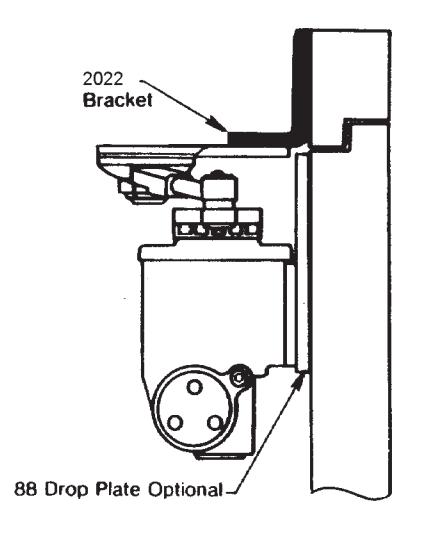

Series 78-B/F-PHA Door Closers with 2022 Bracket Hold-Open Parallel Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D-PHA or 78-E/F-PHA

RIXSON

ASSA ABLOY

TEMPLATE NUMBER

REV DATE

7349-0208 3

12/21
