Norton Rixson 78B, F Series Door Closer, 78-B, F-PA with 2022 Angle Bracket & 1618 Soffit Plate, Parallel Arm, Non…_7349-0205

Notes:

• Do not scale drawing.
• Left hand door shown.
• Dimensions are in inches (mm).

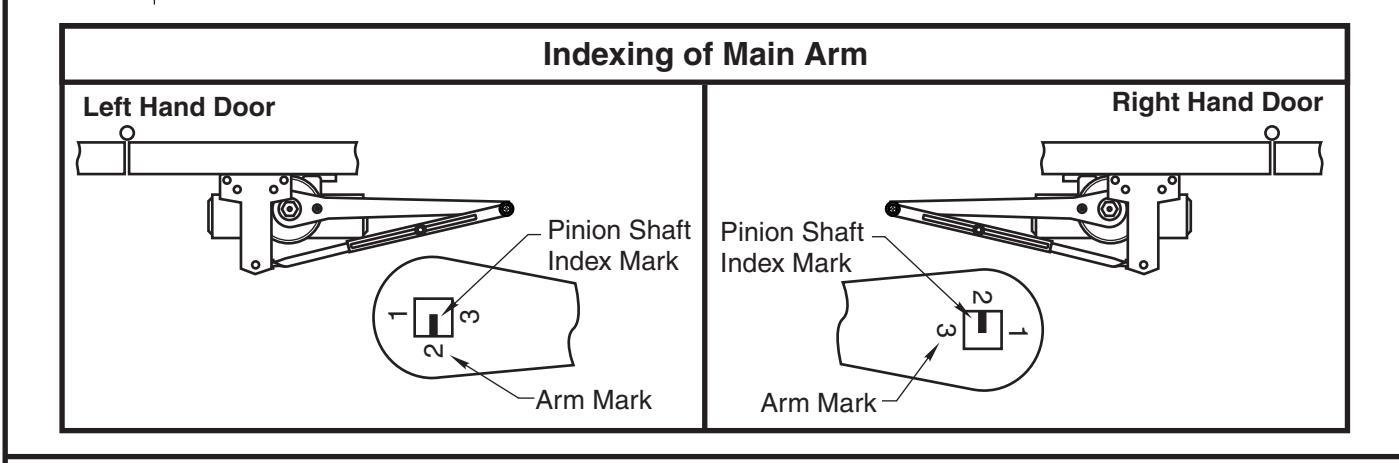

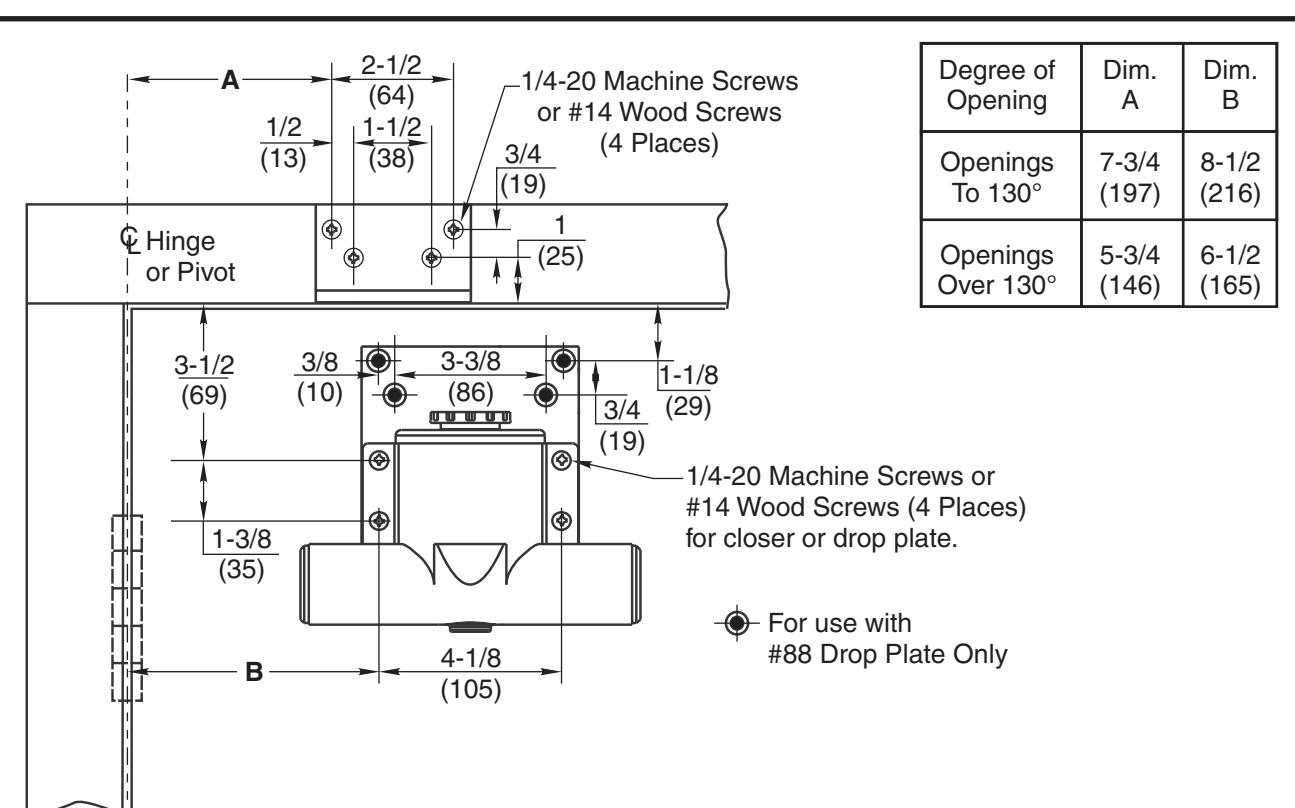

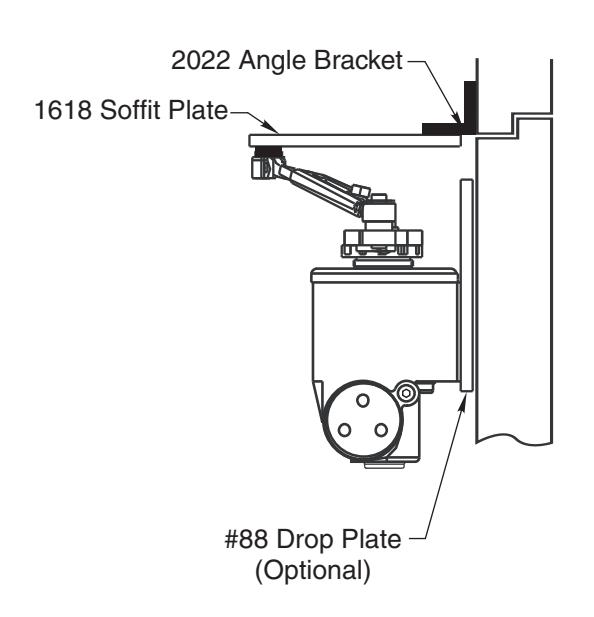

Series 78-B/F-PA Door Closers with 2022 Angle Bracket & 1618 Soffit Plate Non-Hold Open Parallel Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D-PA or 78-E/F-PA

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER

REV DATE 12 /

7349-0205

Approved 2022-05-02

12/21
