Norton Rixson 78B, F Series Door Closer, 78-B, F-PA with 2018B Soffit Plate, Parallel Arm, Non-Hold Open, with or …_7349-0203

(105)

Notes:

Do not scale drawing.

• Left hand door shown.

• Dimensions are in inches (mm).

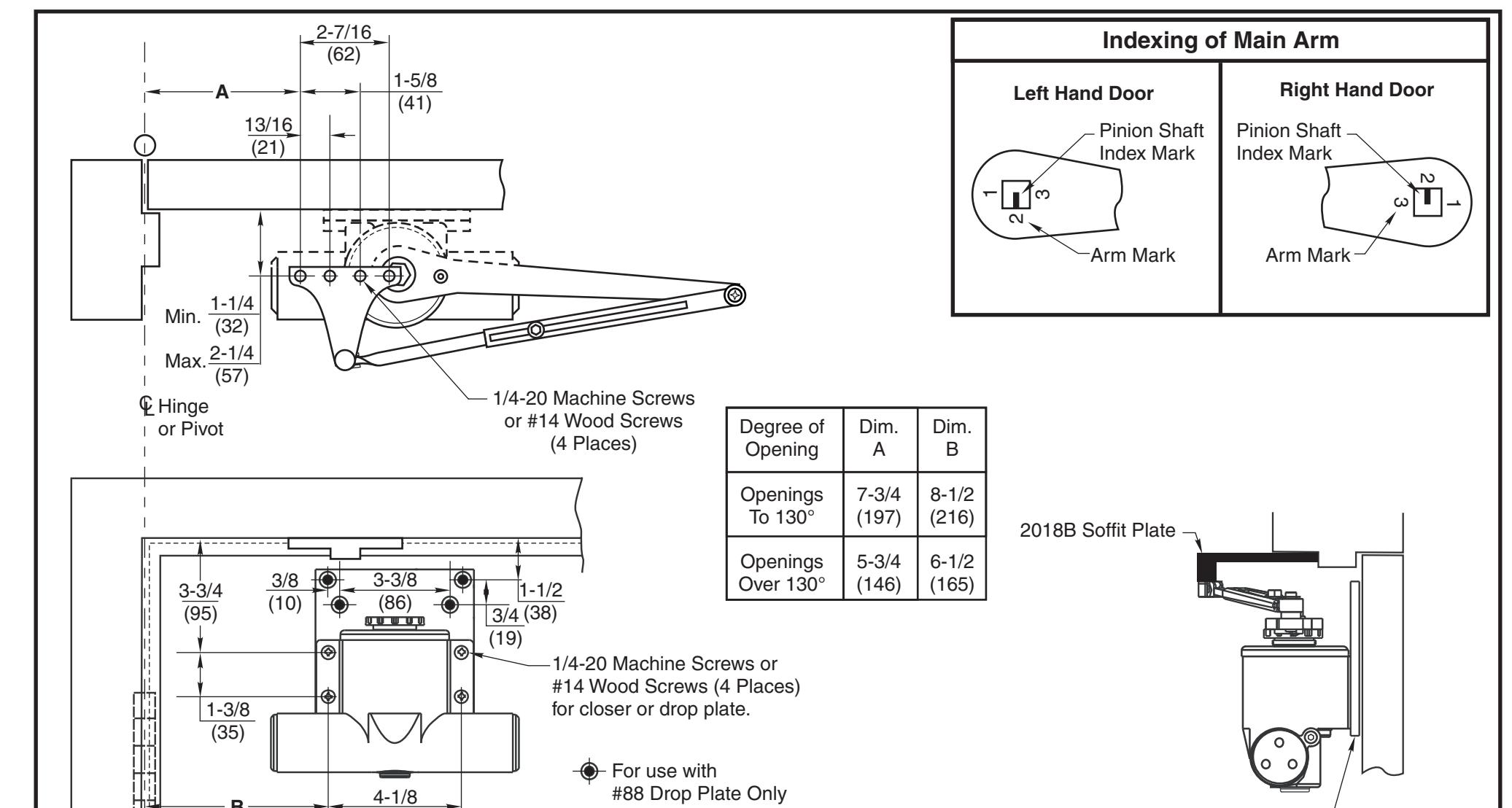

Series 78-B/F-PA Door Closers with 2018B Soffit Plate Non-Hold Open Parallel Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D-PA or 78-E/F-PA

NORTON

ASSA ABLOY

TEMPLATE NUMBER 7349-0203

#88 Drop Plate

(Optional)
