Norton Rixson 78B, F Series Door Closer, 78-B, F-PA with 2018 Soffit Bracket, Parallel Arm, Non-Hold Open, with or…_7349-0202

Left Hand Door Pinion Shaft Index Mark Arm Mark Pinion Shaft Index Mark

NOTE:

• 1. Do not scale drawing.
• 2. Measurements are given in inches (mm).
• 3. Left Hand door shown.

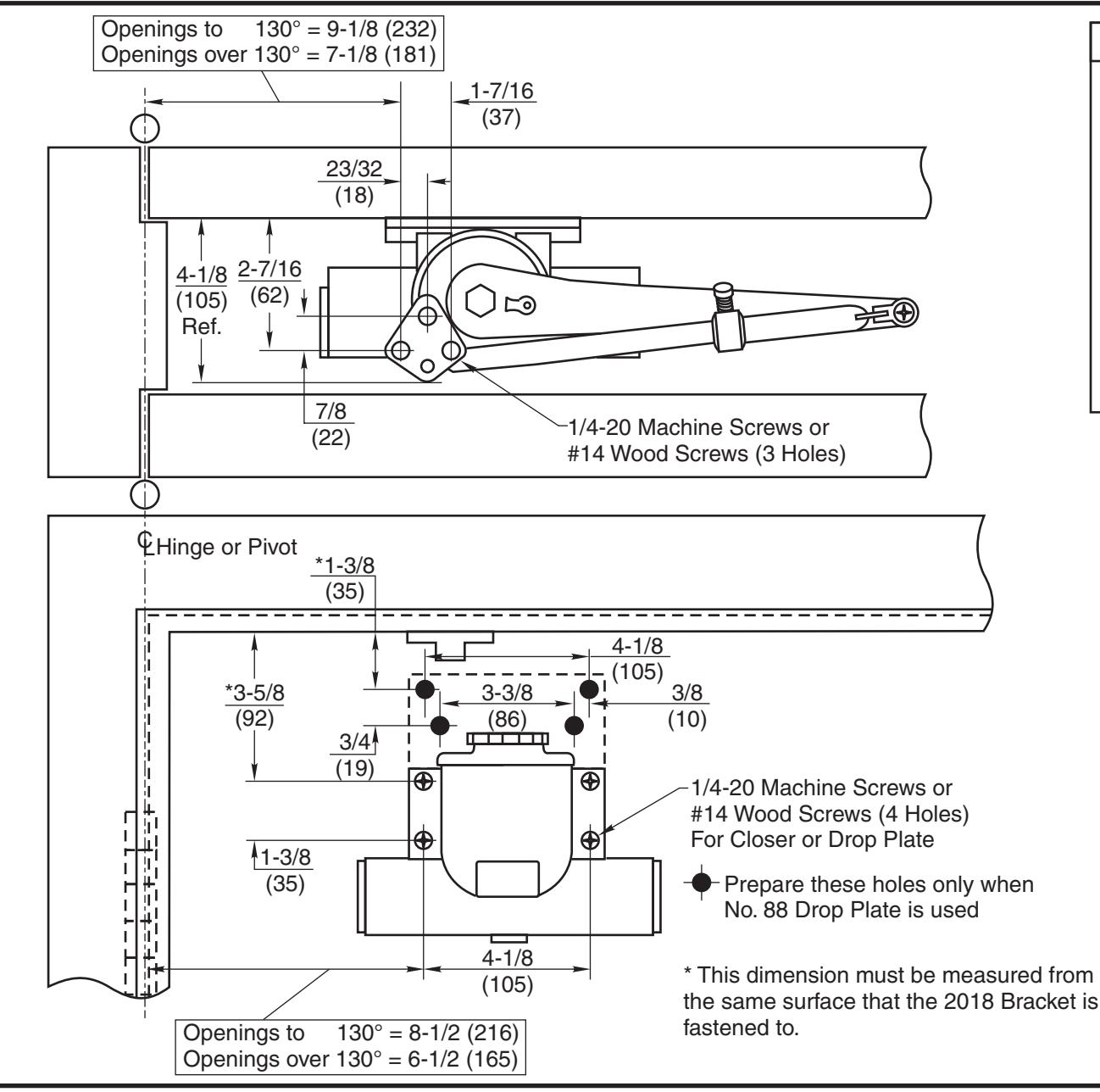

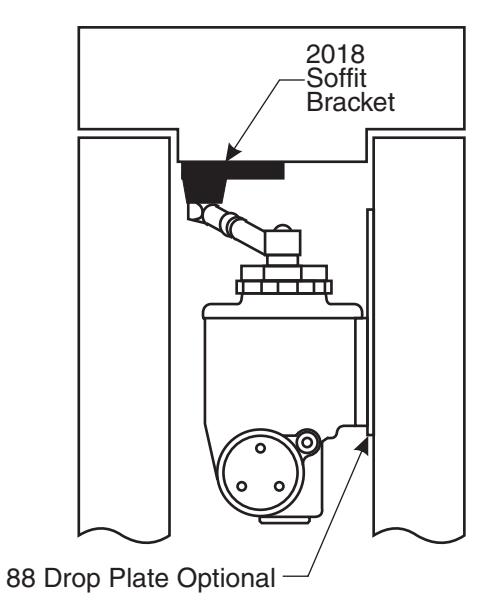

78-B/F-PA Series Door Closers with 2018 Soffit Bracket Non-Hold Open Parallel Arm Installation With or Without No. 88 Drop Plate Closer Sizes 78-B/D-PA or 78-E/F-PA

ASSA ABLOY

TEMPLATE NUMBER

REV DATE 12/21

7349-0202

Approved 2022-05-02
