Norton Rixson 7700PT Series Electromechanical Closer, 7705PTDO, 7705PTO, P7705PTDO, P7705PTO, Master or Support …_80-9377-0716-020

Open the original PDF document

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury.These instructions should be followed to avoid the possibility of misapplication or misadjustment.

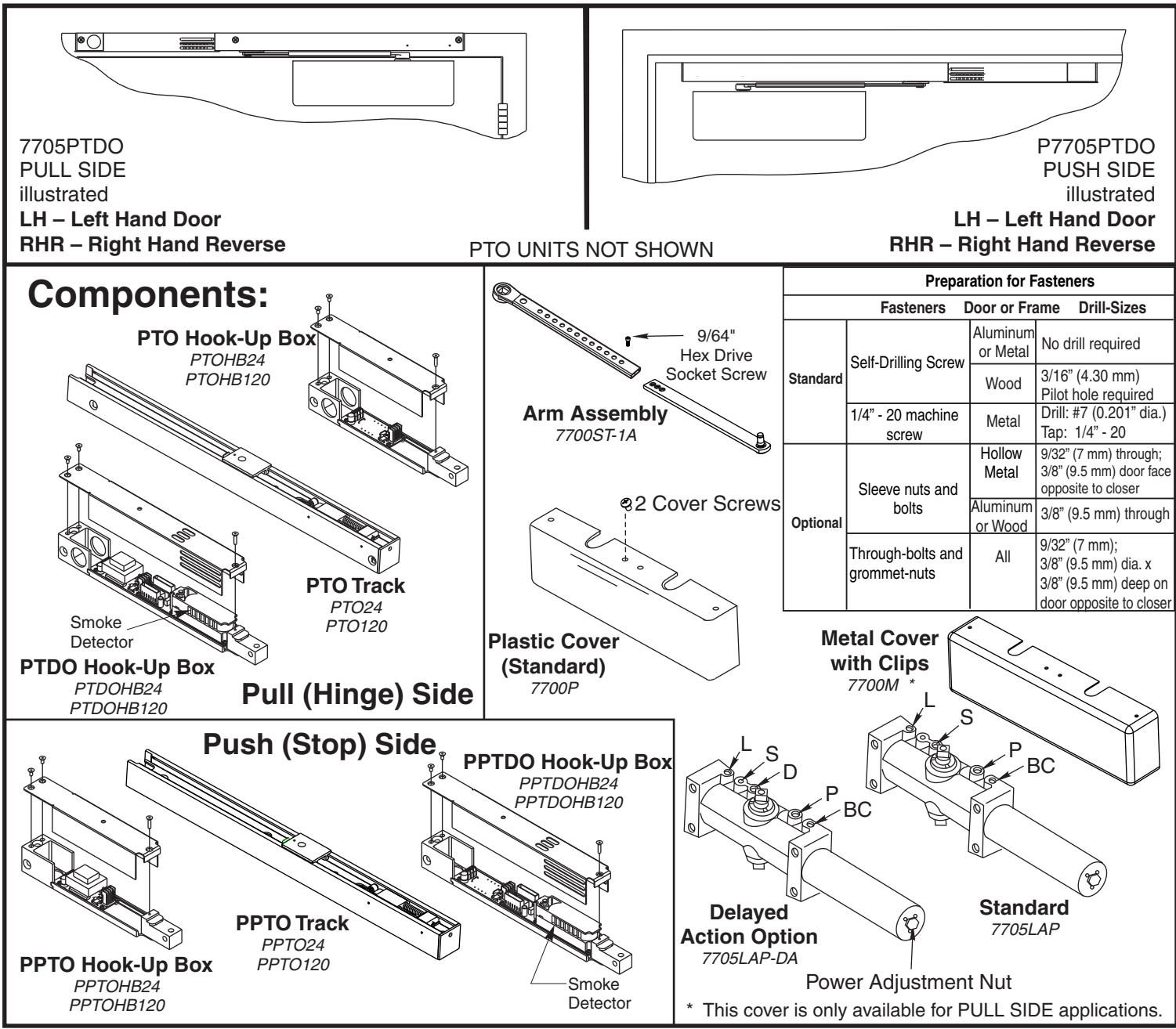

CAUTION Power T ® rack Series Primary Unit – PTDO (with detector) Support Unit - PTO (without detector) Models

Hinge (Pull) Side of Door Application Stop (Push) Side of Door Application

7705PTDO 7705PTO P7705PTDO P7705PTO

NOTES: ® - For wiring of PTDO models, see "PowerTrack " "Wiring Instructions" No. 80-9342-0902-021

- When used with a PTDO model, PTO unit must be a 24V unit

Installation Instructions

Combination Door Closer-Holder and Releasing Device WITH and WITHOUT Integral Smoke Detector

NOTE:

! For special applications a separate door and frame preparation template is packed with these instructions.
! Use this instruction sheet for installation sequence and closer adjustments only.
! Use of an auxiliary door stop is always recommended.
! Unit must be mounted on interior of building in dry environment, maximum humidity of 95%.
! See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.

Copyright © 2009, 2014, 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.

Experience a safer and more open world

7705PTO/7705PTDO Series

Norton <sup>®</sup>

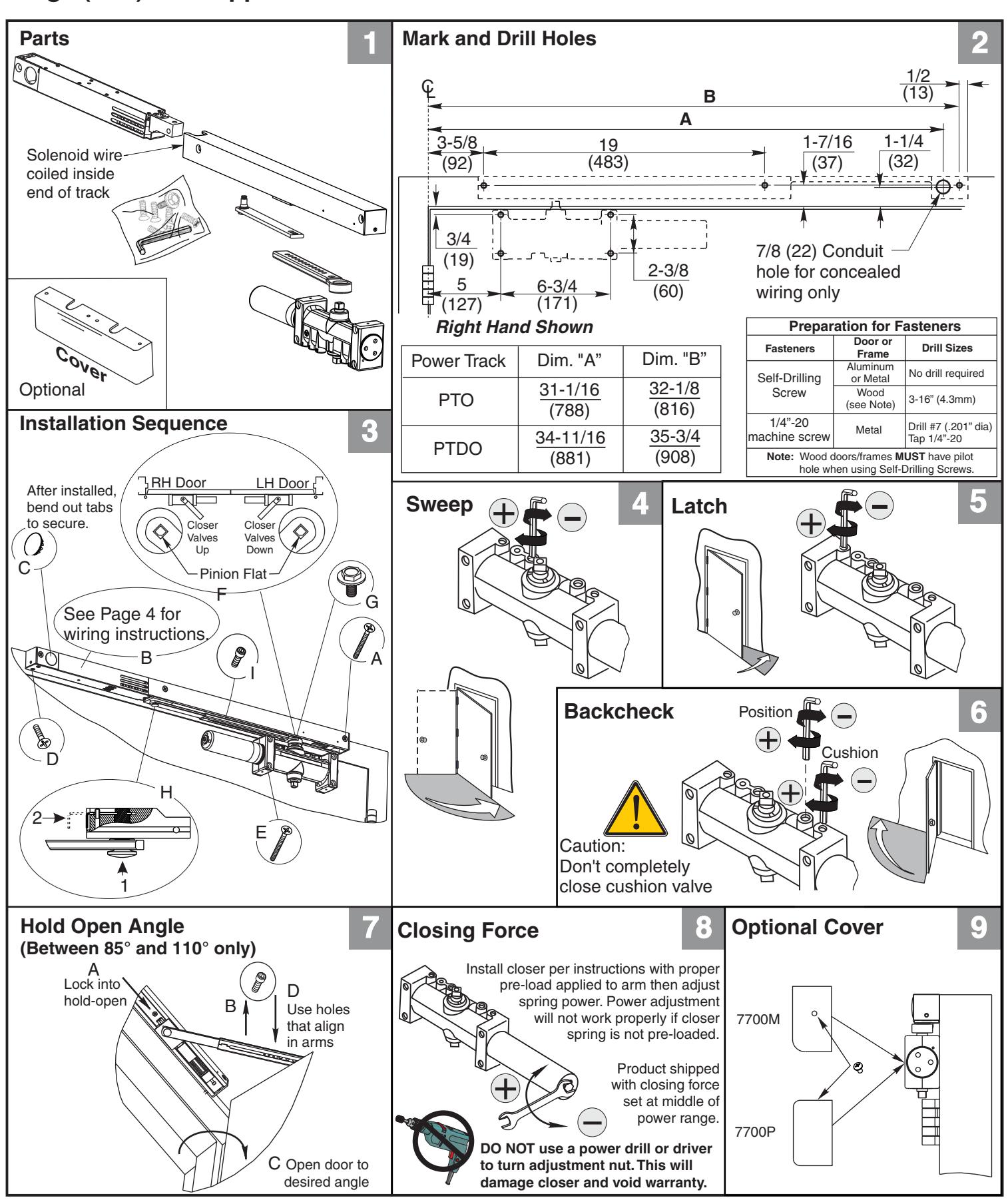

Hinge (Pull) Side Application

ASSA ABLOY

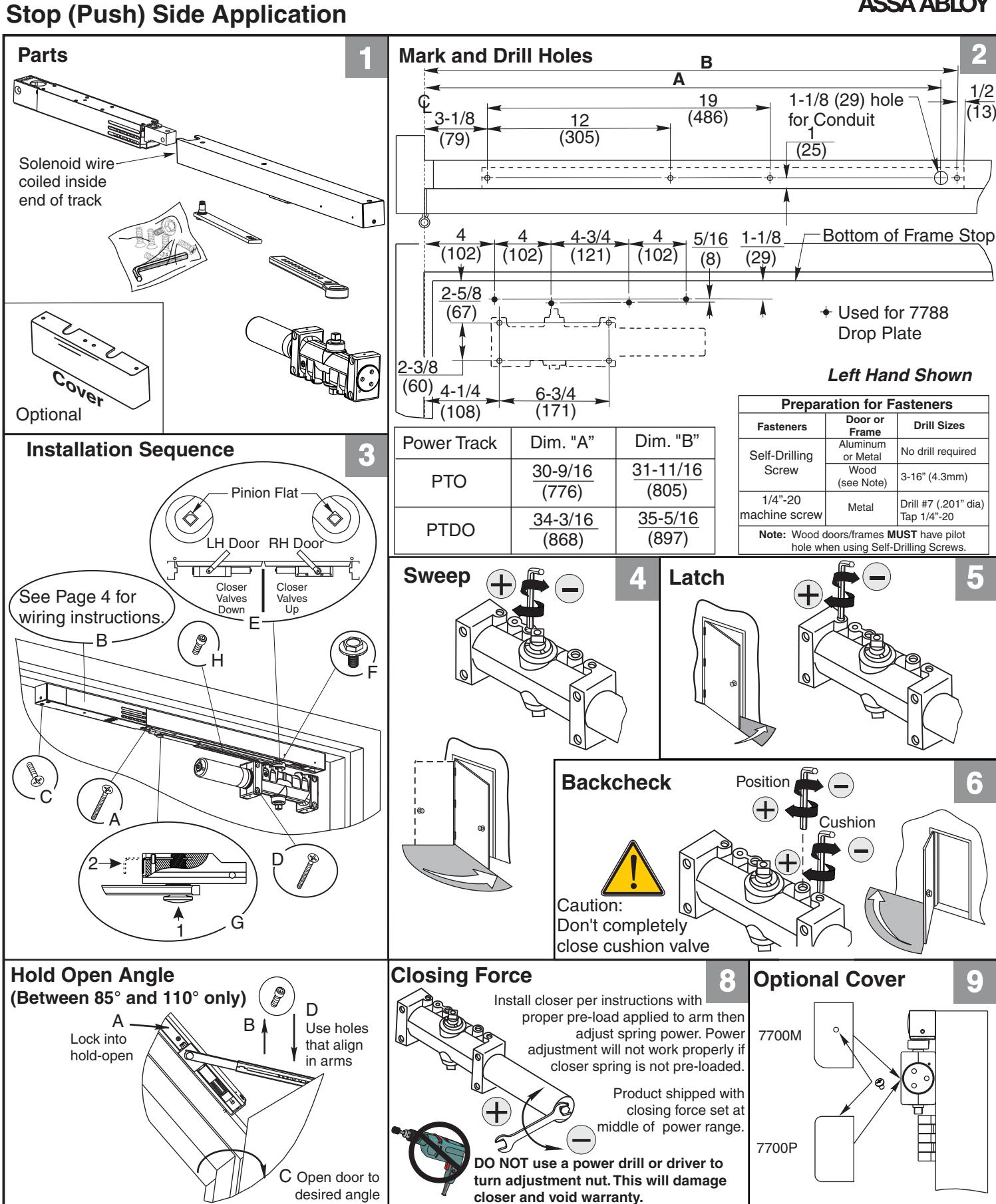

Experience a safer and more open world

P7705PTO/P7705PTDO Series

Norton <sup>®</sup>

ASSA ABLOY

Experience a safer and more open world

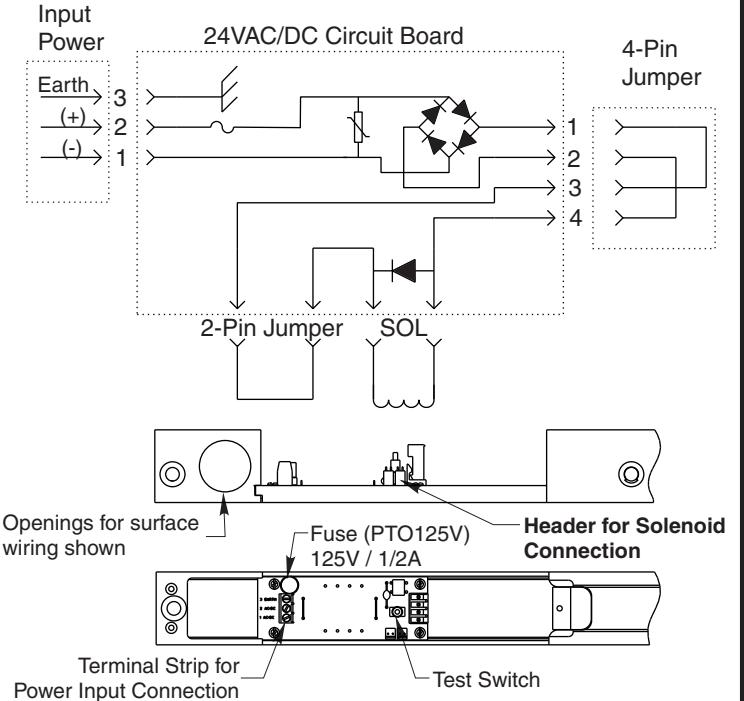

PTO Support Unit Wiring Diagram (24VAC/DC Input)

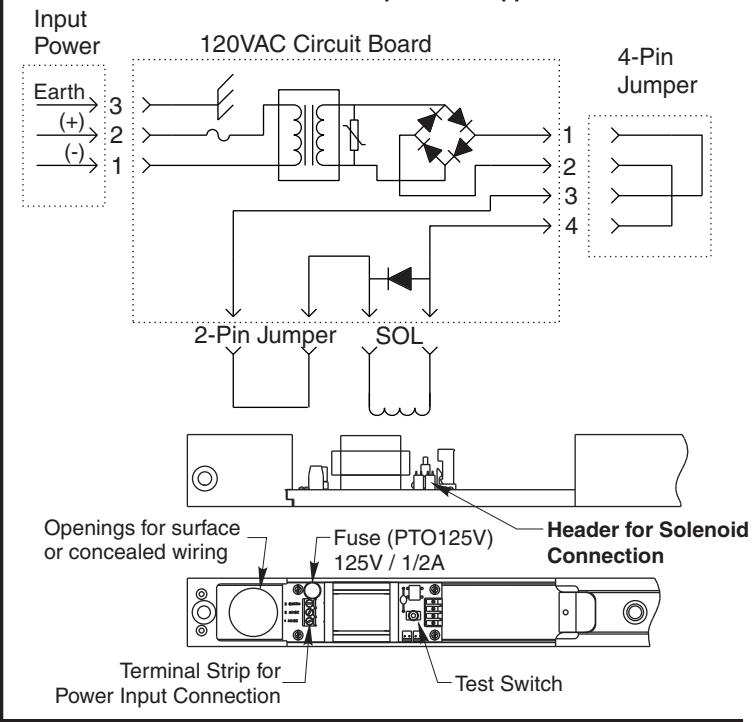

PTO Support Unit Wiring Diagram (120VAC Input)

Do not use a 120VAC PTO unit when power is supplied from a PTDO unit

For PTDO Models:

Refer to Wiring Instructions No. 80-9372-0904-000 (08-20) for making wiring connections.

ELECTRICAL DATA
	120VAC	24VAC	24VDC	Detector
Voltage	120V 132V Max 102V Min	24V 26.4V Max 20.4V Min	24V 26.4V Max 20.4V Min	24V 26.4V Max 20.4V Min
Current	.036 Amps	.059 Amps	.074 Amps	0.034 Amps

NOTES:

Maximum wire size is 14AWG.
All wiring and connections use standard wiring practice conforming with local wiring codes.

IMPORTANT:

Remove solenoid wire from end of track before installing track to frame. Do not pinch or crimp wire. Once track and hook-up box are installed, solenoid wire must be plugged into Header on circuit board shown above.

After making all wiring connections:

•Turn power to unit "ON". (On Primary (PTDO) unit only, red LED should illuminate once every 15 sec.).
Track's hold open force is preset at the factory.
•Open door to hold-open position. Manually pull door out of hold-open and release...door should close. If arm does not release from holdopen, increase the releasing force by turning the screw accessible thru the end cap of the track using the 9/64" hex wrench provided.

Again, open door to the hold-open position. Depress "Test Switch" button on the hook-up board (accessible through cover)...door should close. If arm does not release, see previous step.

Installation of Cover:

•Plastic Cover (7700P): Slide cover insert into the un-used cutout in cover. Install cover using screws provided.
•Metal Cover (7700M): Fasten cover to mounting clips with screws provided.

Norton Technical Product Support:

Monroe, NC 28112 USA

Phone: 800.438.1951 ext: 6030 TechSupport.Norton@assaabloy.com

nortondoorcontrols.com
