Non Hold Open Regular, Top Jamb and Parallel Arm Installation Instructions
Multi Size 1-6
7580 J7580
ASSA ABLOY
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadiustment.
• With or without suffix "DA" (Delayed Action) closing.
• With or without suffix "M" with metal Cover.
Note:
The closing force for series 7500 door closer is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When this series of door closer is installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, it may not have adequate closing force to reliably close and latch the door. Power adjustments charted on pages 3,4 and 5 are recommended where possible, to ensure proper door control.
For Special Applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

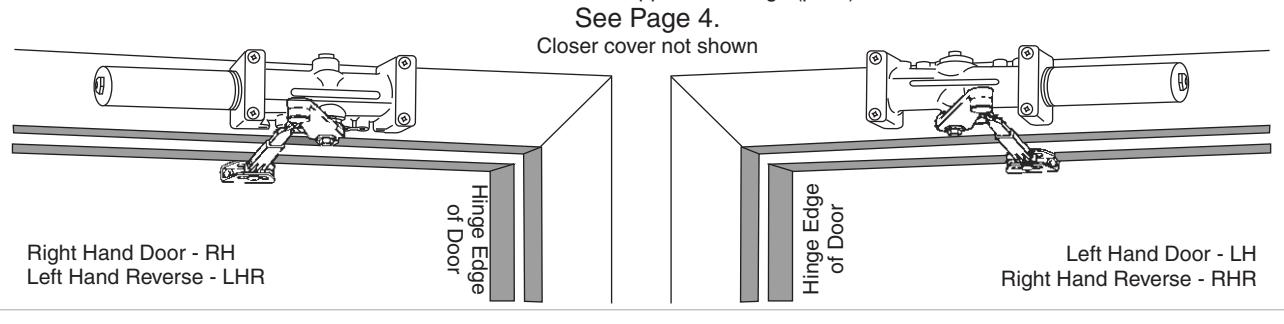

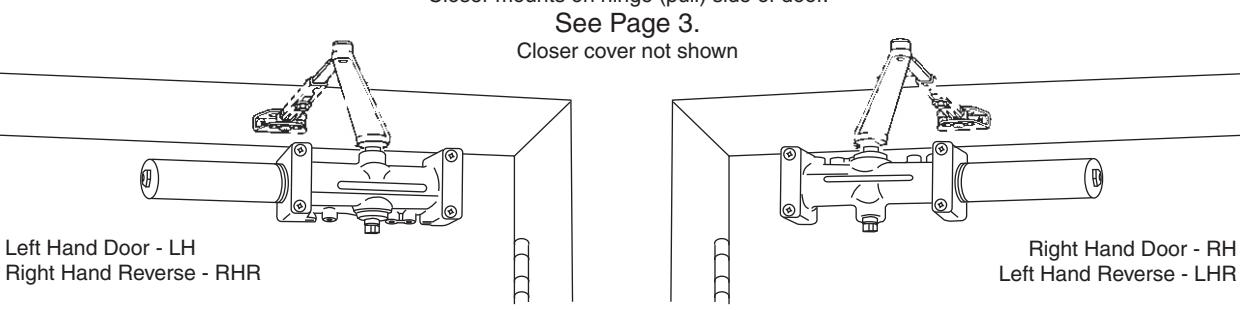

Regular Arm Installation
Closer mounts on hinge (pull) side of door.
Top Jamb Installation
Closer mounts on frame face on opposite to hinge (push) side of door.

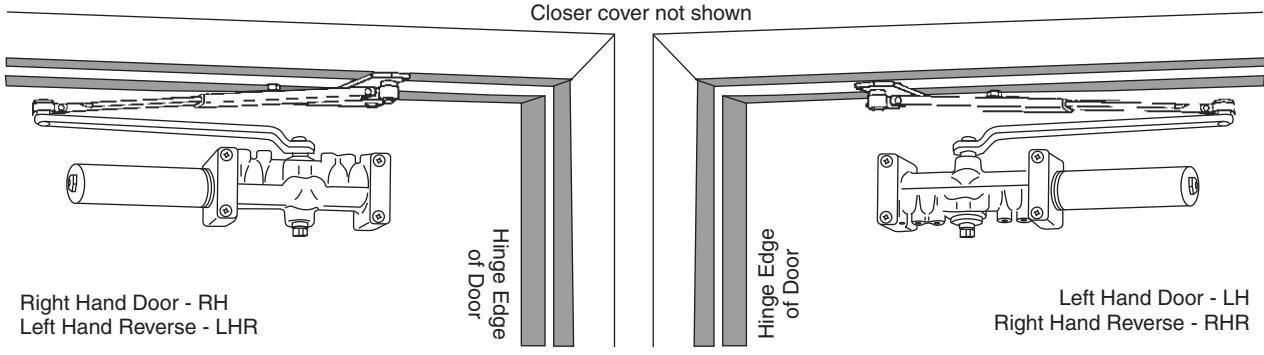

Parallel Arm Installation
Closer mounts on opposite to hinge (push) side of door.
Components: Figure 1 Plastic Cover (Standard) Metal Cover (Optional) 2 Cover Screws 2 Cover Screws Screw Pack No. 1618 Soffit Plate For Parallel Arm Only Main Arm Shoe and Adjusting Rod Forearm Screw Closer Assembly Power Adjustment Nut Standard Closer (4 Valves) DA Option Closer (5 Valves) Tube
| Preparation for Fasteners | Figure 2 | ||
|---|---|---|---|
| Fasteners | Door or Frame | Drill-Sizes | |
| Standard | Self-Drilling Screw |
Aluminum
or Metal |
No drill required |
|
Wood
(see Note) |
3/16" (4.30 mm) | ||
| 1/4" - 20 machine screw | Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
|
| Optional | Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
|
Aluminum
or Wood |
3/8" (9.5 mm) through | ||
|
Through-bolts and
grommet-nuts |
All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
|
Note: Wood doors/frames. Pilot hole must be drilled when using Self-Drilling Screws.
Always consult door/frame manufacturer for fastener compatibility with the material of their door/frame.

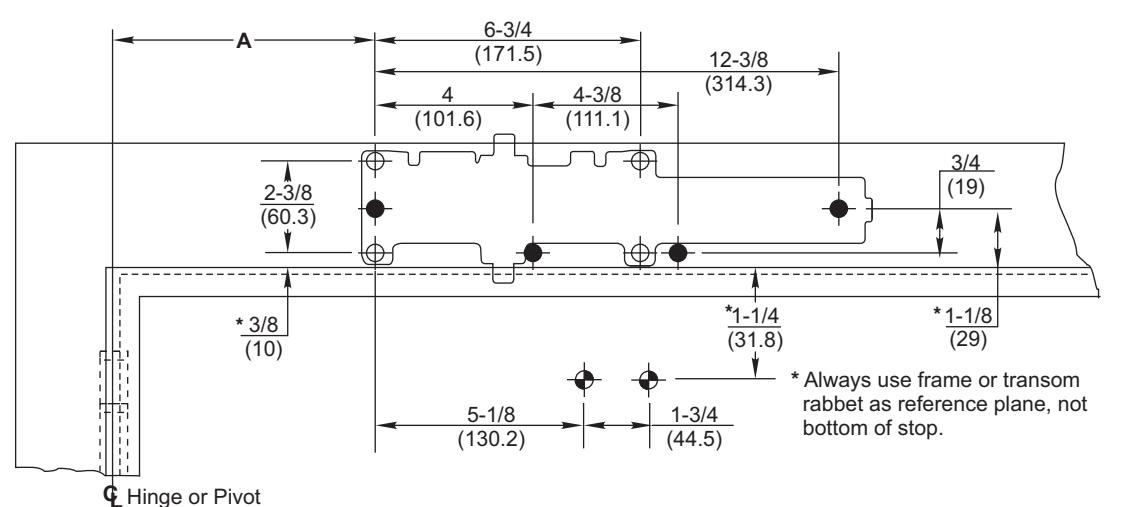

Do Not Scale Drawing
Right Hand Door Shown
Dimensions are in inches (mm).
7786 Backplate Mounting Hole Only
| Dimension A | ||
|---|---|---|
| Opening | inches | mm |
| To 100° | 7-5/8 | 194 |
| 101° to 120° | 6-5/8 | 168 |
| 121° to 150° | 4-5/8 | 117 |
| 151° to 180° | 4-1/8 | 105 |
Installation Sequence

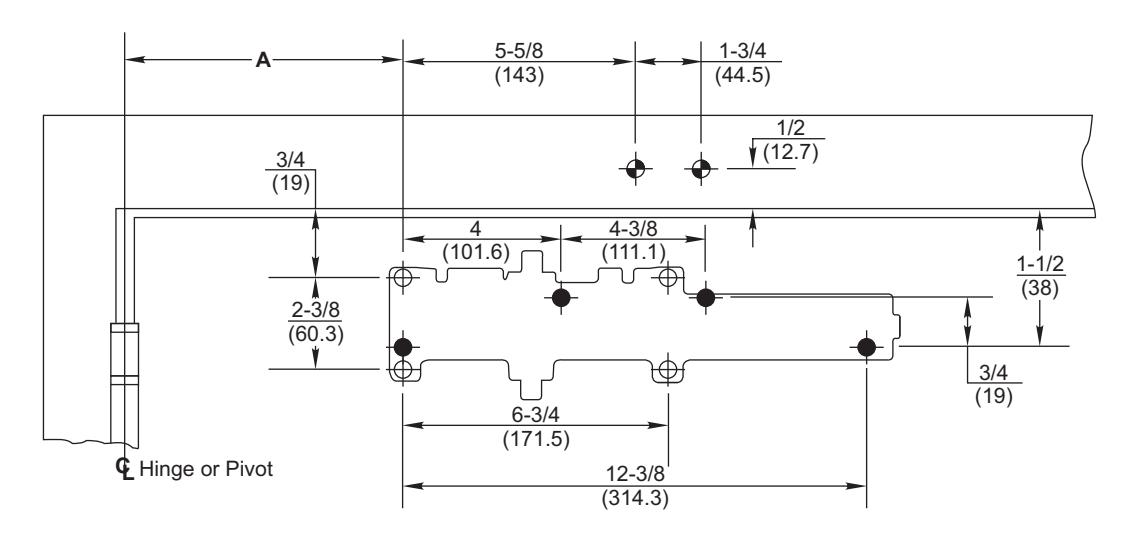

Select angle of opening and use dimensions shown in template and chart to locate 4 holes on door for closer body (or 4 holes for optional 7786 backplate) and 2 holes on frame face for arm shoe.
For applications that are different from above, a separate template will be supplied for door and frame preparation.
- Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
- Fasten optional 7786 backplate to door, only if it is required for the door conditions.
- Install closer body with tube end away from hinge, with valves: Down for Left Hand door UP for Right Hand door.
- Fasten arm shoe (with adjusting rod) Figure 1, Page 2 to frame face.

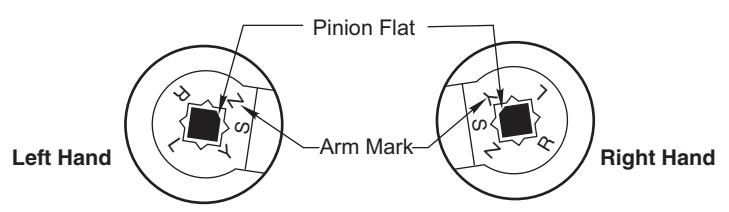

- Install main arm onto closer pinion shaft, aligning arm mark "S" with the one flat corner of the square shaft "Pinion Flat", see illustration at right. Secure with hex washerhead main arm screw.

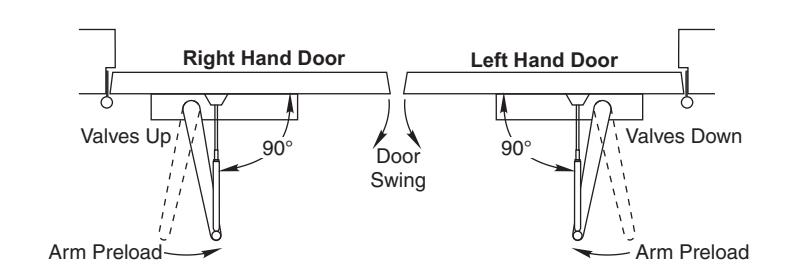

Remove forearm screw from adjusting rod on frame and open door slightly to slide adjusting rod into slide unit. Close door and rotate arm away from hinge until adjusting rod and slide unit are perpendicular (at a 90° angle) to door. Install and tighten forearm screw.
Make closer adjustments, if required, using information below and on Page 6, then install closer cover.
| Power Adjustment Chart | |||
|---|---|---|---|
|
Maximum
Interior Door Size inches / (mm) |
Maximum
Exterior Door Size inches / (mm) |
Turns
from Zero |
|
| 32 / (813) | 28 / (711) | 5 | |
| 36 / (914) | 34 / (864) | 8-1/2 | |
| 42 / (1067) | 38 / (965) | 11 | |
| 52 / (1321) | 42 / (1067) | 13-1/2 | |
| 60 / (1524) | 48 / (1219) | 16-1/2 | |
NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

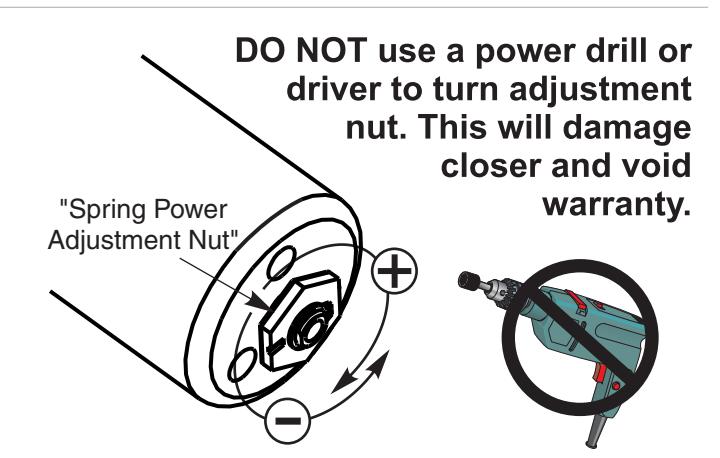

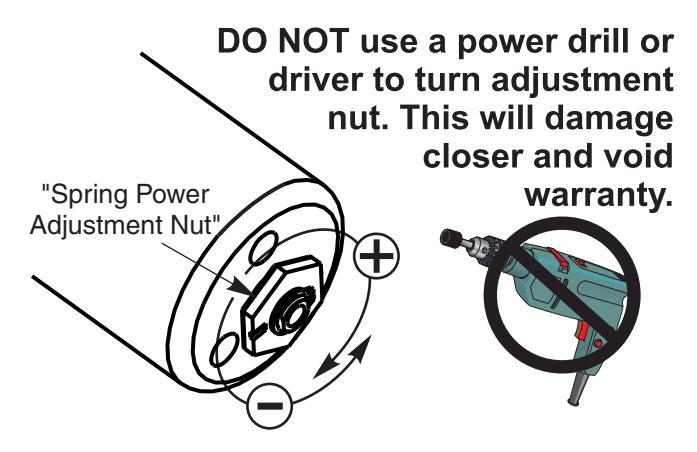

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.
ASSA ABLOY
Do Not Scale Drawing
Left Hand Door Shown
Dimensions are in inches (mm).
7786 Backplate Mounting Hole Only
| Dimension A | ||
|---|---|---|
| Opening | inches | mm |
| To 100° | 7-5/8 | 194 |
| 101° to 120° | 6-5/8 | 168 |
| 121° to 150° | 4-5/8 | 117 |
| 151° to 180° | 4-1/8 | 105 |
Installation Sequence
Select angle of opening and use dimensions shown in template and chart to locate 4 holes — on frame for closer body (or 4 holes — for optional 7786 backplate) and 2 holes — on door for arm shoe.
For applications that are different from above, a separate template will be supplied for door and frame preparation.
- Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
- Fasten optional 7786 backplate to frame, only if it is required for the frame conditions.
- Install closer body with tube end away from hinge, with valves: Up for Left Hand door Down for Right Hand door.

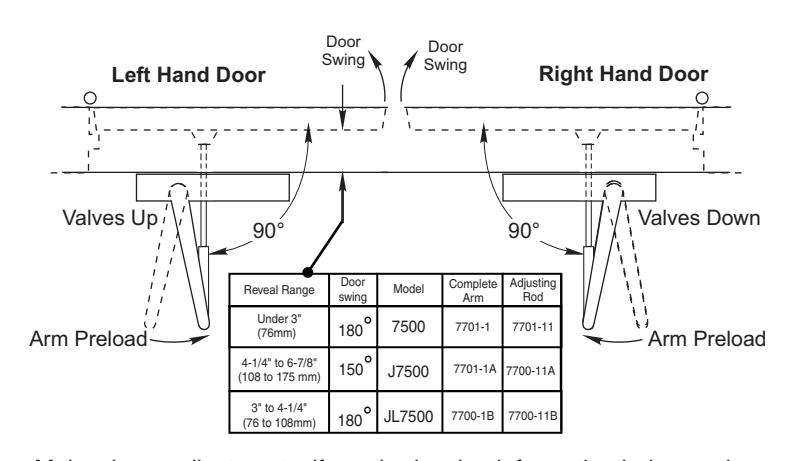

- Fasten arm shoe (with adjusting rod) Figure 1, Page 2 to door face. Note that a longer adjusting rod or different arm might be required for your frame conditions, see illustration with "Reveal Range" chart to the right.
- Install main arm onto closer pinion shaft, aligning arm mark "S" with the one flat corner of the square shaft, "Pinion Flat", see illustration at right. Secure with hex washerhead main arm screw.
Remove forearm screw from adjusting rod on door and open door slightly to slide adjusting rod into slide unit. Close door and rotate arm away from hinge until adjusting rod and slide unit are perpendicular (at a 90° angle) to door. Install and tighten forearm screw.
Make closer adjustments, if required, using information below and on Page 6, then install closer cover.
| Power Adjustment Chart | |||
|---|---|---|---|
|
Maximum
Interior Door Size inches / (mm) |
Maximum
Exterior Door Size inches / (mm) |
Turns
from Zero |
|
| 32 / (813) | 28 / (711) | 5 | |
| 36 / (914) | 34 / (864) | 8-1/2 | |
| 42 / (1067) | 38 / (965) | 11 | |
| 52 / (1321) | 42 / (1067) | 13-1/2 | |
| 60 / (1524) | 48 / (1219) | 16-1/2 | |
NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

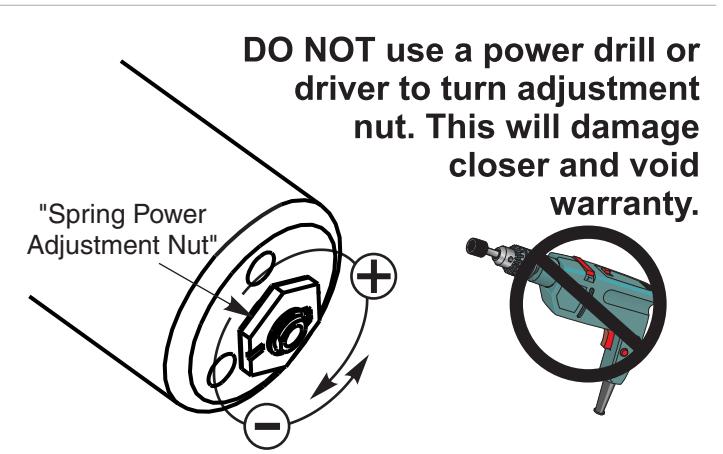

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.
ASSA ABLOY
Installation Sequence

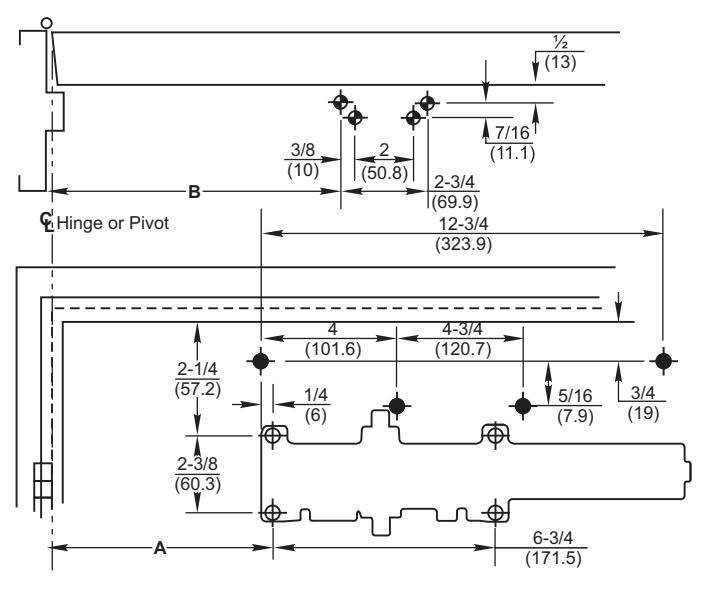

Select angle of opening and use dimensions shown in template and chart to locate 4 holes on door for closer body (or 4 holes for optional 7788 dropplate) and 4 holes on underside of frame for soffit plate.
For applications that are different from above, a separate template will be supplied for door and frame preparation.
- Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
- Fasten optional 7788 backplate to door, only if it is required for the door conditions.
- Install closer body with tube end away from hinge, with valves: Down for Left Hand door UP for Right Hand door.
- Fasten soffit plate to frame.
- Install adjusting rod onto soffit plate and secure with screw and washer assembly from screw pack.
- Install main arm onto closer pinion shaft using illustration below. The one flat corner of the square shaft "Pinion Flat", must be aligned with the corner mark on arm:
| Dimension A | Dimens | ion B | ||
|---|---|---|---|---|
| Opening | inches | mm | inches | mm |
| To 100° | 8-3/4 | 222 | 9-1/4 | 235 |
| 101° to 130° | 7-3/4 | 197 | 8-1/4 | 210 |
| 131° to 150° | 6-3/4 | 171 | 7-1/4 | 184 |
| 151° to 180° | 5-3/4 | 146 | 6-1/4 | 159 |
Do Not Scale Drawing Left Hand Door Shown Dimensions are in inches (mm).
7788 Dropplate Mounting Hole Only
Arm mark "Y" for Right Hand door Arm mark "Z" for Left Hand door This requires that the pinion shaft be rotated approximately 50 degrees to get correct alignment.
· Secure with hex washerhead main arm screw.

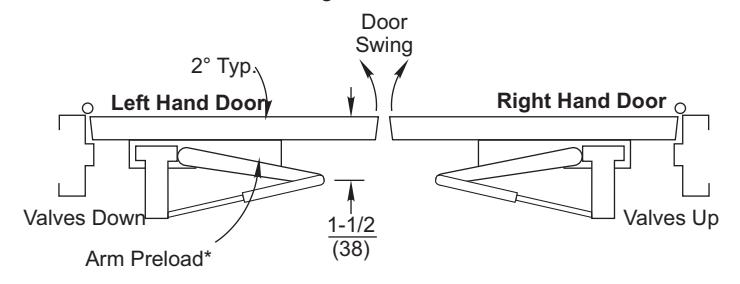

Remove forearm screw from adjusting rod on frame and open door slightly to slide adjusting rod into slide unit. Close door and pull arm away from door face so elbow is 1-1/2" (38mm) off of door face. Reinstall and tighten forearm screw in rod.
• Make closer adjustments, if required, using information below and on Page 6, then install closer cover.
| Power Adjustment Chart | |||
|---|---|---|---|
|
Maximum
Interior Door Size inches / (mm) |
Maximum
Exterior Door Size inches / (mm) |
Turns
from Zero |
|
| 30 / (762) | 26 / (660) | 7 | |
| 34 / (864) | 30 / (762) | 9 | |
| 38 / (965) | 36 / (914) | 12-1/2 | |
| 48 / (1219) | 42 / (1067) | 14-1/2 | |
| 54 / (1372) | 48 / (1219) | 16-1/2 | |
NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.
Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.
The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.
ASSA ABLOY
Adjustments

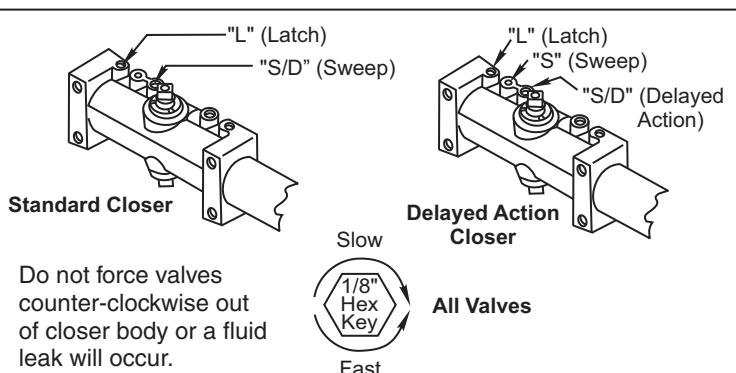

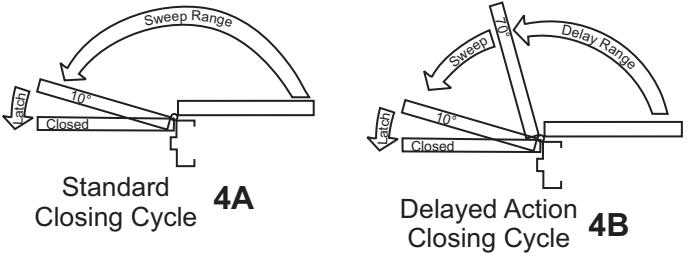

Closing Speed Controls (Figure 4A or 4B and 5.)
- Valve "S/D" Controls Sweep Range on Standard closer (or Delayed Range on Delayed Action closer).
- · Valve "L" Controls Latch Range.
- Valve "S" Controls Sweep only on Delayed Action closer.
Closing Power Control
Figure 3
Set closer to desired size. For recommended sizes, refer to the Power Adjustment Chart on pages 3,4,& 5. Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise. DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty.
Closing Speed Controls
Adjust Closing Speed Time to between 3-7 seconds from 90°. Use of door by handicapped, elderly or small children may require greater closing time.
Closing Speed Controls
Figure 5

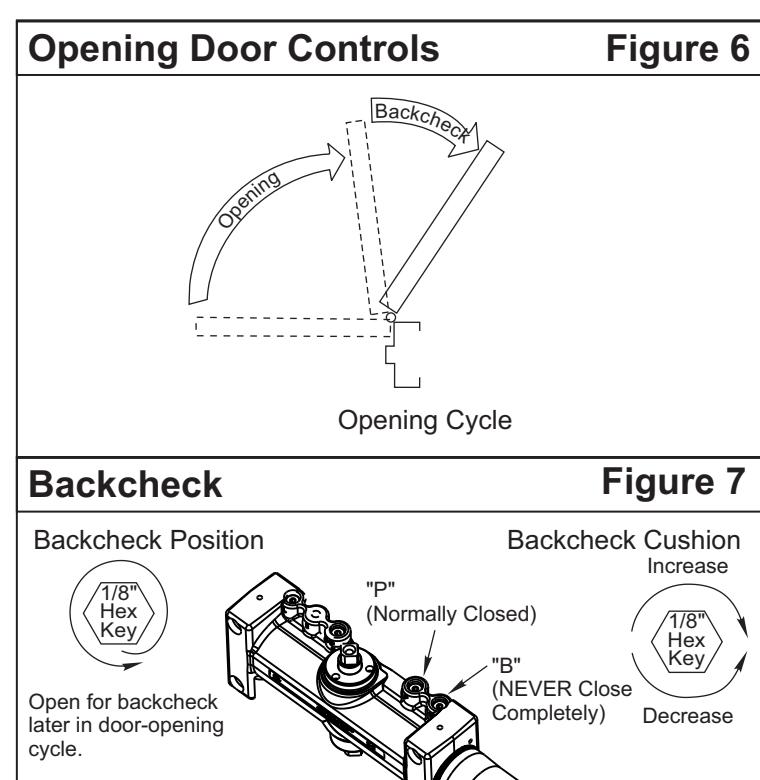

Opening Door Control (Figure 6.)
Do not force valves counter-clockwise out
of closer body or a fluid

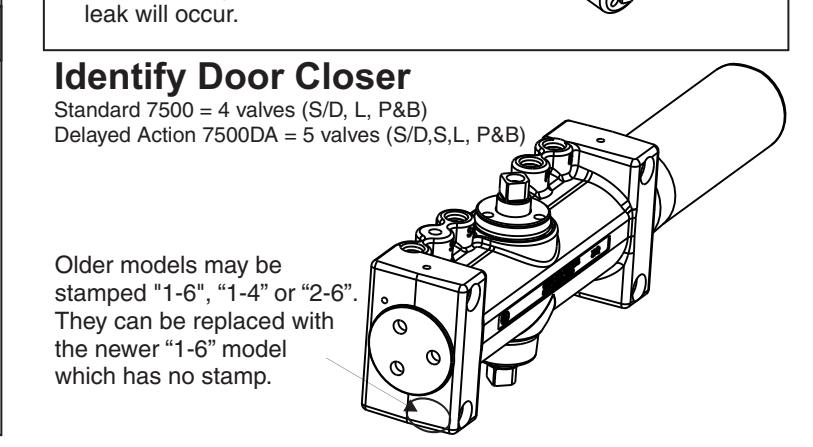

- Backcheck ("B") valve controls the hydraulic resistance to door opening. NEVER close this valve completely – it is not to provide a positive stop.
- Backcheck position ("P") valve controls the door angle where backcheck cushioning starts. Valve normally closed.
Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
