| Preparation for Fasteners | ||||||||
|---|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |||||
| Sex-nuts and bolts |
Closer
Drop plate |
Hollow Metal | 9/32" (7.00mm.) through 3/8" (9.50mm.) door face opposite to closer | |||||
| Aluminum or wood | 3/8" (9.50mm.) through | |||||||
|
#14 x 1-1/4" (32mm.)
type "A" S.M. screws |

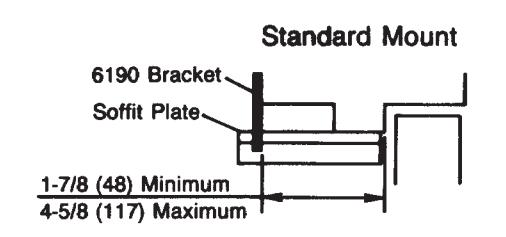

Soffit plate
6190 Bracket |
Wood | 3/16" (4.30mm.) | |||||
| 1/4-20 machine screw | metal | drill: #7 (.201"dia.) tap: 1/4-20 | ||||||
| Through bolts and grommet nuts | All |
9/32" (7.00mm.) through
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep, door face opposite to closer |
||||||
|
Door Opening
Angle |
Dimensions* | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hold Dead Stop | Dead |
Butts and
Offset Pivots |
Center Pivots | ||||||||
| Dimension A | Dimension B | Dimension A | Dimension B | ||||||||
| Inches | mm. | Inches | mm. | Inches | mm. | Inches | mm. | ||||
| 85° | 90° | 101/4 | 260 | 101/2 | 267 | 111/4 | 286 | 111/2 | 292 | ||
| 90° | 95° | 95/8 | 244 | 97/8 | 251 | 101/2 | 267 | 10¾ | 273 | ||
| 95° | 100° | 91/8 | 232 | 93/8 | 238 | 10 | 254 | 101/4 | 260 | ||
| 100° | 105° | 8¾ | 222 | 9 | 229 | 91/2 | 241 | 93/4 | 248 | ||
| 105° | 110° | 83/8 | 213 | 85/8 | 219 | 91/8 | 232 | 93/8 | 238 | ||
| 1 10° | 115° | 8 | 203 | 81/4 | 210 | 83/4 | 222 | 9 | 229 | ||

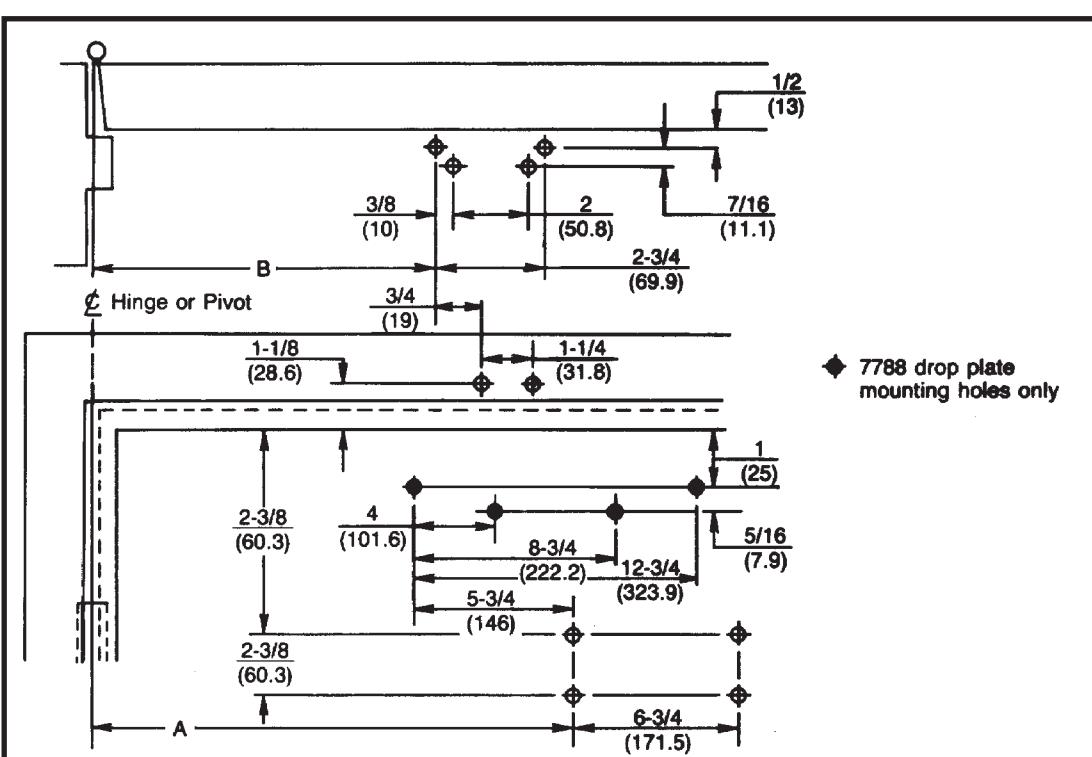

® Unitrol Standard Application Series UNI-7500 & UNI-7700 ® Parallel Arm Installation Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 7788 Drop Plate Doors 28" - 32" (0.70-0.80m) Wide
TEMPLATE NUMBER REV DATE 7377-1351
3 12/21
