| Preparation for Fasteners | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fasteners | Fasteners Application | Drill Sizes | |||||||
| sex nuts and bolts |
closer,
drop plate 2022 bracket |
hollow metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||||
|
aluminum
or wood |
3/8" (9.50mm) through | ||||||||
| through bolts and grommet nuts | optional | all |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer |
||||||
Notes:
- Do not scale drawing.
- All dimensions shown in inches (mm) .
- Left hand door shown.
- Caution: Hollow metal doors require channel or box type reinforcement.
- Series UNI-7500H, UNI-7500BF-H, UNI-7700H door closers are furnished with a hold open arm function and are not permitted to be used on fire door assemblies.
|
Door O
Ang |
۰ - | Dimensions★ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Open Sto | Dead |
Butts and
Offset Pivots |
Center Pivots | |||||||
| Stop | Dimen | sion A | A Dimension B | Dimension A | Dimension B | |||||
| ** | Inches | mm | Inches | mm | Inches | mm | Inches | mm | ||
| 85° | 90° | 12-3/4 | 324 | 13 | 330 | 13-3/4 | 349 | 14 | 356 | |
| 90° | 95° | 12 | 305 | 12-1/4 | 311 | 12-7/8 | 327 | 13-1/8 | 333 | |
| 95° | 100° | 11-1/2 | 292 | 11-3/4 | 298 | 12-1/4 | 311 | 12-1/2 | 318 | |
| 100° | 105° | 10-7/8 | 276 | 11-1/8 | 283 | 11-5/8 | 295 | 11-7/8 | 302 | |
| 105° | 110° | 10-1/2 | 267 | 10-3/4 | 273 | 11-1/8 | 283 | 11-3/8 | 289 | |
| 110° | 115° | 10 | 254 | 10-1/4 | 260 | 10-3/4 | 273 | 11 | 279 | |

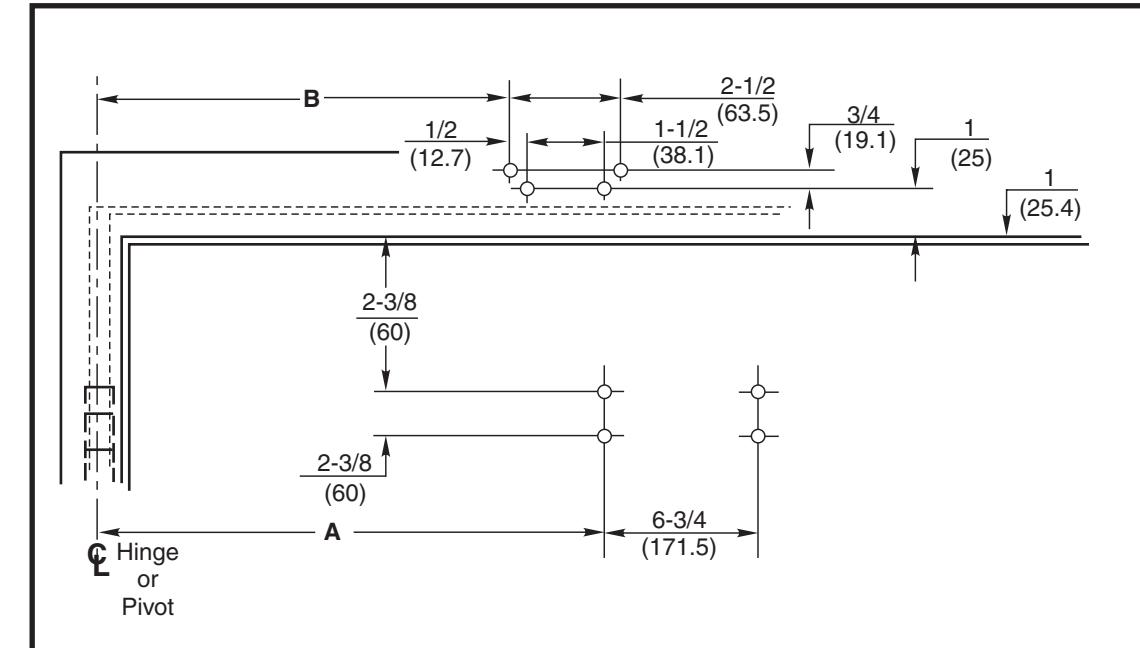

- ★ "A" and "B" dimensions measured from centerline of hinge or pivot.
- ★★ Door must be free to swing up to 5° beyond hold open position.
Unitrol® with 2022 Bracket Series UNI-7500, UNI-7700 or Series UNI-7500H, UNI-7700H Doors 33"-41" (0.85-1.00m) Wide
Parallel Arm Installation Template — Flush Partitions Stop Only or Stop and Hold Open Unitrol® Door Closer
ASSA ABLOY
ASSA ADLUT
7377-1355
TEMPLATE NUMBER
V DATE 12/21
