Norton Rixson 7500 Series Door Closer,UNI-J7500(H),UNI-J7700(H) with 7786 Backplate,Unitrol Top Jamb,Non-Hold Op…_7377-1401
Open the original PDF document
View PDF
| Preparation for | or Fastene | Figure 6. | ||
|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |
| Sex-nuts and bolts | Arm-foot | Hollow Metal |
9/32" (7.00mm.) through
3/8" (9.50mm.) door face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm.) through | |||
|
#14 x·1-1/4" (32mm.)
type "A" S.M. screws |
7786 closer-
backplate |
Wood | 3/16" (4.30mm.) | |
| 1/4-20 machine screw | 1 | Metal | drill: #7 (.201"dia.) tap: 1/4-20 | |
| Through bolts and grommet nuts | Optional | All |
9/32" (7.00mm.) through
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep, door face opposite to closer |
|
|

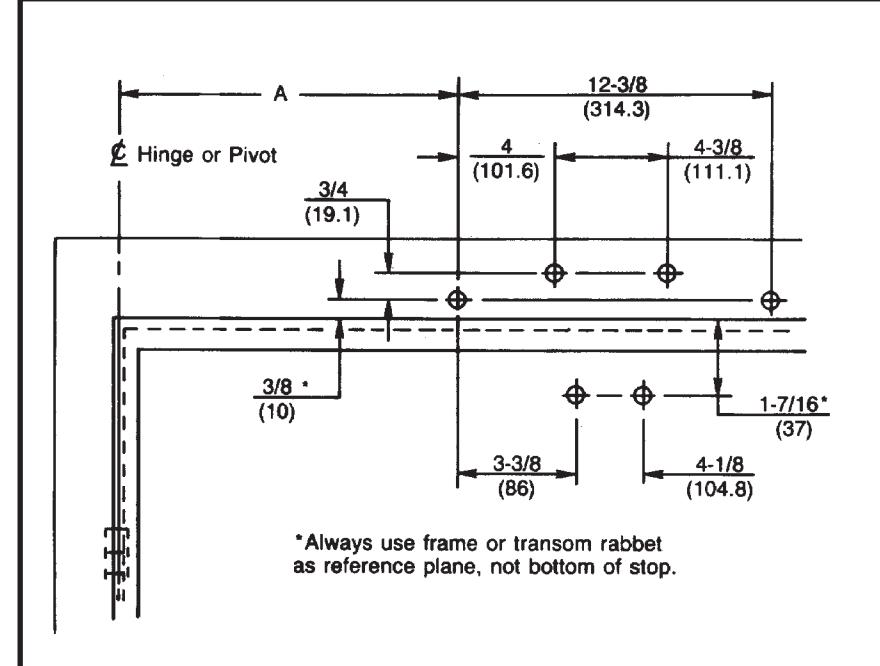

Door Opening
Angle |
Dimensions | |||||
|---|---|---|---|---|---|---|
|
Hold
Open |
Dead
Stop |
Butts
Offset |
Center Pivots | |||
| Dimension A | Dimension A | |||||
| Inches | mm. | Inches | mm. | |||
| 85° | 90° | 9¾ | 248 | 101/4 | 260 | |
| 90° | 95° | 91/8 | 232 | 95% | 244 | |
| 95° | 100° | 81/2 | 216 | 91/8 | 232 | |
| 100° | 105° | 8 | 203 | 85% | 219 | |
| 105° | 110° | 73/4 | 197 | 81/8 | 206 | |
| 110° | 115° | 73/8 | 187 | 77/8 | 200 | |

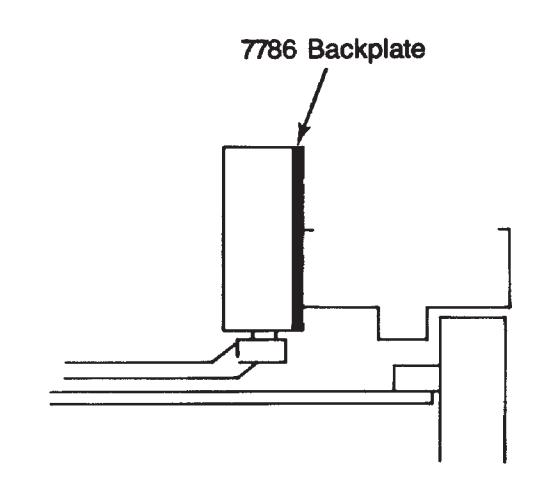

® Unitrol Standard Application Series UNI-J7500 & UNI-J7700 (7786 Backplate)
Top Jamb Installation Template ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer
NORTON RIXSON
TEMPLATE NUMBER REV DATE 7377-1401
3 12/21
Approved 2022-02-25
