Norton Rixson 7500 Series Door Closer,UNI-7500(H),UNI7700(H) Unitrol Parallel Arm,Non-Hold Open or Hold Open,Bac…_7377-1353
Open the original PDF document
View PDF
| Preparation for Fasteners | ||||||||
|---|---|---|---|---|---|---|---|---|
| Fasteners | Application | Door or Frame | Drill Sizes | |||||
| Sex nuts and bolts |
Closer,
Drop plate |
Hollow Metal |
9/32" (7.00mm.) through
3/8" (9.50mm.) door face opposite to closer |
|||||
| Aluminum or Wood | 3/8" (9.50mm.) through | |||||||
|
#14 x 1-1/4" (32mm.)
type "A" S.M. screws |
Soffit-plate
6190 Bracket |
Wood | 3/16" (4.30mm.) | |||||
| 1/4-20 machine screw | Metal | drill: #7 (.201"dia.) tap: 1/4-20 | ||||||
| Through bolts and Optional grommet nuts | All |
9/32" (7.00mm.) through
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep, door face opposite to closer |
||||||
|
Door Opening
Angle |
Dimensions* | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hold Dead Open Stop | Dead |
Butts and
Offset Pivots |
Center Pivots | ||||||||
| Dimension A | Dimension B | Dimension A | Dimension B | ||||||||
| Inches | mm. | Inches | mm. | Inches | mm. | Inches | mm. | ||||
| 85° | 90° | 147/8 | 378 | 151/8 | 384 | 151/8 | 403 | 161/8 | 410 | ||
| 90° | 95° | 14 | 356 | 141/4 | 362 | 15 | 381 | 151/4 | 387 | ||
| 95° | 100° | 133/8 | 340 | 135/8 | 346 | 141/4 | 362 | 141/2 | 368 | ||
| 100° | 105° | 12¾ | 324 | 13 | 330 | 135/8 | 346 | 137/8 | 352 | ||
| 105° | 110° | 121/4 | 311 | 121/2 | 318 | 13 | 330 | 131/4 | 337 | ||
| 110° | 115° | 11% | 302 | 121/8 | 308 | 121/2 | 318 | 123/4 | 324 | ||

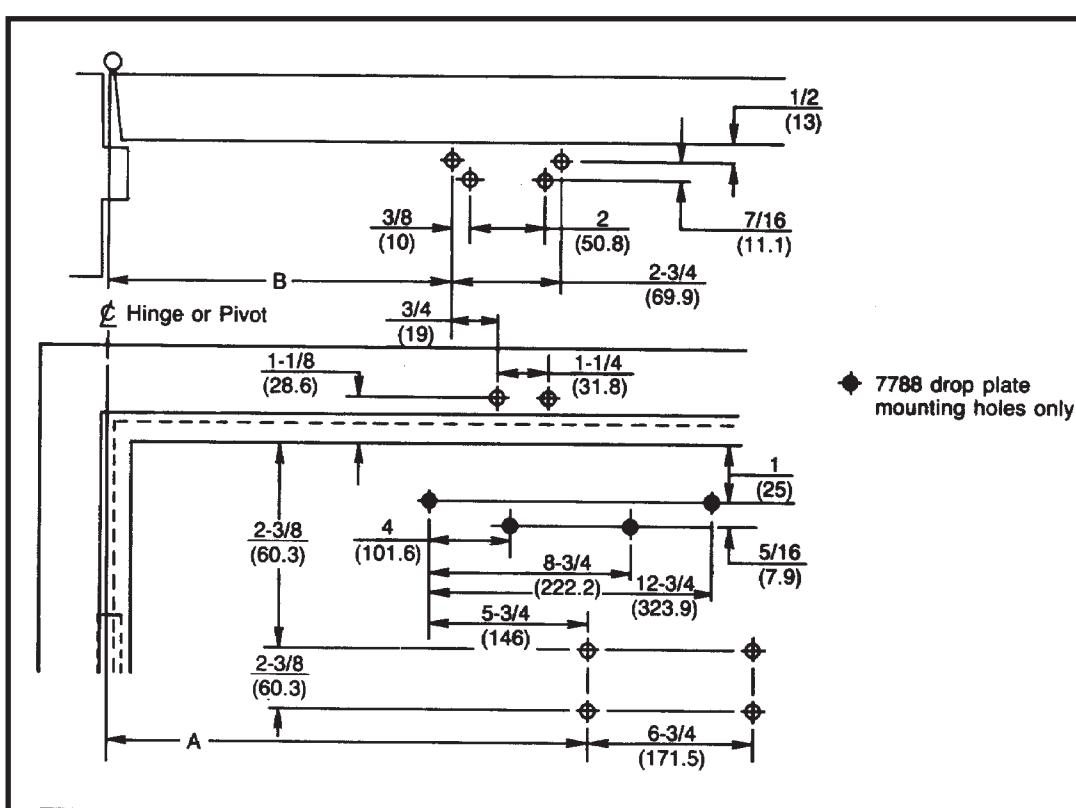

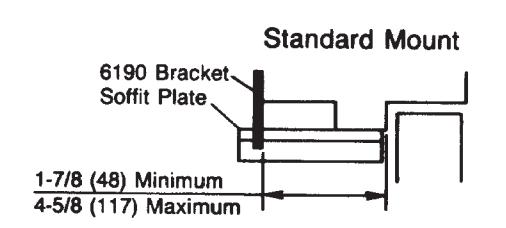

® Unitrol Standard Application Series UNI-7500 & UNI-7700 ® Parallel Arm Installation Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 7788 Drop Plate or 6190 Bracket Doors 42" - 48" (1.05-1.20m) Wide
NORTON RIXSON
TEMPLATE NUMBER REV DATE 7377-1353 3 12/21
Approved 2022-02-25
