Norton Rixson 7500 Series Door Closer,UNI-7500(H),UNI-7700(H),Unitrol ParallelArm with 6191 Reinforcing Kit,Non-…_7377-1357
Open the original PDF document
View PDF
| ] | Angle | ||
|---|---|---|---|
| | | Hold | Dead | |
| 1 | Open | Stop | Dim |
| ** | Inch | ||
| 85° | 90° | 101 | |
| ] | 90° | 95° | 95 |
| 95° | 100° | 91, | |
| 100° | 105° | 83 | |
| 1 | 105° | 110° | 83 |
| 1 | 110° | 115° | 8 |
| * ''A' | and " | B'' dii | |

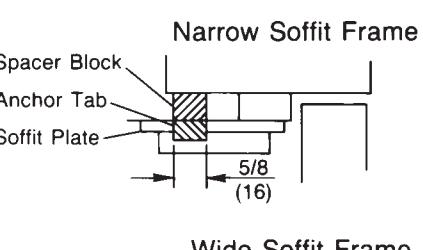

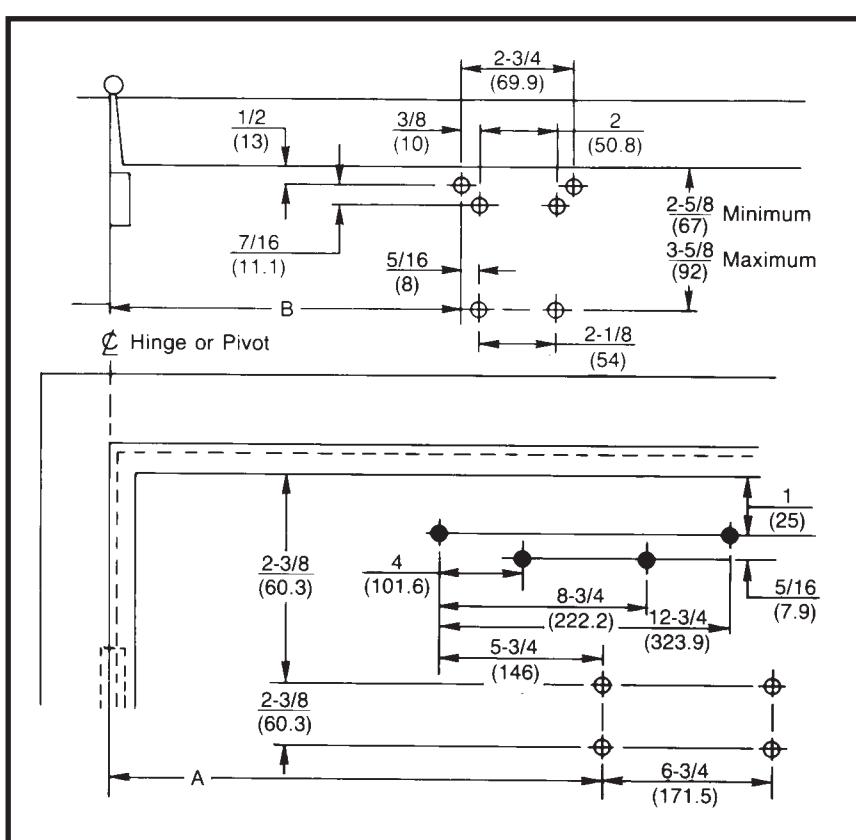

® Unitrol with 6191 Reinforcing Kit Series UNI-7500 & UNI-7700 Doors 28"-32" (0.70-0.80m) Wide
Parallel Arm Installation Template ® Stop Only or Hold Open Unitrol Backcheck or Delayed Action Door Closer With or Without 7788 Drop Plate
NORTON RIXSON
TEMPLATE NUMBER REV DATE 7377-1357
3 12/21
Approved 2022-02-25
