Norton Rixson 7500 Series Door Closer,UNI-7500(H),UNI-7700(H) Unitrol Parallel Arm w, 2022Bracket,Applications on…_7377-1354
Open the original PDF document
View PDF
| Preparation for Fasteners | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Fasteners Application | Door or Frame | Drill Sizes | |||||||
| sex nuts and bolts |
closer,
drop plate 2022 bracket |
hollow metal |
9/32" (7.00mm) through
3/8" (9.50mm) door face opposite to closer |
||||||
|
aluminum
or wood |
3/8" (9.50mm) through | ||||||||
| through bolts and grommet nuts | optional | all |
9/32" (7.00mm) through
3/8" (9.50mm) dia. x 3/8" (10mm) deep door face opposite to closer |
||||||
Notes:
- · Do not scale drawing.
- All dimensions shown in inches (mm) .
- Left hand door shown.
- Caution: Hollow metal doors require channel or box type reinforcement.
- Series UNI-7500H, UNI-7500BF-H, UNI-7700H door closers are furnished with a hold open arm function and are not permitted to be used on fire door assemblies.
|
Door Opening
Angle |
Dimensions★ | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Hold
Open ★★ |
Dead
Stop |
Butts and
Offset Pivots |
Center Pivots | ||||||||
| Dimen | sion A | on A Dimension B | Dimension A | Dimension B | |||||||
| Inches | mm | Inches | mm | Inches | mm | Inches | mm | ||||
| 85° | 90° | 10-1/4 | 260 | 10-5/8 | 270 | 11-1/4 | 286 | 11-5/8 | 295 | ||
| 90° | 95° | 9-5/8 | 244 | 10 | 254 | 10-1/2 | 267 | 10-7/8 | 276 | ||
| 95° | 100° | 9-1/8 | 232 | 9-1/2 | 241 | 10 | 254 | 10-3/8 | 264 | ||
| 100° | 105° | 8-3/4 | 222 | 9-1/8 | 232 | 9-1/2 | 241 | 9-7/8 | 251 | ||
| 105° | 110° | 8-3/8 | 213 | 8-3/4 | 222 | 9-1/8 | 232 | 9-1/2 | 241 | ||
| 110° | 115° | 8 | 203 | 8-3/8 | 213 | 8-3/4 | 222 | 9-1/8 | 232 | ||
- ★ "A" and "B" dimensions measured from centerline of hinge or pivot.
- ★★ Door must be free to swing up to 5° beyond hold open position.

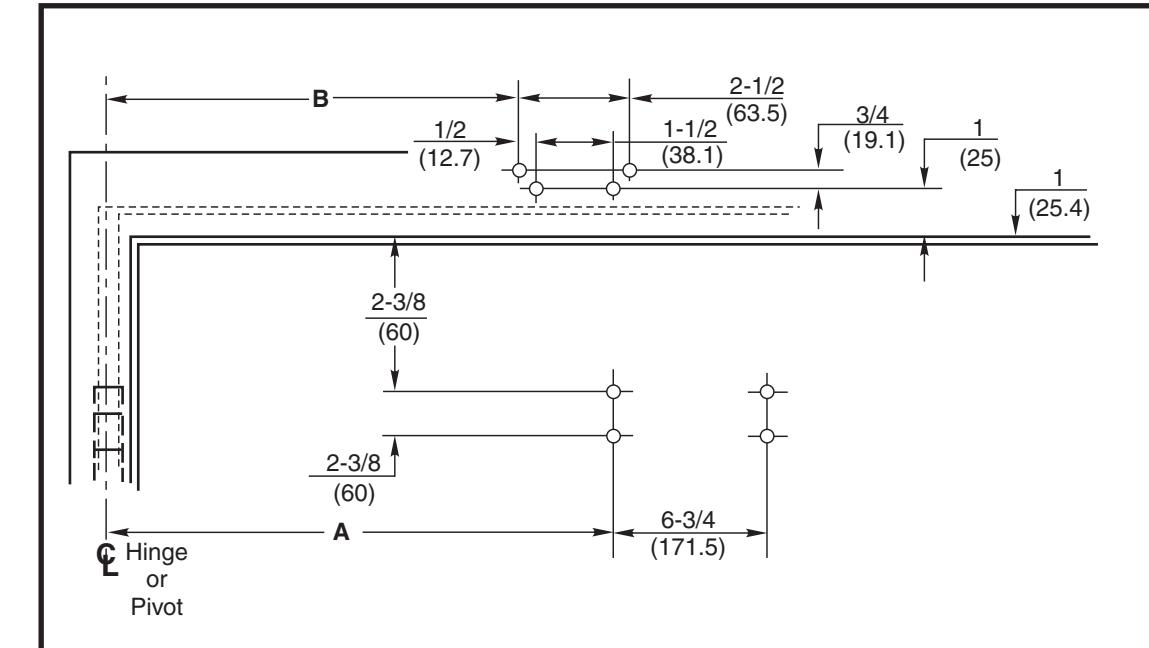

Unitrol® with 2022 Bracket Series UNI-7500, UNI-7700 or Series UNI-7500H, UNI-7700H Doors 28"-32" (0.70-0.80m) Wide
Parallel Arm Installation Template — Flush Partitions Stop Only or Stop and Hold Open Unitrol® Door Closer
ASSA ABLOY
TEMPLATE NUMBER 7377-1354
REV DATE 12/21
Approved 2022-02-25
