Norton Rixson 7500 Series Door Closer,PS7540ST(H),PS7740ST(H),Push Side Slide Track,Non-Hold Open or Hold Open w…_7377-0561

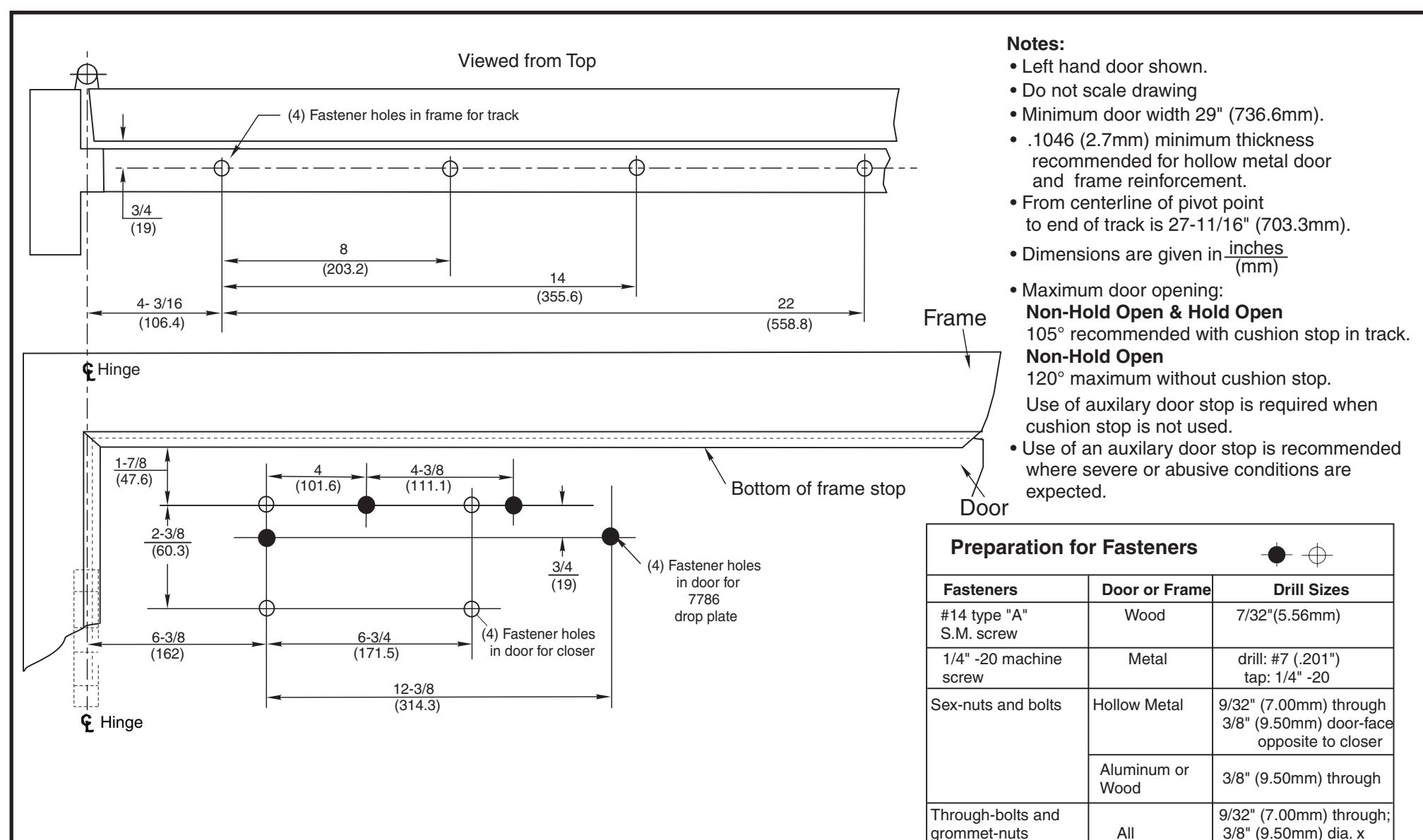

PS7540ST and PS7740ST Non Hold Open-Stop Mounted Installation PS7540STH and PS7740STH Hold Open-Stop Mounted Installation Door Closer with Slide Track With or Without 7786 Drop Plate For Use on Doors with 4½" or 5" Wide Butt Hinges

TEMPLATE NUMBER

(Optional)

DATE 3 12/21

3/8" (10mm) deep doorface opposite to closer

7377-0561

RIXSON

ASSA ABLOY
