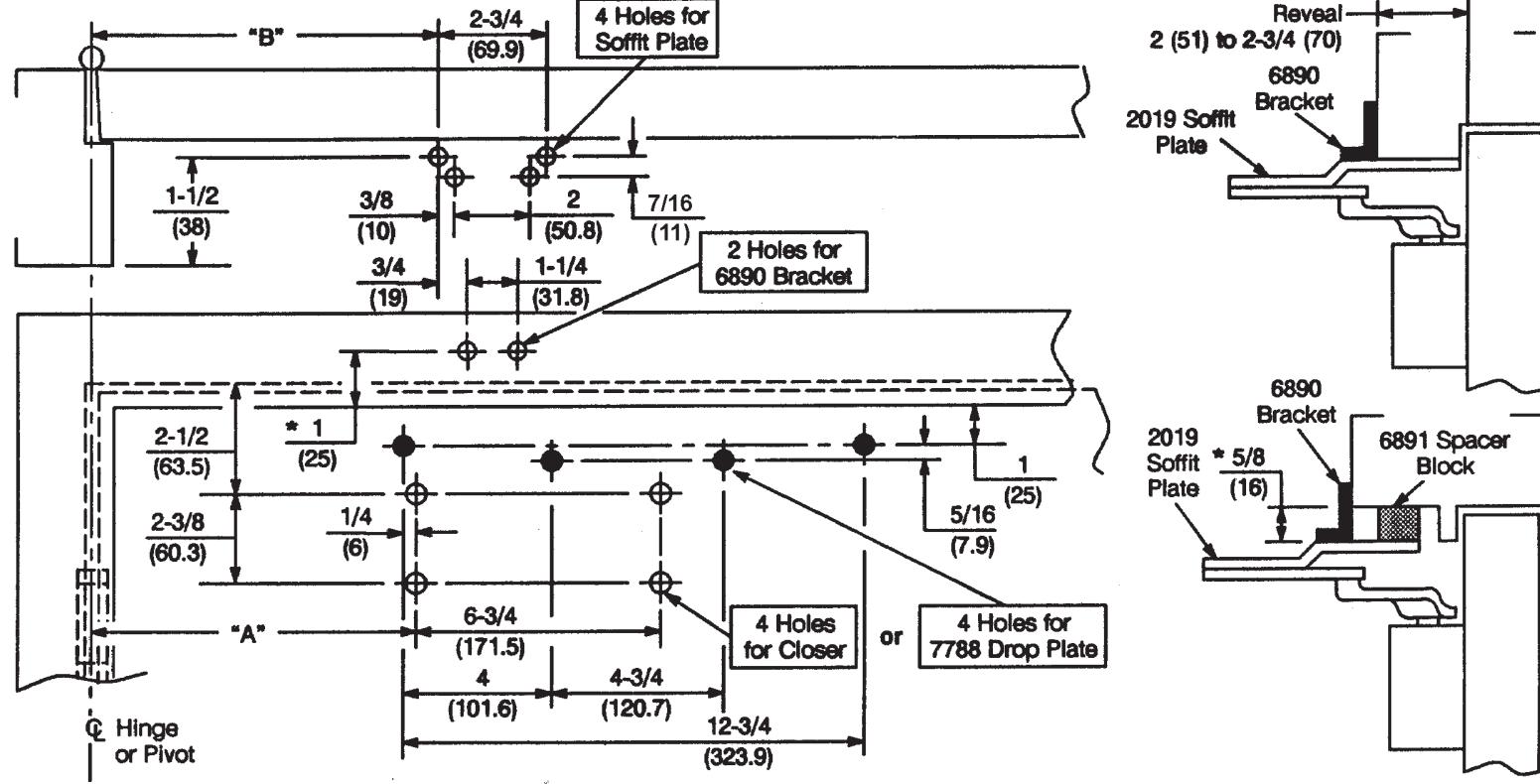

| Door Opening | Dim. "A" | Dim. "B" |
|---|---|---|
| To 100° | 8-3/4 (222) | 9-1/4 (235) |
| 101° to 130° | 7-1/4 (184) | 7-3/4 (197) |
| 131° to 150° | 6-1/4 (159) | 6-3/4 (171) |
| 151° to 180° | 5-1/4 (133) | 5-3/4 (146) |
| Preparation for Fasteners | ||||
|---|---|---|---|---|
| Fasteners | To Apply | Door or Frame | Drill Sizes | |
|
#14 x 1-1/4 (32mm) type
"A" Sheet Metal screw |
Soffit
Plate |
Wood | 7/32" (5.50mm) | |
| Aluminum | 7/32" (5.50mm) | |||
| 1/4-20 machine screw | Metal |
drill: #7 (.201" dia.)
tap: 1/4-20 |
||
| Sex nuts and bolts |
Closer or
Drop Plate |
Hollow
Metal |
9/32" (7.00mm) thru;
3/8" (9.50mm) door face opposite to closer |
|
|
Aluminum
or Wood |
3/8" (9.50mm) thru | |||
| Thru botts and grommet nuts | Optional | All |
9/32" (7.00mm) thru;
3/8" (9.50mm) dia. x 3/8" (10mm) deep, door face opposite to closer |
|
PR7500, PR7500H, PR7700 or PR7700H Series Door Closers With 6890 Bracket With or Without 7788 Drop Plate Parallel Rigid Installation With Non Hold Open or Hold Open
NORTON RIXSON
TEMPLATE NUMBER REV DATE 7377-0253
3 12/21
Approved 2022-02-25
