Norton Rixson 7500 Series Door Closer,P7500,P7700,Parallel Arm,Non-Hold Open,with 2022 Bracket,with or without 7…_7377-0206

Caution: Door swing may be limited by door, frame, wall, or hardware conditions.

Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.

Sex-bolts required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.

Always consult door/frame manufacturer for fastener compatibility with the material of their door/frame.

	Preparation for Fasteners f			figure 2
		Fasteners	Door or Frame	Drill-Sizes
	Standard	Self-Drilling Screw	Aluminum or Metal	No drill required
			Wood	3/16" (4.30 mm) Pilot hole required.
		1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Optional	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
			Aluminum or Wood	3/8" (9.5 mm) through
		Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

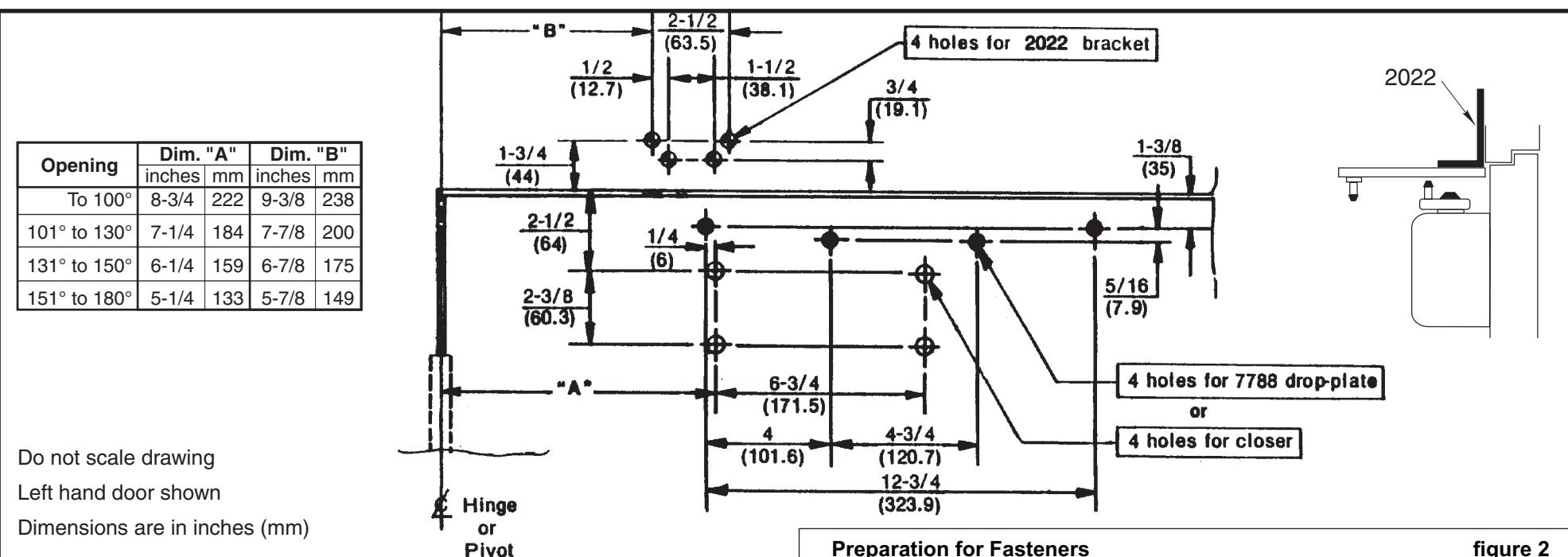

P7500 and P7700 Series Door Closers With 2022 Bracket With or Without 7788 Drop Plate Parallel Arm Installation With Non-Hold Open Arm

ASSA ABLOY

RIXSON

TEMPLATE NUMBER 7377-0206

3 12/21

Approved 2022-02-25
