Norton Rixson 7500 Series Door Closer,P7500,P7700,Parallel Arm,Non-Hold Open,with 2018S Soffit Plate,with or wit…_7377-0207

(70mm.)

14-20 machine-screw

Sexercits and bolts

Through-bolts and

grommet-nuts

Optional

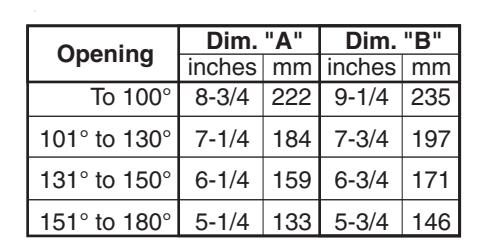

Do not scale drawing Left hand door shown Dimensions are in $\backslash frac\{\backslash text\{inches\}\}\{(\backslash text\{mm.\})\}$

Caution: Door swing or closer mounting may be linited by door, frame, wall, or hardware conditions.

Measure from soffit-plate mounting surface. This soffit plate can be applied to frame-rabbet in opening with narrow, blade or removable stop.

Hollow-metal upors require channel or box-type reinforcement when thru-bott mount is specified.

Hinge

Pivot

Sex-bolts required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046 ' (2.66mm.) unless otherwise noted.

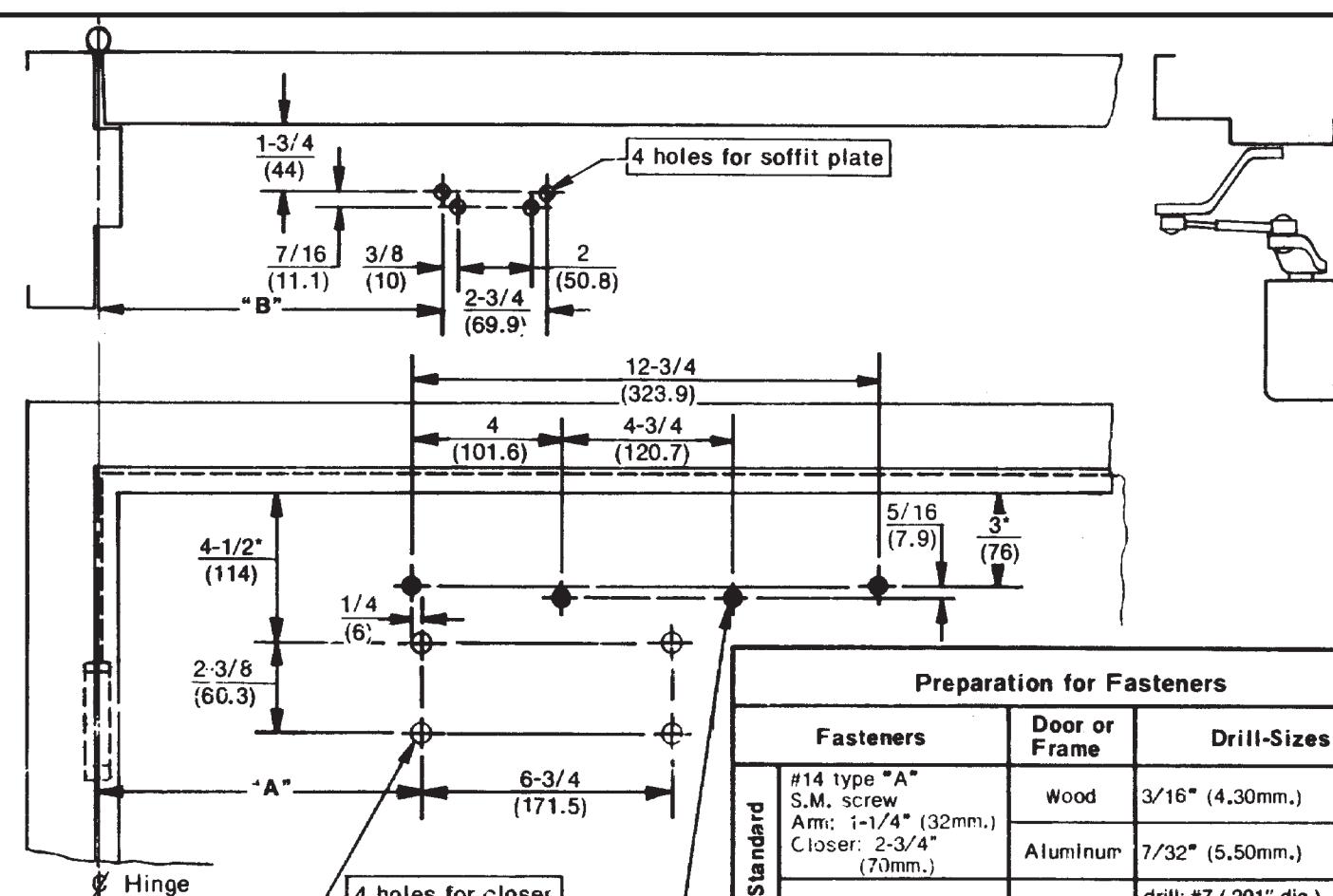

P7500 and P7700 Series Door Closers With 2018S Soffit Plate With or Without 7788 Drop Plate Parallel Arm Installation With Non-Hold Open Arm

4 holes for closer

4 holes for 7788 drop-plate

RIXSON

drill: #7 (.201" dia.)

9/32" (7.00mm.) through;

3/8" (9.50mm.) on door or

transom-face opposite

3/8" (9.50mm.) through

9/32" (7.00mm.) through;

3/8" (9.50mm.) dia. x

3/8" (10mm.) deep on

door or transom-face

opposite to closer

tap: 1/4-20

to closer

ASSA ABLOY

TEMPLATE NUMBER 7377-0207

Metal

Hollow-

Aiuminum

or Wood

AII

Metal

12/21
