Norton Rixson 7500 Series Door Closer,P7500,P7700 Parallel Arm,Non-Hold Open with or without 7788 Drop Plate Tem…_7377-0201
Open the original PDF document
View PDF
| 1 | Opening | Dim. "A" | Dim. "B" | ||
|---|---|---|---|---|---|
| inches | |||||
| Ì | To 100° | 8-3/4 | 222 | 9-1/4 | 235 |
| 101° to 130° | 7-1/4 | 184 | 7-3/4 | 197 | |
| 131° to 150° | 6-1/4 | 159 | 6-3/4 | 171 | |
| 151° to 180° | 5-1/4 | 133 | 5-3/4 | 146 | |
| Preparation for Fasteners | |||||||
|---|---|---|---|---|---|---|---|
| Fasteners | Door or Frame | Drill-Sizes | |||||
| Standard |
#14 SDST Type BSD or
#14 SMS Type A |
Wood |
3/16" (5 mm)
Pilot Hole Required |
||||
| 1/4" - 20 machine screw | Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
|||||
| Optional | Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (10 mm) door or transom-face opposite to closer |
||||
| Aluminum or Wood | 3/8" (10 mm) through | ||||||
| Through-bolts and grommet-nuts | All |
9/32" (7 mm);
3/8" (10 mm) dia. x 3/8" (10 mm) deep on door or transom-face opposite to closer |
|||||
Notes:
- 1. Do not scale drawing
- 2. Left hand door shown
- 3. Dimensions are in inches (mm).
- Caution: Door swing may be limited by door, frame, wall, or hardware conditions.
- 5. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- 6. Sex-bolts required for wood or plastic faced fire-door mounting.
- 7. Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046 (3mm) unless otherwise noted.

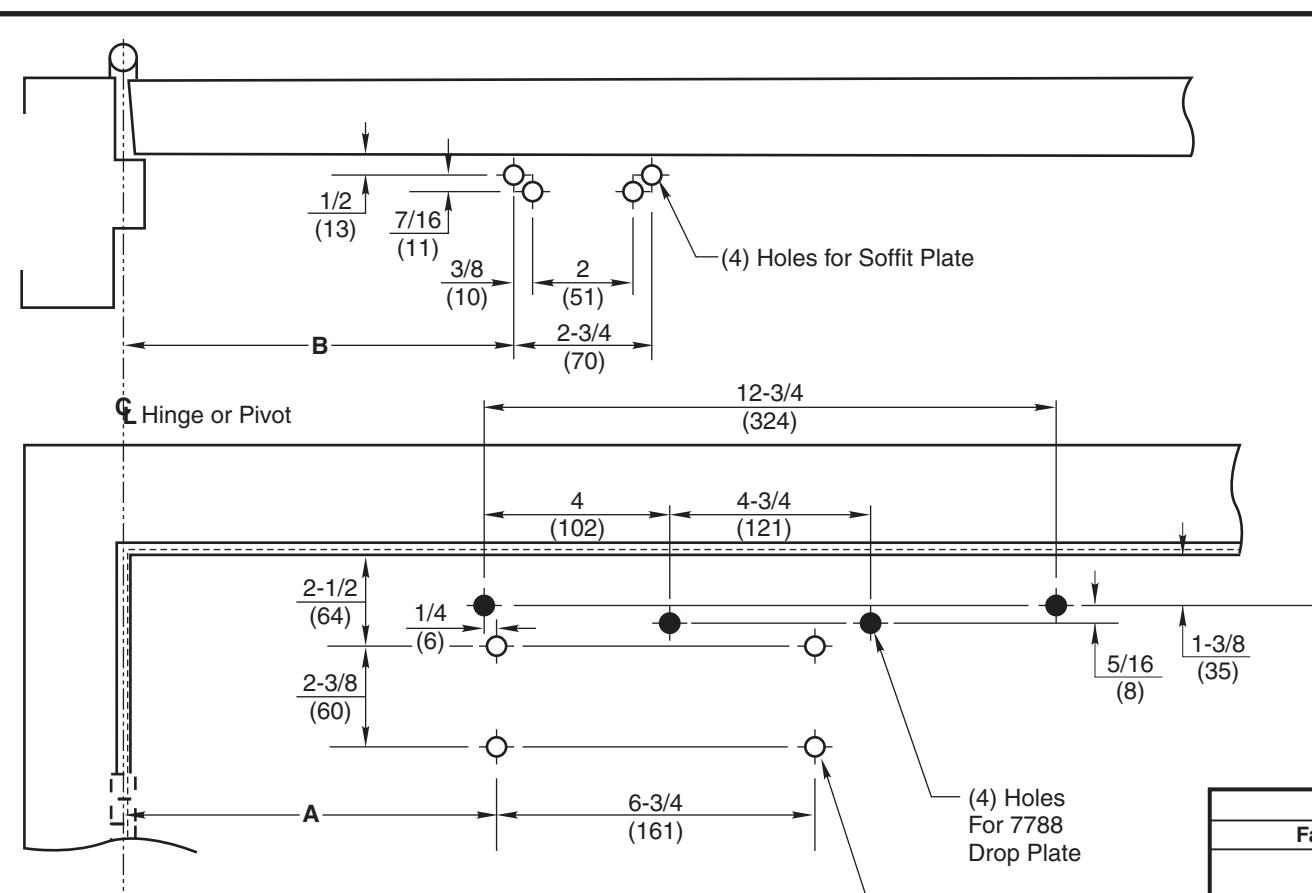

P7500 and P7700 Series Door Closers With or Without 7788 Drop Plate Parallel Arm Installation With Non-Hold Open Arm
RIXSON
ASSA ABLOY
TEMPLATE NUMBER
REV DATE 12/21
7377-0201 3
(4) Holes For Closer
