5/8 maximum

Preparation for Fasteners Door or

1-7/8

(48)

14-20 machine-screw

Sex-nuts and bolts

Through-bolts and

grommet-nuts

Optional

Drill-Sizes Frame #14 type "A" Wood 3/16* (4.30mm.) S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" Aluminum 7/32" (5.50mm.) (70mm.)

Metal

Hollow-

Aluminum

or Wood

AIL

Metal

Caution: Door swing may be limited by door, frame, wall, or hardware conditions.

Do not scale drawing

Left hand door shown

Dimensions are in inches (mm.)

Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.

Sex-bolts required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.

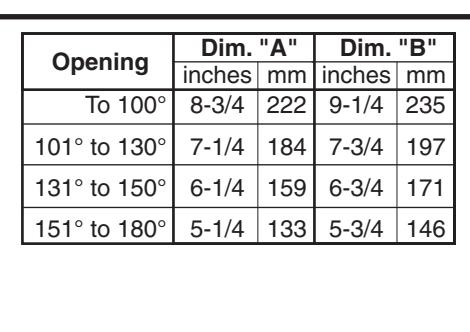

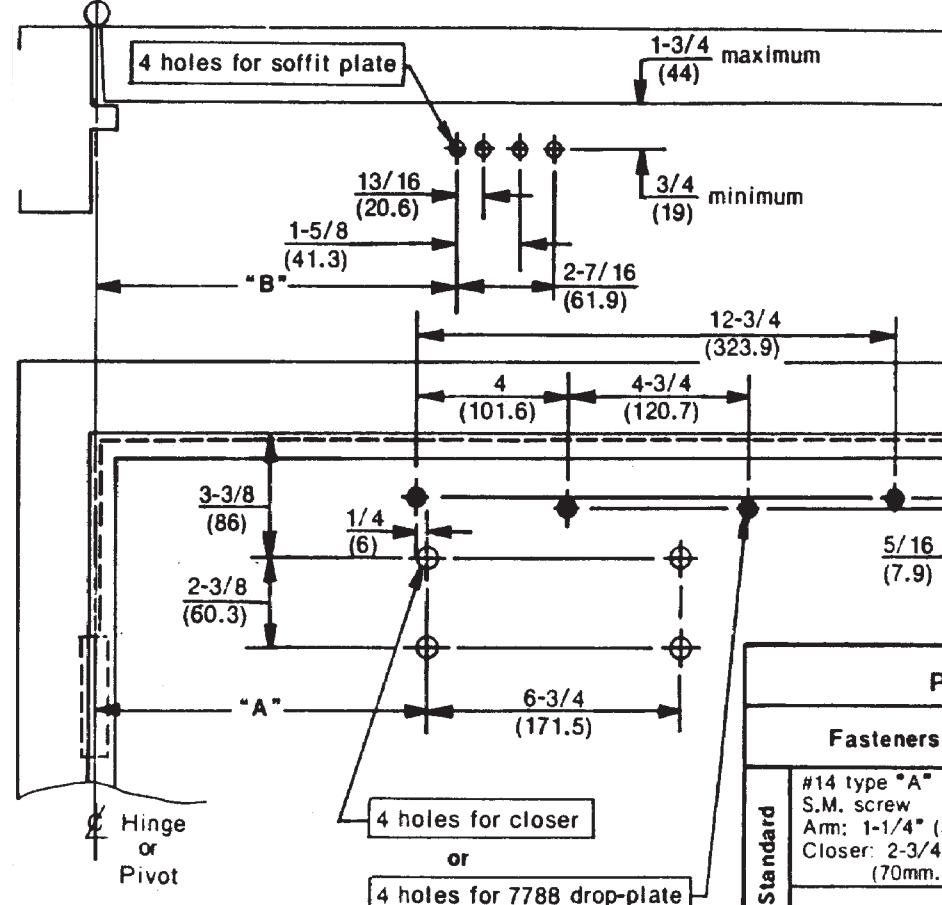

P7500 and P7700 Series Door Closers With 2018B Soffit Plate With or Without 7788 Drop Plate Parallel Arm Installation With Non-Hold Open Arm

RIXSON

drill: #7 (.201" dia.)

9/32" (7.00mm.) through;

3/8" (9.50mm.) on door or

transom-face opposite

3/8" (9,50mm.) through

3/8" (9.50mm.) dia. x

3/8" (10mm.) deep on

door or transom-face

opposite to closer

9/32" (7.00mm.) through;

tap; 1/4-20

to closer

ASSA ABLOY

TEMPLATE NUMBER 7377-0204

12/21

Approved 2022-02-25
