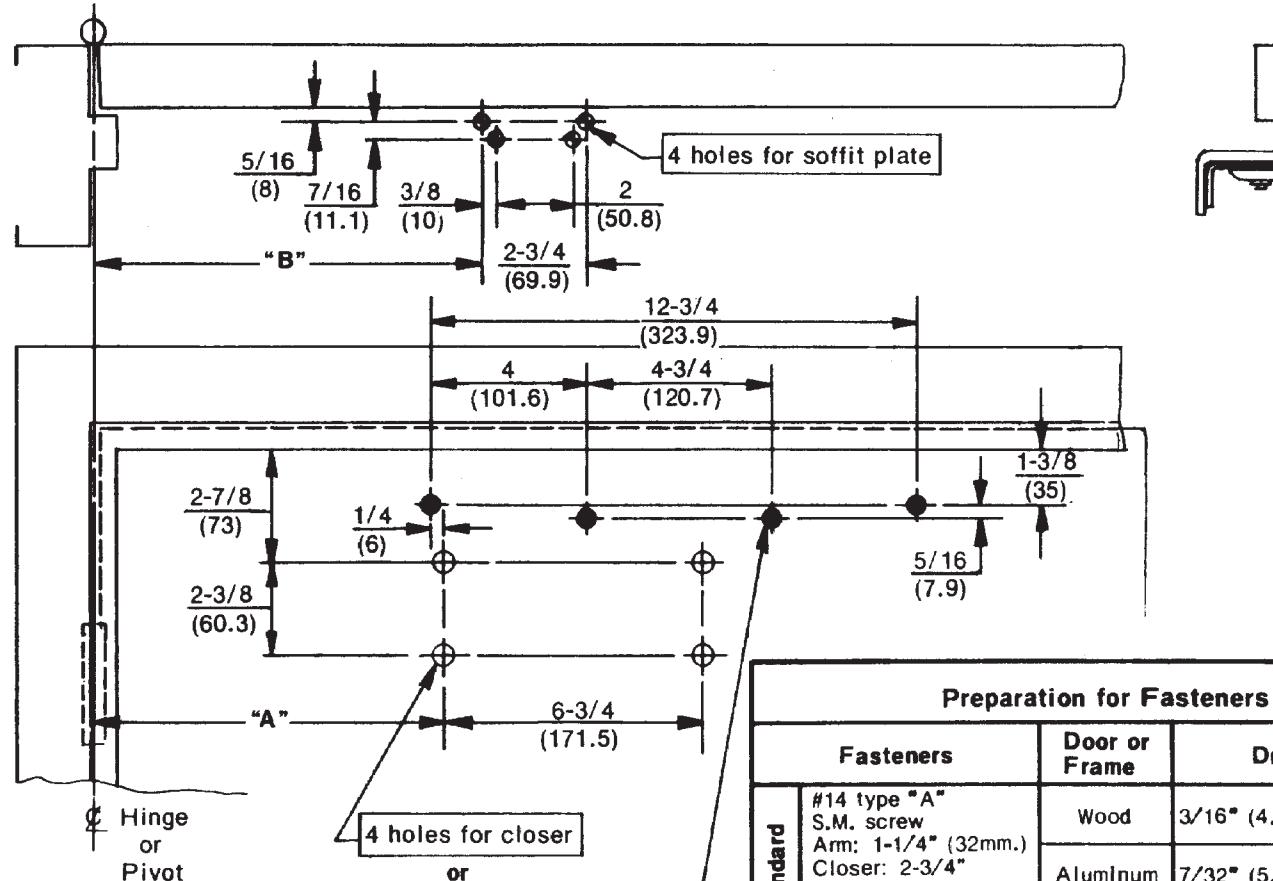

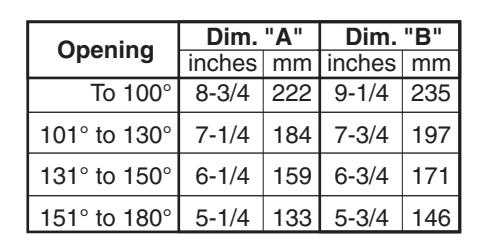

4 holes for 7788 drop-plate
1-3/8 (35)
Do not scale drawing Left hand door shown Dimensions are in
Caution: Door swing may be limited by door, frame, wall, or hardware conditions.
Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
Sex-bolts required for wood or plastic faced fire-door mounting.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2,66mm.) unless otherwise noted.
| Fasteners |
Door or
Frame |
Drill-Sizes | |
|---|---|---|---|
| Standard | #14 type "A" S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.) | Wood | 3/16* (4,30mm.) |
| Aluminum | 7/32" (5.50mm.) | ||
| 14-20 machine-screw | Metal |
drill: #7 (.201" dia.)
tap: 1/4-20 |
|
| Optional | Sex-nuts and bolts |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) on door or transom-face opposite to closer |
|
Aluminum
or Wood |
3/8" (9.50mm.) through | ||
| Through-bolts and grommet-nuts | AII |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep on door or transom-face opposite to closer |
|
P7500H or P7700H Series Door Closers With or Without 7788 Drop Plate Parallel Arm Installation With Hold Open
RIXSON
ASSA ABLOY
TEMPLATE NUMBER
3 12/21
7377-0211
Approved 2022-02-25
