(opposite to hinge side mounting).

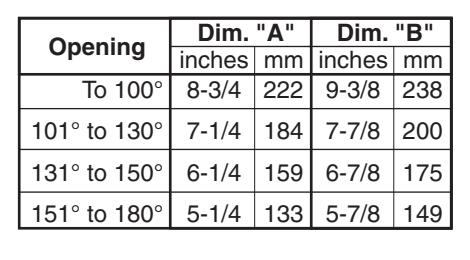

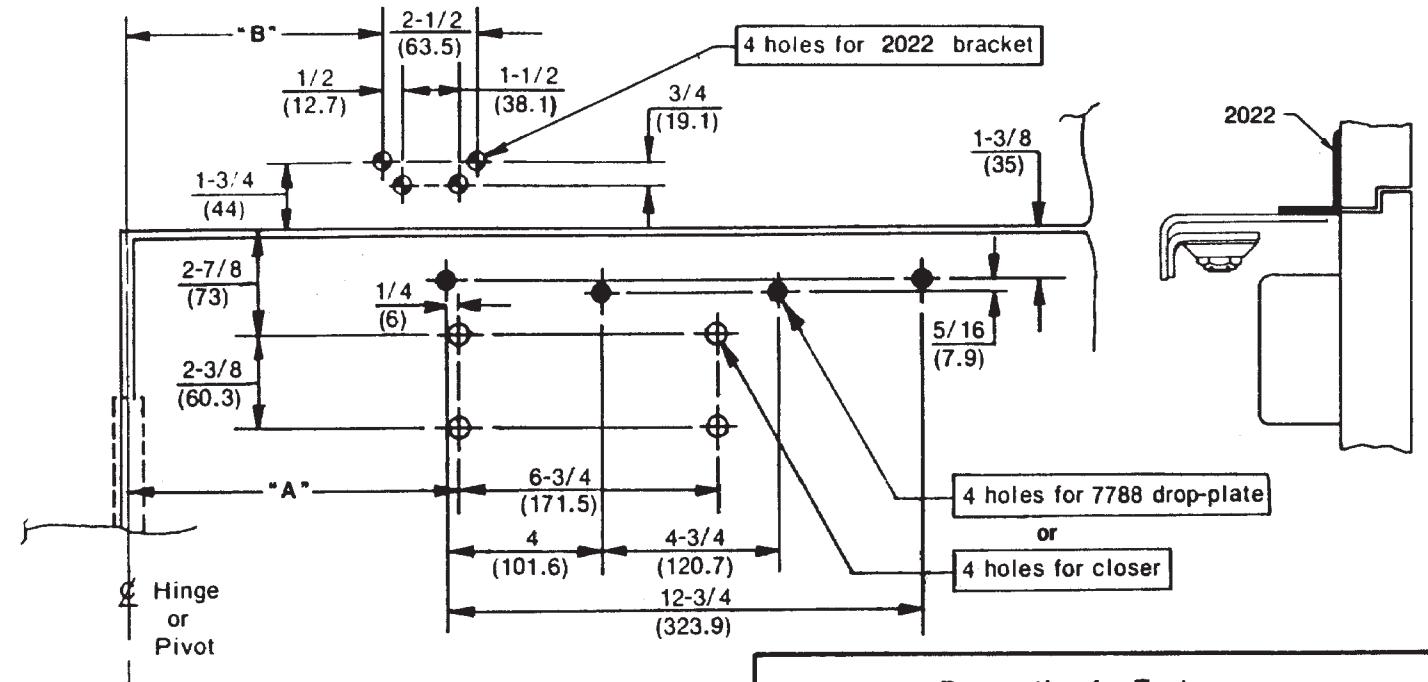

Do not scale drawing Left hand door shown Dimensions are in inches (mm.)
Caution: Door swing may be limited by door, frame, wall, or hardware conditions.
Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
Sex-bolts required for wood or plastic faced fire-door mounting.
Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.
| Preparation for Fasteners | |||
|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill-Sizes | |
| Standard |
#14 type "A"
S.M. screw Arm: 1-1/4" (32mm.) |
Wood | 3/16* (4.30mm.) |
|
Closer: 2-3/4"
(70mm.) |
Aluminum | 7/32" (5.50mm.) | |
| 1/4-20 machine-screw | Metal |
dritt: #7 (.201" dia.)
tap: 1/4-20 |
|
| Optional | Sex-nuts and boits |
Hollow-
Metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) on door or transom-face opposite to closer |
|
Aluminum
or Wood |
3/8" (9,50mm.) through | ||
| Through-bolts and grommet-nuts | AII |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. x 3/8" (10mm.) deep on door or transom-face opposite to closer |
|
P7500H or P7700H Series Door Closers With 1628H x 2022 Brackets With or Without 7788 Drop Plate Parallel Arm Installation With Hold Open
ASSA ABLOY
RIXSON
TEMPLATE NUMBER 7377-0212
TEV DATE 12/21
Approved 2022-02-25
