Norton Rixson 7500 Series Door Closer,CPS-7500,CPS-7700,CloserPlus Spring Arm,Parallel,Non-Hold Open or Hold Ope…_7377-1302

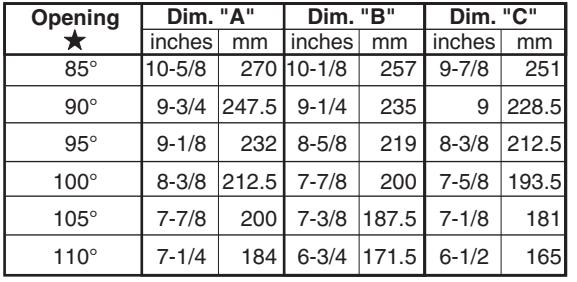

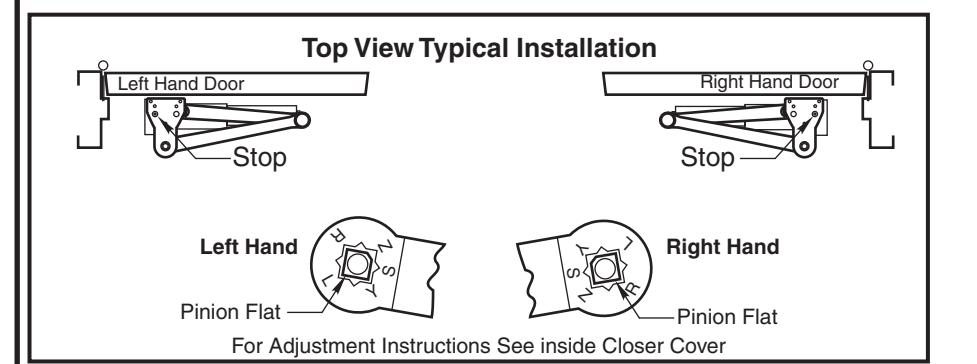

★ Template dimensions are for hold open/door stop within ^±2° of charted door openings. Doors may overtravel up to 5° beyond the rest position.

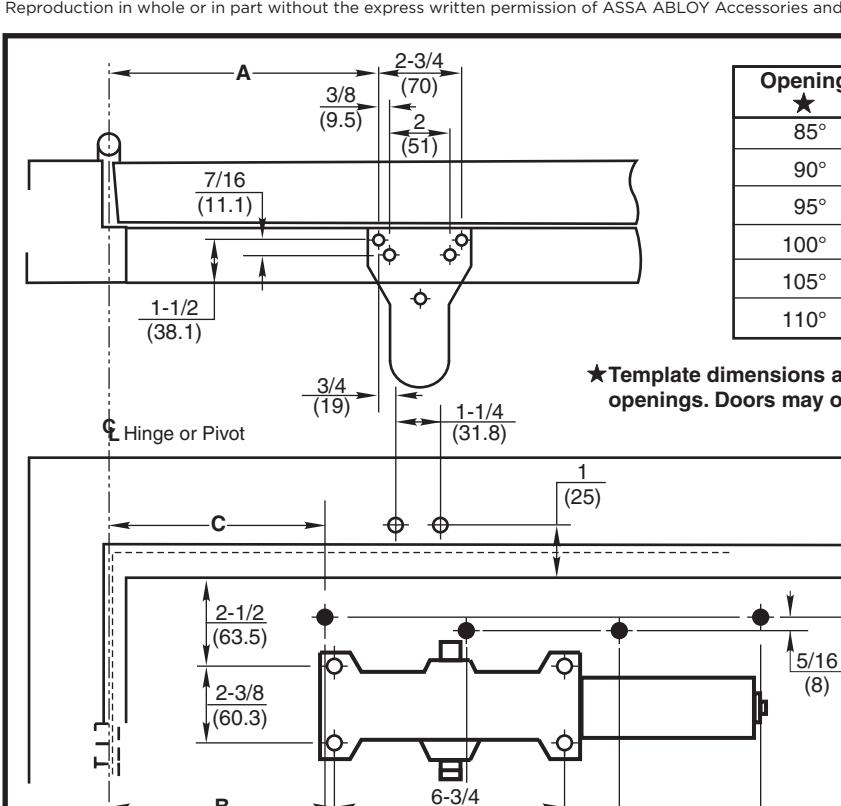

Single Rabbetted Frame

NOTES:

• Do not scale drawing.
• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• Sex-bolts required for wood or plastic faced fire-door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow- metal doors and frames: .0146" (2.66mm).
• 7. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
• Maximum width hinges for this template are 5" (127mm).

	Fasteners	Frame	Door	Drill-Sizes
	#14 Type A Sheet Metal Screw	Wood	none	3/16" (4.8 mm) Pilot Hole Required
	1/4" - 20 machine screw	Metal	none	Drill: #7 (0.201" dia.) or 5.1mm Tap: 1/4" - 20
	Sleeve nuts and bolts	none	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
			Aluminum or Wood	3/8" (9.5 mm) through

(171.5)

(101.6)

4-3/4

(120.6)

12-3/4

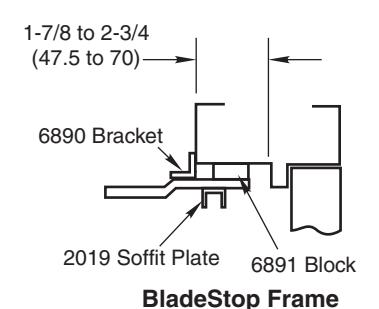

CPS-7500, CPS-7700 CloserPlus Spring™ Arm Parallel Arm Application with 6890 Reinforcing Bracket With or Without 7788 Drop Plate or 6891 Spacer Block Arm Function: Stop Only or Stop & Hold Open ("T" Suffix) Power Size ) for 7500; 2, 3, 4, 5, or 6 for 7700

Holes

For 7788

Drop Plate

Approved 2022-02-25

ASSA ABLOY

7377-1302

TEMPLATE NUMBER

3 | 12/21
