Norton Rixson 7500 Series Door Closer,CLP7570(T),CPS7570(T),CLP7770(T),CPS7770(T),Security Closers,CloserPlus or…_7377-0625

• 6. Hold open function, "T" suffix, is not permitted in a fire-door assembly.
• 7. Maximum width hinges for this template are 5" (127mm)

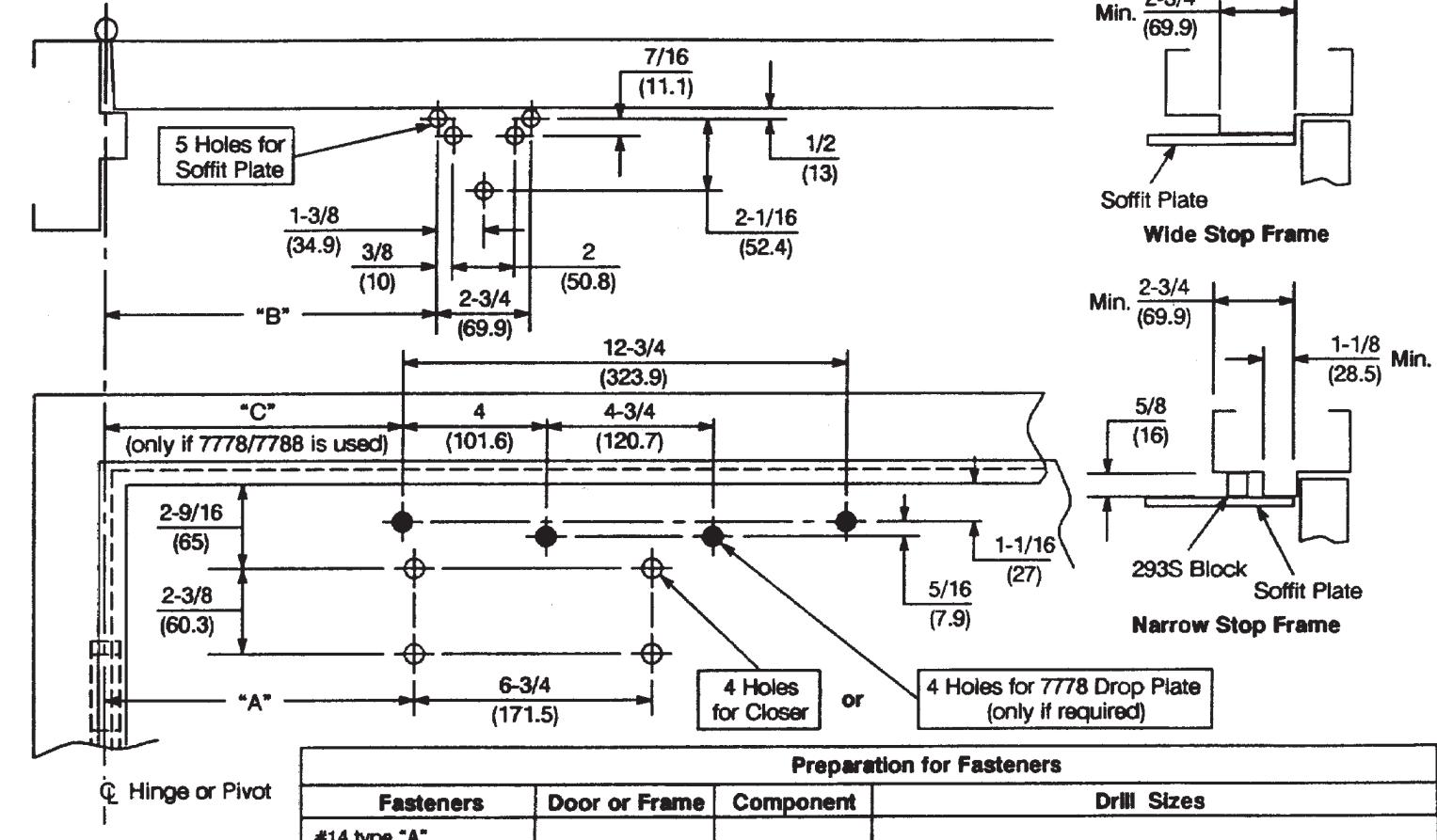

Door Opening	Dim. "A"	Dim. "B"	Dim. "C"
85°	10-1/8 (257)	10-5/8 (270)	9-7/8 (251)
90°	9-1/4 (235)	9-3/4 (248)	9 (229.6)
95°	8-5/8 (219)	9-1/8 (232)	8-3/8 (213)
100°	7-7/8 (200)	8-3/8 (213)	7-5/8 (194)
105°	7-3/8 (187)	7-7/8 (200)	7-1/8 (181)
110°	6-3/4 (171)	7-1/4 (184)	6-1/2 (165)

Fasteners	Door or Frame	Component	Drill Sizes
#14 type "A" S.M. screw Arm: 1-1/4" (32mm) Closer: 2-3/4" (70mm)	Wood	Arm	7/32" (5.50mm)
1/4-20 machine screw	Metal	Arm	drill: #7 (.201") tap: 1/4-20
Sex nuts and bolts (SNB)	Hollow Metal	Closer	9/32" (7.00mm) thru; 3/8" (9.50mm) on door or transom face opposite to closer
	Aluminum or Wood		3/8" (9.50mm) thru
Thru bolts and grommet nuts (TBGN)		Closer	9/32" (7.00mm) thru; 3/8" (9.50mm) dia. x 3/8" (9.50mm) deep on door or transom face opposite to closer

® CLP-7570, CLP-7770 CloserPlus Arm Security Door Closer or CPS-7570, CPS-7770 CloserPlus Spring™ Arm Security Door Closer Parallel Arm Application With or Without 7778 Drop Plate Arm Function - Stop Only of Stop & Hold Open ("T" Suffix) Power Size 0 for 7570; 2, 3, 4, 5, or 6 for 7770

NORTON RIXSON

TEMPLATE NUMBER REV

3 DATE 7377-0625 12/21

Approved 2022-08-01
