Norton Rixson 7500 Series Door Closer,CLP-7500(T),CLP-7700(T),CPS-7500(T),CPS-7700(T) CloserPlus or CloserPlus S…_7377-1301

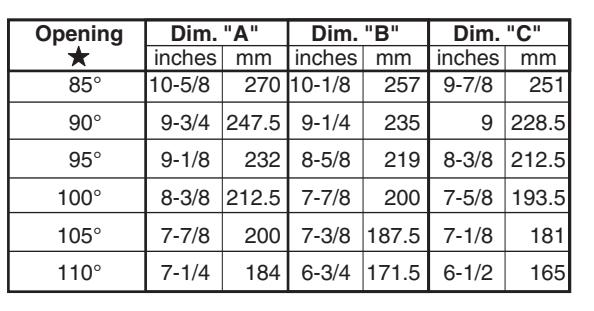

★Template dimensions are for hold open/door stop within ^†2° of charted door openings. Doors may overtravel up to 5° beyond the rest position.

2-3/4

(70)

Min.

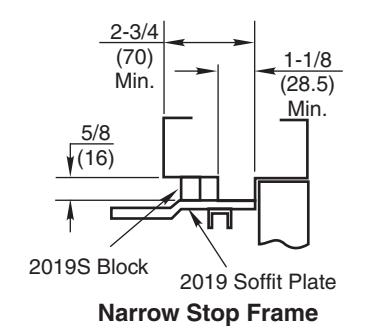

Wide Stop Frame

2019 Soffit Plate

C 2-1/2 (63.5) 2-3/8 (60.3) B (171.5) 4 (101.6) (120.6) 12-3/4 (324) Holes For 7788 Drop Plate

(51)

P

1-3/8

(35)

7/16

(11.1)

5/16

(8)

2-1/16

(52.4)

Hinge or Pivot

NOTES:

• 1. Do not scale drawing.

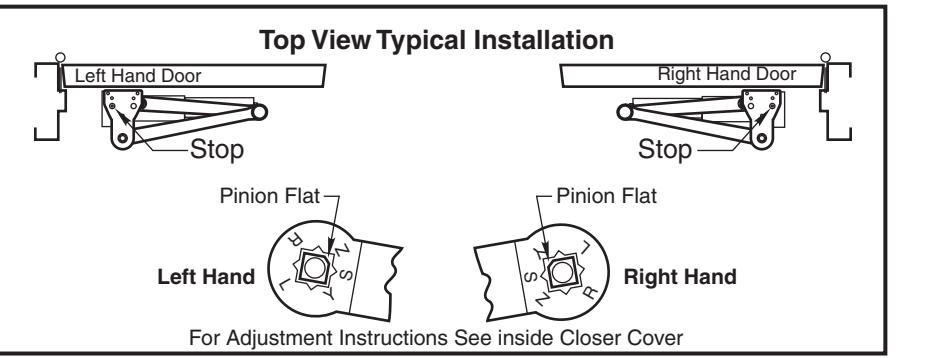

• 2. Left hand door shown.
• 3. Dimensions are in inches (mm).
• 4. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
• 5. Sex-bolts required for wood or plastic faced fire-door mounting.
• 6. Minimum thickness recommended for reinforcements in hollow- metal doors and frames: .0146" (2.66mm).
• 7. Hold Open function "T" Suffix, is not permitted in a fire-door assembly.
• 8. Maximum width hinges for this template are 5" (127mm)

Fasteners	Frame	Door	Drill-Sizes
#14 Type A Sheet Metal Screw	Wood	none	3/16" (4.8 mm) Pilot Hole Required
1/4" - 20 machine screw	Metal	none	Drill: #7 (0.201" dia.) or 5.1mm Tap: 1/4" - 20
Sleeve nuts and bolts	none	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum	3/8" (9.5 mm) through

CLP-7500, CLP-7700 CloserPlus^® Arm Door Closer or CPS-7500, CPS-7700 CloserPlus Spring™ Arm Door Closer Parallel Arm Application With or Without 7788 Drop Plate Arm Function: Stop Only or Stop & Hold Open ("T" or "R" Suffix) Power Size 1-6 App ₹50.00, 22,032,240,2525r 6 for 7700

TEMPLATE NUMBER 7377-1301

REV DA

12/21
