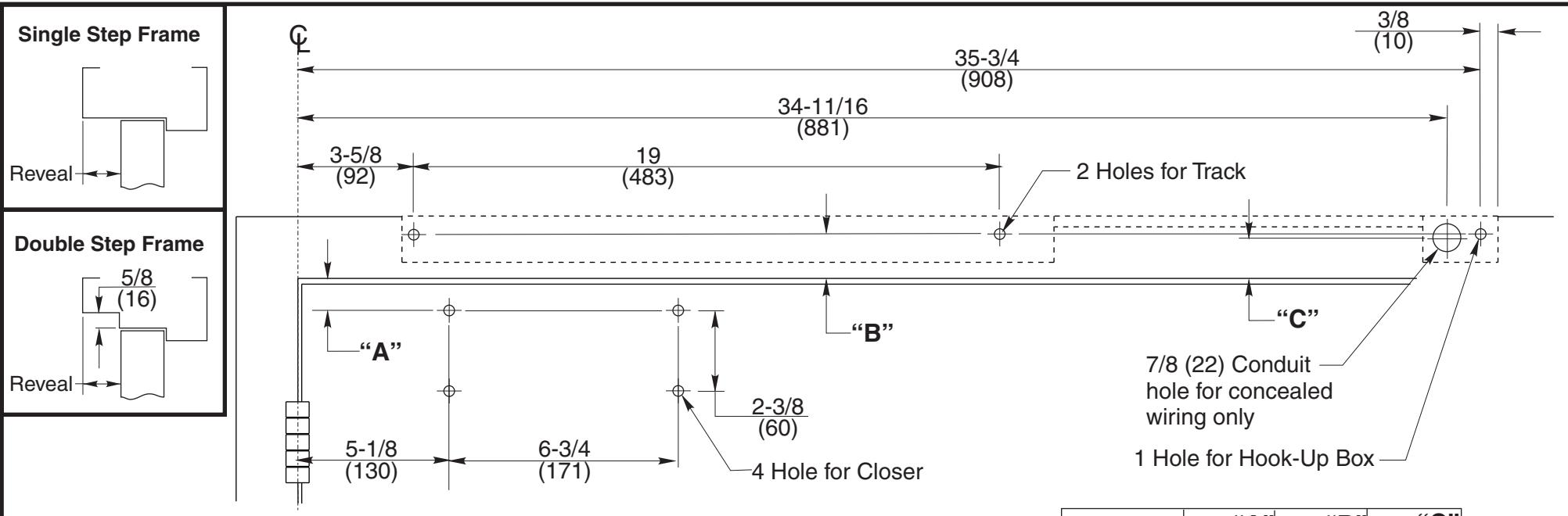

Do not scale drawing.
Notes:
•Right hand door shown. Same dimensions apply for left hand door, measured from centerline of hinge or pivot.
Right Hand Shown
- •Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.
- •Dimensions are shown in inches and millimeters (mm).
- •Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- •Sex-nuts are required for wood or plastic faced fire-door installations.
- •Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.
- •Minimum ceiling clearance for closer unit is 2" (50).
- •Maximum door opening is 105°.
- Charted dimensions measured from door rabbet.
| Frame Type | Dim. " A " | Dim. "B" | Dim. " C " |
|---|---|---|---|
|
Single
Step |
1-3/8 (39) |
1-7/16
(37) |
(32) |
|
Double
Step |
1-1/4
(32) |
1-5/8
(41) |
1-7/16
(37) |
| Preparation for Fasteners | |||||
|---|---|---|---|---|---|
| Fasteners Door or Frame Drill-Sizes | |||||
| Standard |
1/4" - 20 machine
screw |
Metal |
Drill: #7 (0.201" dia.)
Tap: 1/4" - 20 |
||
| Sleeve nuts and bolts |
Hollow
Metal |
9/32" (7 mm) through;
3/8" (9.5 mm) door face opposite to closer |
|||
| Aluminum or Wood | 3/8" (9.5 mm) through | ||||
| Optional | Through-bolts and grommet-nuts | All |
9/32" (7 mm);
3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer |
||
Norton Series 7700PTDO-DE Primary Unit
For Installations with a Double Egress Frame Combination Door Closer-Holder with Single Point Hold Open Hinge (Pull) Side of Door Installation with Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)
Norton ASSA ABLOY www.nortondoorcontrols.com TEMPLATE NUMBER 7378-1813 DATE 08-20
