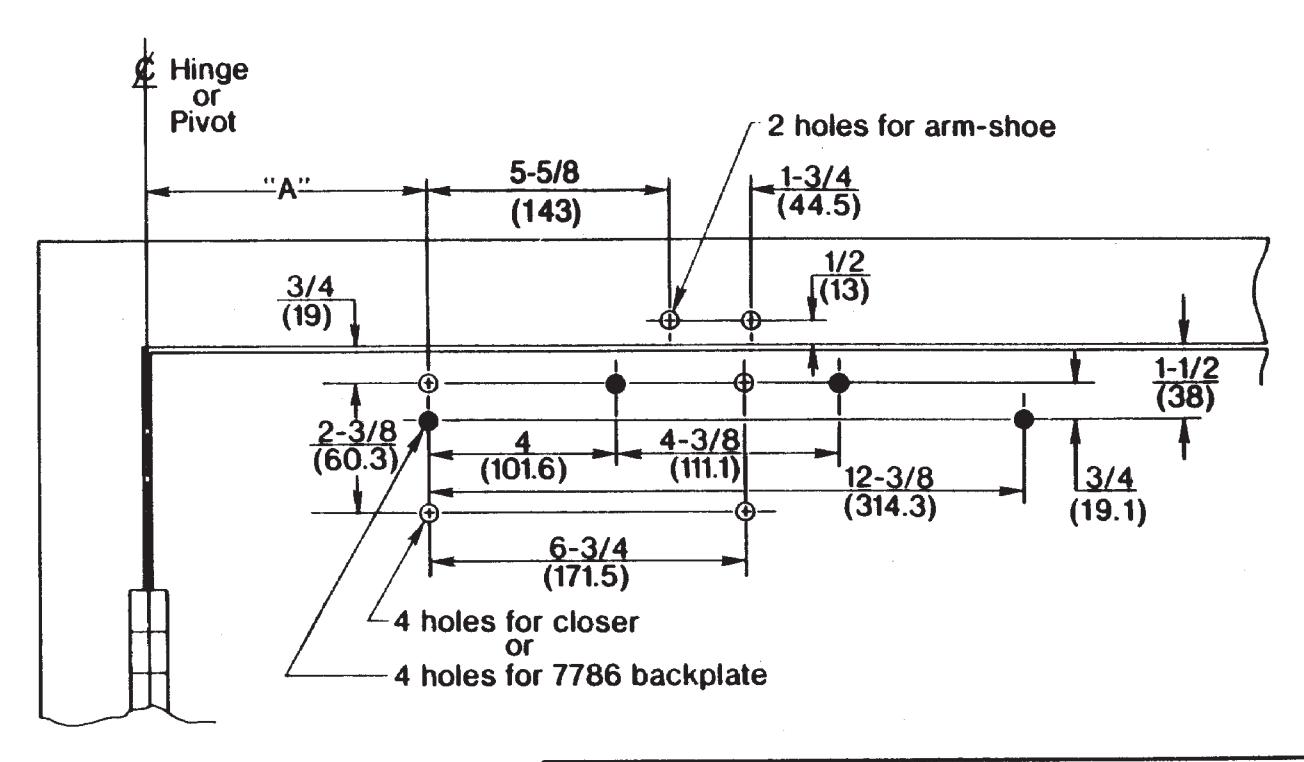

View PDF| Opening |
Dimension
"A" |
||
|---|---|---|---|
| inches | mm. | ||
| To 100° | 7-5/8 | 194 | |
| 100° to 120° | 6-5/8 | 168 | |
| 120° to 150° | 4-5/8 | 117 | |
| 150° to 180° | 4-1/8 | 105 | |
- ! Caution: Door swing may be limited by door, frame, wall or hardware conditions (including closer projection).
- ! Do not scale drawing.
- ! Right hand door shown.
- ! Dimensions are given in inches (mm).
- ! Minimum ceiling clearance for closer arm : 1" (25mm).
- ! Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
- ! Through bolts required for wood or plastic faced fire-door mounting.
- ! Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm) unless otherwise noted.
| PREPARATION FOR FASTENERS | ||||
|---|---|---|---|---|
| Fasteners |
Door or
Frame |
Drill Sizes | ||
| STANDARD |
#14 type "A" S.M. Screw
Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.) |
Wood | 3/16" (4.30mm.) | |
| 1/4-20 Machine Screw | Metal |
#7 [.201" (5.10mm.) dia.] drill
1/4-20 UNC tap |
||
| OPTIONAL |
Sex-nuts and bolts
(See mortising note*) |
Hollow-
metal |
9/32" (7.00mm.) through;
3/8" (9.50mm.) face opposite to closer. |
|
| Aluminum or Wood | 3/8" (9.50mm.) through. | |||
| Through-bolts and grommet-nuts (See mortising note**) | All |
9/32" (7.00mm.) through;
3/8" (9.50mm.) dia. X 3/8" (10mm.) deep on face opposite to closer. |
||
7580 and 7780 Series Door Closers With or Without 7786 Backplate Regular Arm Installation With Non Hold Open Arm
NORTON RIXSON
7377-0110 12/21
TEMPLATE NUMBER REV 3 DATE
