| Single Step Frame |
|---|
| Reveal - |
| Double Step Frame |
|
5/8
(16) |
| —► Reveal - |
| - neveal |

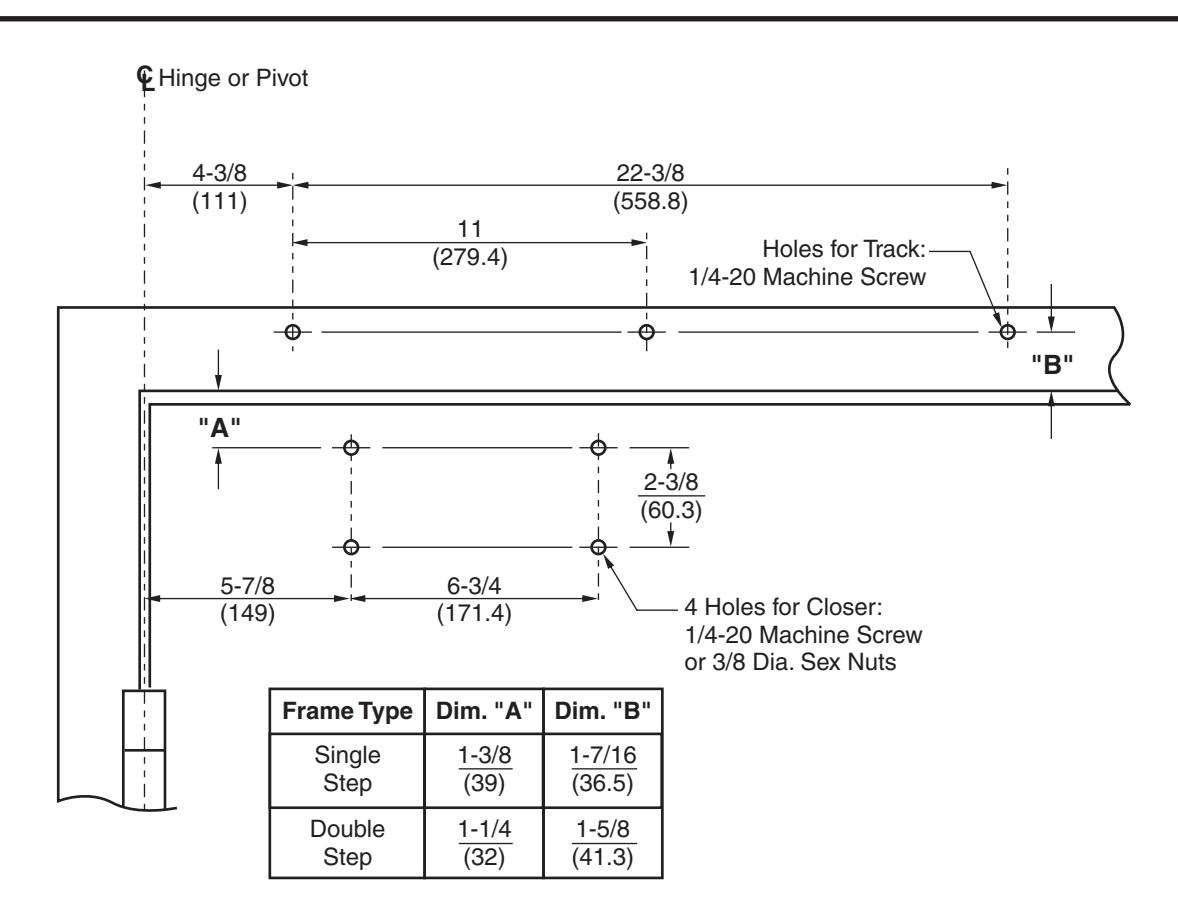

NOTES
- 1. Do not scale drawing.
- 2. Right hand door shown.
- 3. Dimensions are in inches (mm).
- 4. Important: From centerline of pivot to end of track 26-7/8" (683mm).
- 5. Charted dimensions measured from door rabbet.
- 6. Minimum ceiling clearance for unit is 2-1/8" (54mm).
- 7. Maximum door opening is 105°.
- 8. Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.
-
9. Minimum thickness recommended for reinforcements in hollowmetal doors and frames:
- .1046 (2.66mm) unless otherwise noted.
Preparation for Fasteners Fasteners Fastener Preparation Opening #29 Drill, .136" (3.50mm) Dia. 8-32 Machine Screw Metal Frame Tap #8-32 UNC Metal 1/4-20 Machine Screw #7 Drill, .201" (5.10mm) Dia. Door or Frame Tap 1/4-20 UNC 3/8 Dia. Sex Nut Wood or 3/8 Drill, .375" (9.50mm) Dia. Composite Door Thru
7700ST-DE/7500ST-DE Series Non-Hold Open Door Closers 7700STH-DE/7500STH-DE Series Hold Open Door Closers Hinge Side Slide Track Application For Double Egress Frame Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)
NORTON RIXSON ASSA ABLOY
TEMPLATE NUMBER
3 REV
7377-0511
DATE 12/21
