Norton Rixson 7500 Series Door Closer,7500(H),7700(H) with or without 7786 Backplate,Non-Hold Open or Hold Open …_7377-0101

(38)

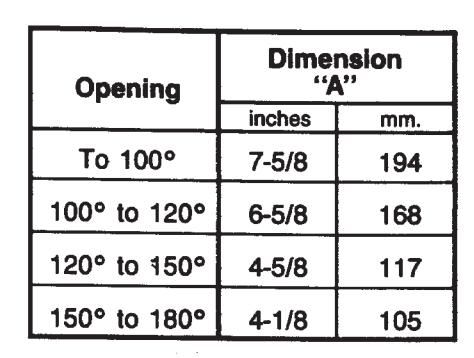

2 holes for arm-shoe 5-5/8 (143)(19)4-3/8 2 - 3/8 (19.1)(60.3) (101.6)(111.1)12-3/8 (314.3)6-3/4 (171.5)4 holes for closer Drengration for Easteners 4 holes for 7786 backplate

Do not scale drawing Right hand door shown Dimensions are in $\backslash frac\{\backslash text\{inches\}\}\{(\backslash text\{mm\}\_\{\backslash bullet\})\}$

Caution: Door swing may be limited by door, frame, wall, or hardware conditions (including closer projection).

Hollow-metal doors require channel or box-type reinforcement when thru-bolt mount is specified.

Sex-bolts required for wood or plastic faced fire-door mounting.

Minimum thickness recommended for reinforcements in hollow-metal doors and frames: .1046" (2.66mm.) unless otherwise noted.

Preparation for Fasteners
Fasteners		Door or Frame	Drill-Sizes
Standard	#14 type "A" S.M. screw Arm: 1-1/4" (32mm.) Closer: 2-3/4" (70mm.)	Wood	3/16" (4.30mm.)
	1/4-20 machine-screw	Metai	drill: #7 (.201" dia.) tap: 1/4-20
Optional	Sex-nuts and bolts	Hollow- Metal	9/32* (7.00mm.) through; 3/8* (9.50mm.) on door or transom-face opposite to closer
		Aluminum or Wood	3/8" (9.50mm.) through
	Through-bolts and grommet-nuts	AII	9/32" (7.00mm.) through; 3/8" (9.50mm.) dia · x 3/8" (10mm.) deep on door or transom-face opposite to closer

7500, 7700, 7700COU, 7700TEL 7500H, 7700H, and 7700HOSP Series Door Closers With or Without 7786 Backplate Regular Arm Installation With Non Hold Open or Hold Open Arm

Hinge or Pivot

RIXSON

ASSA ABLOY

TEMPLATE NUMBER 7377-0101

REV DATE 12/21

Approved 2022-02-25
