UNI-J7500 (DA) (H) Series Unitrol® Door Closer

Non Hold Open or Hold Open, Top Jamb Installation Instructions

ASSA ABLOY

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadiustment.

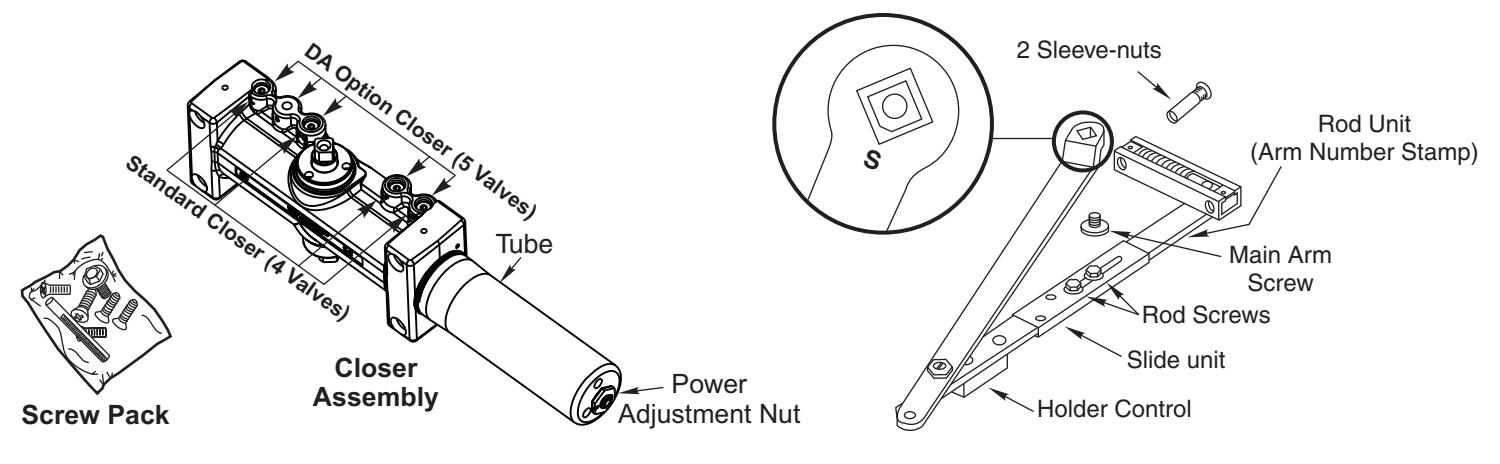

Components

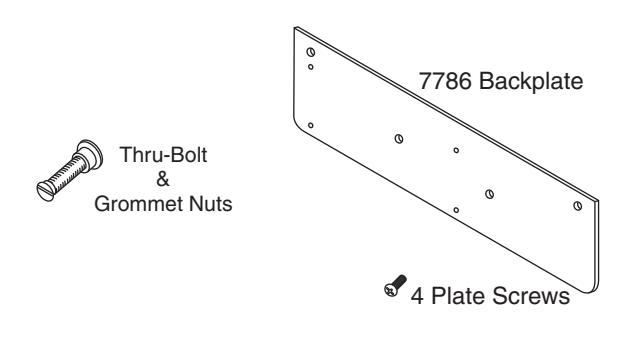

Optional Accessories

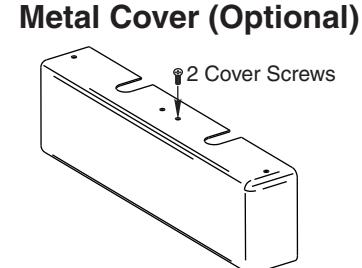

Cover Options

Plastic Cover (Standard)

• Always use template covering door opening angle desired, correct door thickness and frame reveal, and door hanging hardware being used. Template dimensions in these instructions (page 2) cover frame reveals to 7-3/8" (187mm) in openings with 1-3/4" (44mm) thick doors hung on 4-1/2" (114mm) wide template hinges (Figure 3), 3/4" (19mm) offset pivots (Figure 3) or center pivots (Figure 4).

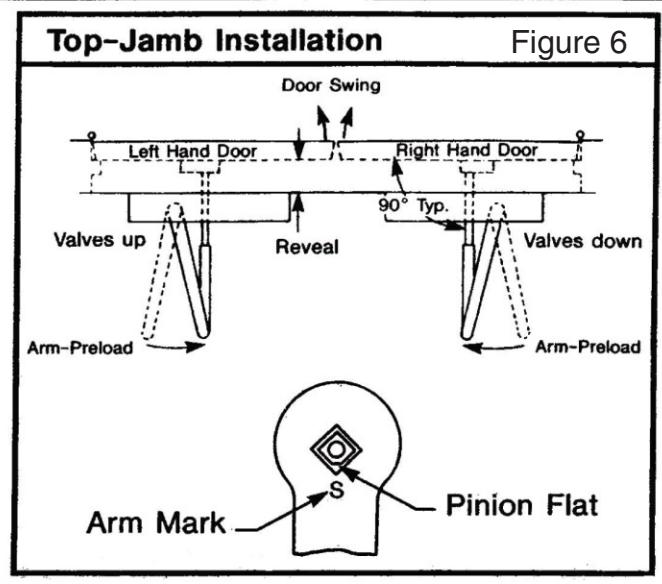

• Check hand of door: right or left (see Figure 6, page 3). Make sure that door opens the full angle desired and latches without any binding action or interference. Note that hold open units will require that door swing five (5) degrees past hold open point to dead stop position.
• Always use sex nuts and bolts to mount arm foot and to mount closer plate in flush partitions.
• Top Jamb Unitrols are supplied with arm rod UNI-E according to frame reveal. An arm number is stamped on these arm rods as shown on Figures 3 and 4 (page 2).

UNI-J7500 (DA) (H) ® Unitrol Series

Figure 2

4

Figure 3

Figure 4

	Figure 5

Installation Sequence	Remarks

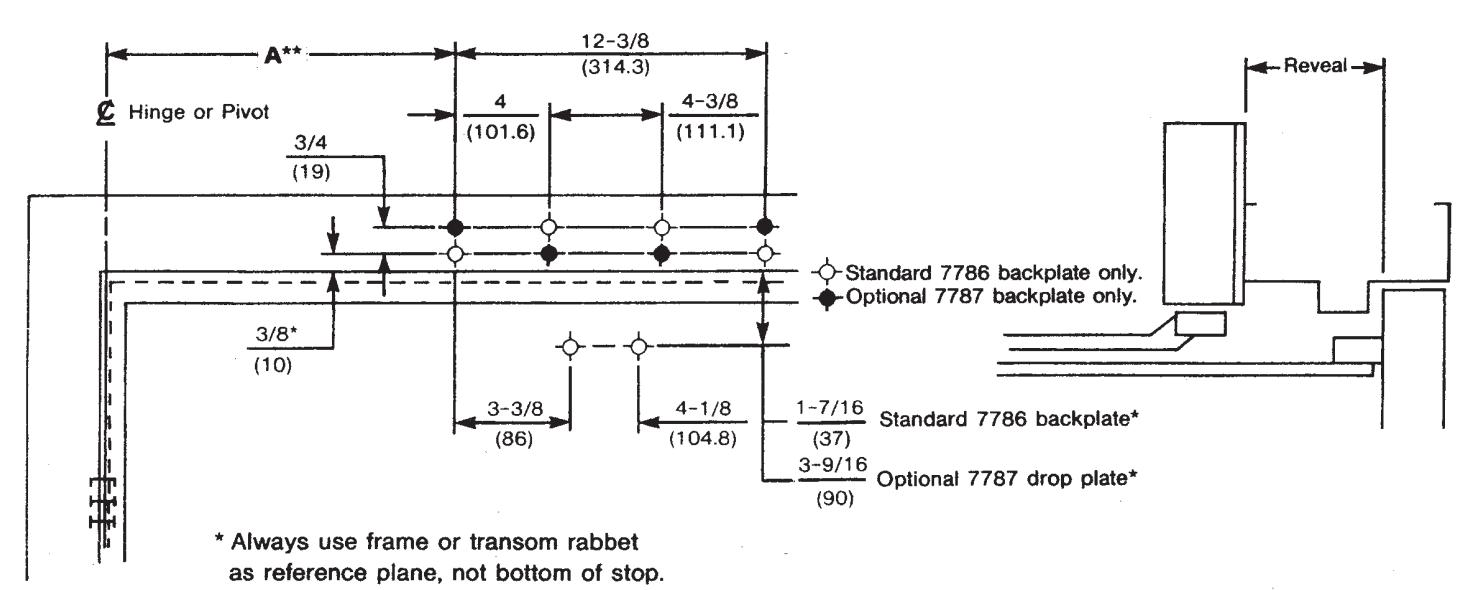

See figure 2 and select template dimensions Note: Separate template required for other applications	1¾" (44mm.) thick door on 4½" (114mm.) wide hinges or ¾" (19mm.) offset-pivots: figure 3. 1¾" (44mm.) thick door on center-pivots: figure 4. Frame reveals and door opening angles as charted: shock absorber will permit five (5) degrees of door travel beyond hold-open position.
Locate holes on frame trim face, stop-side.	Four (4) for 7786 backplate.
Locate holes on door	Two (2) for arm-foot.
Prepare door and frame for fasteners.	See chart "Preparation for Fasteners" (figure 5). Note: Use sex-bolts in frames of flush partitions.
Mount closer plate and install closer with power-adjustment-nut toward lock-stile.	Right hand-valves down Left hand-valves up
Disassemble rod-unit from arm-assembly and install on door.	Rod under shock-absorber and closest possible to lock-stile (see figures 2 and 6)
Mount main arm onto closer pinion shaft, aligning proper arm mark with pinion flat. Secure with main arm screw.	Arm Mark "S" See figure 6.
Insert connecting-rod into slide-unit and preload arm. Secure with rod-screws.	Adjust rod to perpendicular with door. See figure 6.
Adjust closer and install cover.	See "Unit Adjustment" on back page.

3

The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.

Adjustments

Closing Speed Controls (Figure 8.)

• · Valve "S" Controls Sweep Range.
• · Valve "L" Controls Latch Range.
• Valve "D" Controls Optional Delay Range.

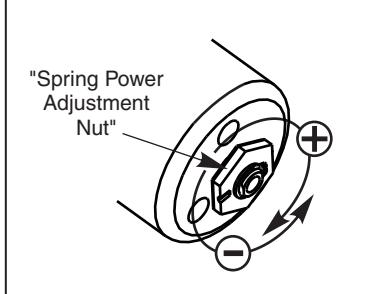

Closing Power Control Figure 7

For UNI-J7500 Series Only Set closer to desired size. For

recommended sizes, refer to the Power Adjustment Chart below.

Install closer per instructions with proper pre-load applied to arm then adjust spring power. Power adjustment will not work properly if closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty.

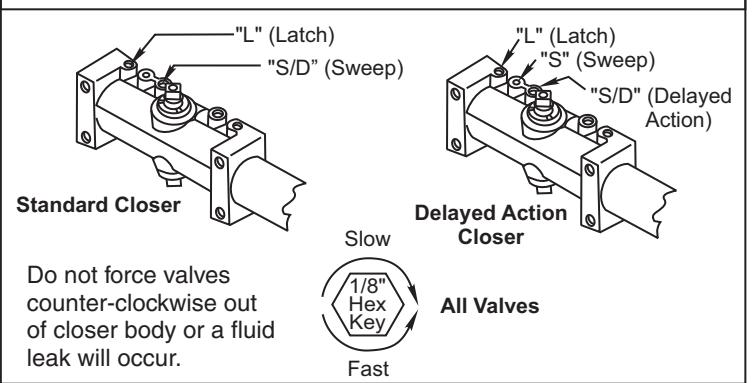

Closing Speed Controls Figure 8

Power Adjustment Chart	Figure 9
Door Size	UNI-J7500
	Turns from Zero
inches (mm)	Interior Door	Exterior Door
28-32 (711-813)	0	3
33-36 (838-914)	2	5
37-42 (940-1067)	5	7
43-48 (1092-1219)	8	11

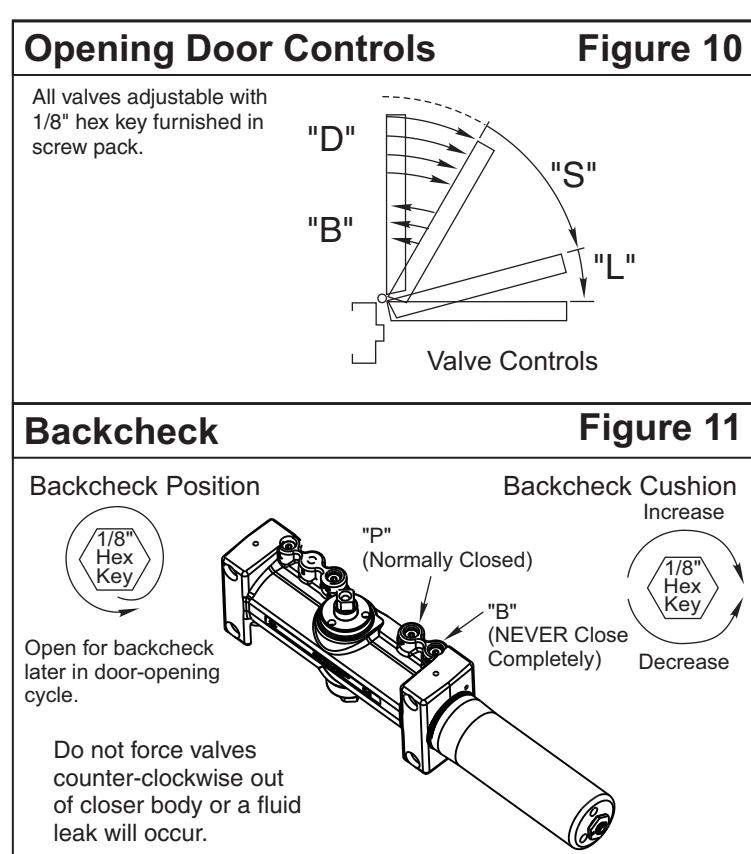

Opening Door Control (Figure 10)

• Backcheck ("B") valve controls the hydraulic resistance to door opening. NEVER close this valve completely – it is not to provide a positive stop.
• Backcheck position ("P") valve controls the door angle where backcheck cushioning starts. Valve normally closed.

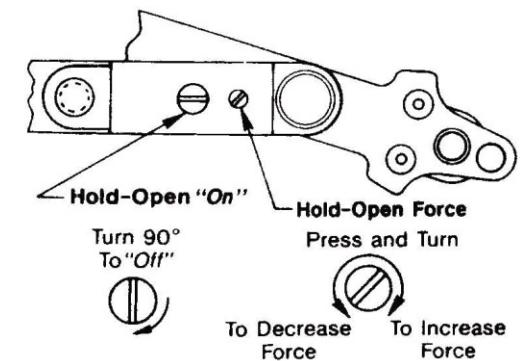

Hold Open controls are at arm elbow (models suffixed "H"). To select hold open on or hold open off and to adjust the hold open force, use screwdriver as illustrated below.

Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
