Norton Rixson 7500 Series Door Closer, Tri-Style (Regular, Parallel, Top Jamb), Hold Open Installation Instructi…_80-9377-3204-020

Open the original PDF document

7500H Non Handed Door Closer

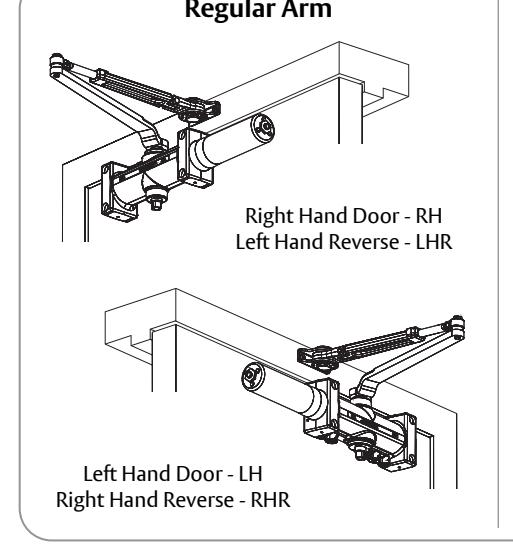

Regular Arm Top Jamb Mount Parallel Arm With or without DA suffix (delayed action) With or without M suffix (metal cover)

Hold Open Arm Models

Adjustable (Sizes 1-6)

7500-H J7500-H JL7500-H P7500-H

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

Ce produit peut vous exposer au plomb qui, dans l'état de la Californie, est reconnu pour causer le cancer, des anomalies congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez: www.P65warnings.ca.gov.

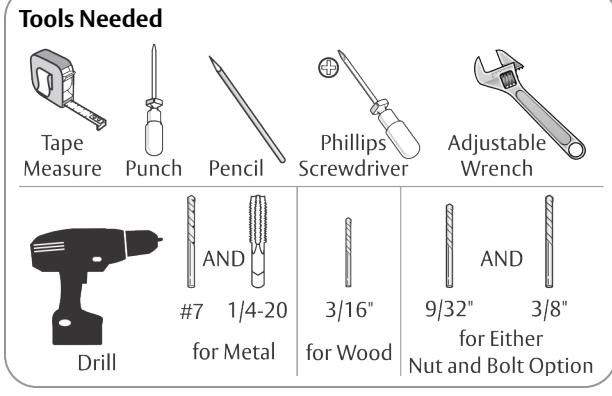

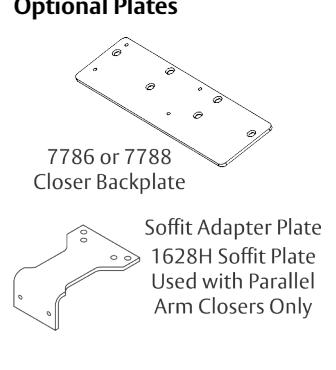

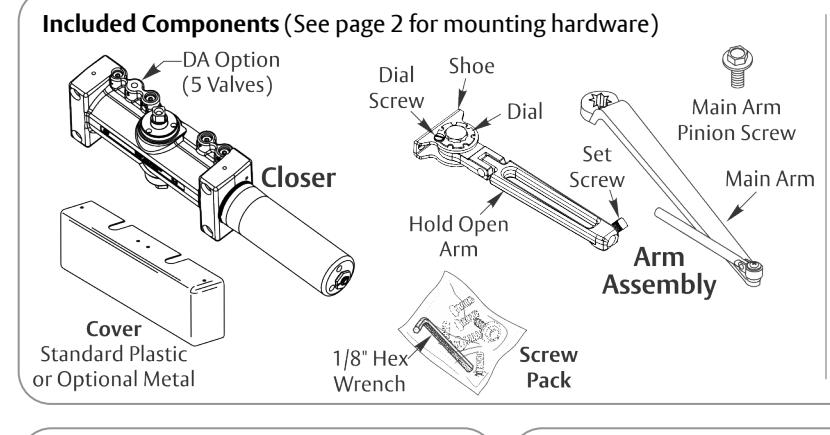

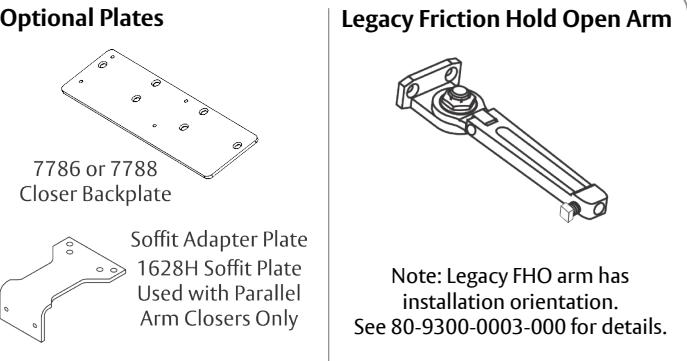

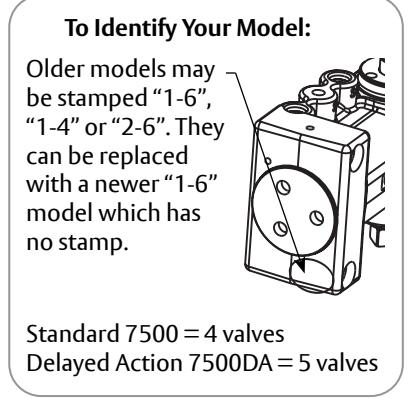

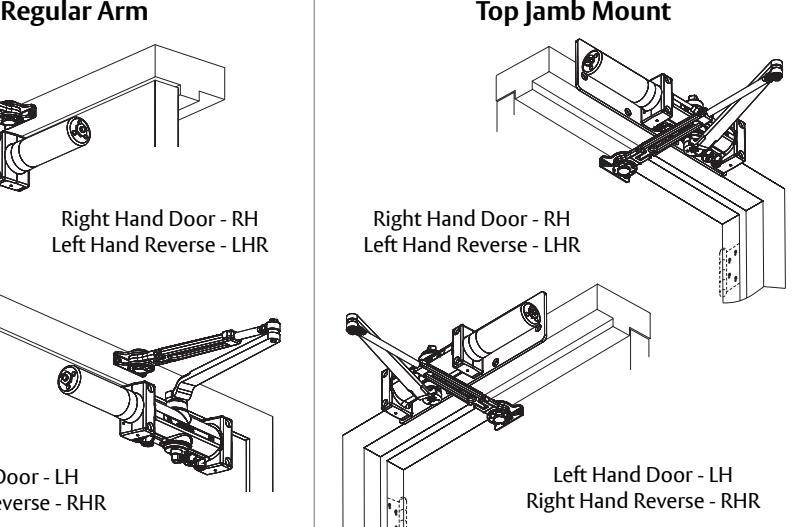

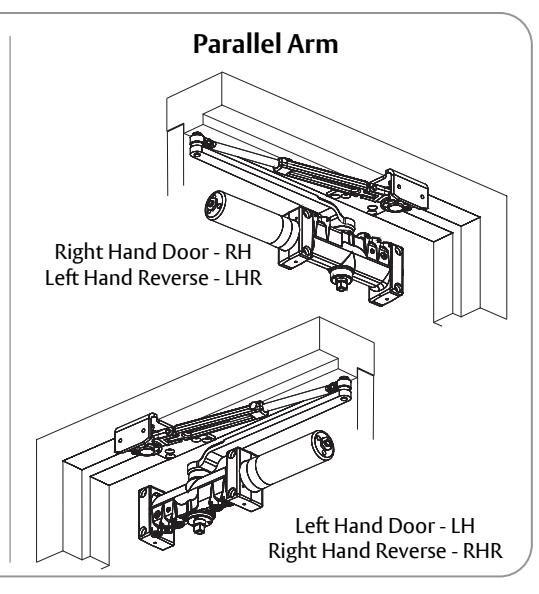

HAND OF LEFT HAND DOOR RIGHT HAND DOOR Right Hand Reverse Left Hand Reverse To Determine Your Hand of Door: To Identify Your Model:

Copyright © 2019, 2021, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.

7500H Hold Open Closer

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

For special applications, a separate door and frame preparation template is packed with these instructions. Use these instructions for installation sequence and closer adjustments only.
7500 Series closing force is adjustable from 1-6 as outlined in ANSI Standard A156.4. When closer is adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, it may not have adequate closing force to reliably close and latch door. Charted power adjustments in instructions are recommended where possible, to ensure proper door control.

Doors should be hung on ball bearing or anti-friction hinges.
A separate door stop is recommended.
Always consult door/frame manufacturer for fastener compatibility.
Door and frame must be properly reinforced.
Adjust closing time speed between 3 and 7 seconds from $90^{\circ}$ to $0^{\circ}$ .
These door closers should NOT be installed on exposed side (weather side) of exterior doors.
Dimensions are given in inches (millimeters).

	Mounting Hardware	Door or Frame	Drill
	Closer, H/O Shoe or Optional PA Bracket: 1/4-14 x 1-1/2 Oval Flat Head Mach. Screw	Wood	3/16" (4.76mm)
Dummin	Closer, H/O Shoe or Optional PA Bracket: 1/4-20 x 3/4 Oval Flat Head Mach. Screw	Metal	Drill #7 (.201 dia. or 5.10mm) Tap 1/4-20
Timi	H/O Shoe to Optional PA Bracket: 1/4-20 x 1/2 Oval Flat Head Mach. Screw	Метаі	Drill #7 (.201 dia. or 5.10mm) Tap 1/4-20
	Closer: Sleeve Nut and Bolt (SNB) (optional)	Hollow Metal	9/32" (7.00mm) thru 3/8" (9.50mm) door face opposite to closer
	Closer: Sleeve Nut and Bolt (SNB) (optional)	Aluminum or Wood	3/8" (9.50mm) thru
	Closer: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.00mm) thru 3/8" (9.50mm) dia. x 3/8" (9.500mm) deep, door face opposite to closer

Closer Adjustments

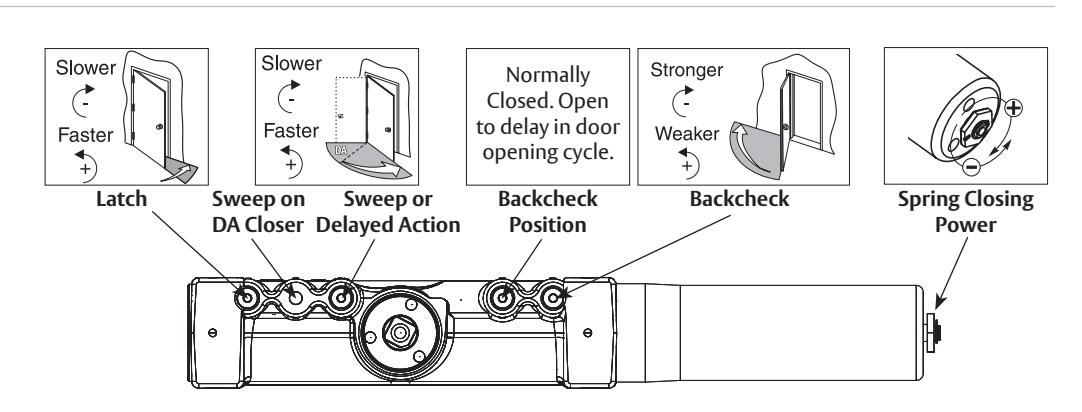

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve.

Door must be open to adjust spring closing power. Refer to specific charts on installation pages. Do not use a power drill. Warranty will be void.

Cover Do not over tighten screws. Regular Arm Top Jamb Mount Parallel Arm

1. Prepare door and frame.

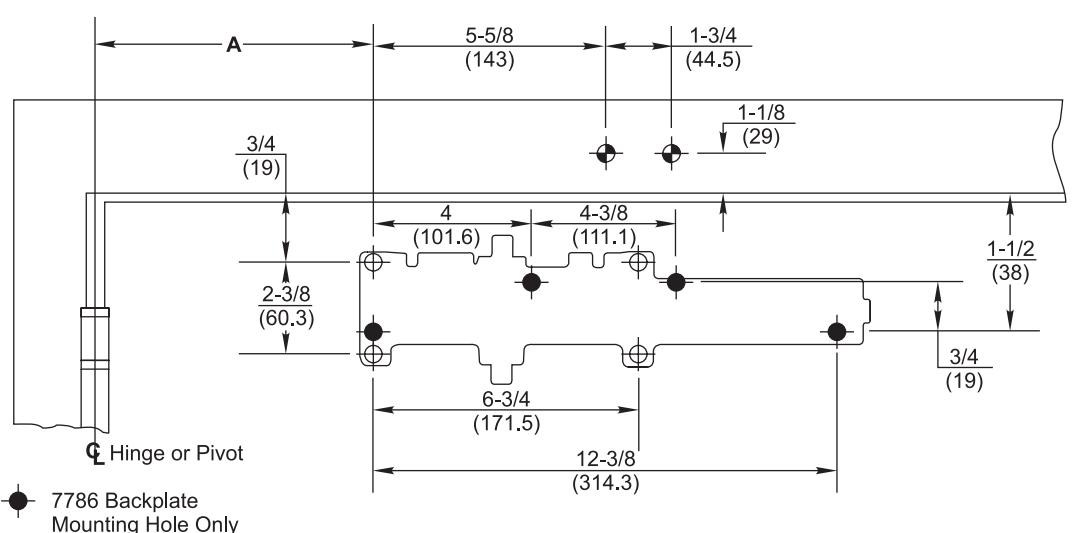

	Dim A
Opening	inches (mm)
To 100°	7-5/8 (194)
101° to 120°	6-5/8 (168)
121° to 150°	4-5/8 (117)
151° to 180°	4-1/8 (105)

Power Adjustment Chart
Maximum Interior Door Size inches (mm)	Maximum Exterior Door Size inches (mm)	Turns from Zero
32 (813)	28 (711)	5
36 (914)	34 (864)	8-1/2
42 (1067)	38 (965)	11
52 (1321)	42 (1067)	13-1/2
60 (1524)	48 (1219)	16-1/2

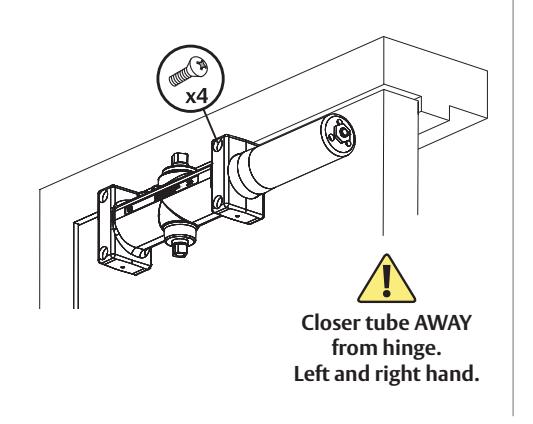

2. Mount closer to door. 3a. Remove dial from Hold Open arm.

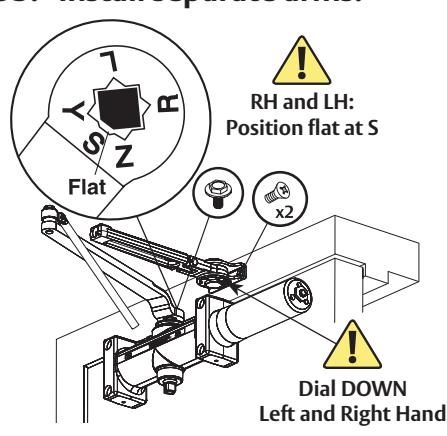

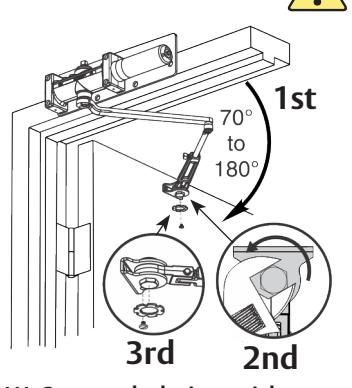

3b. Install separate arms.

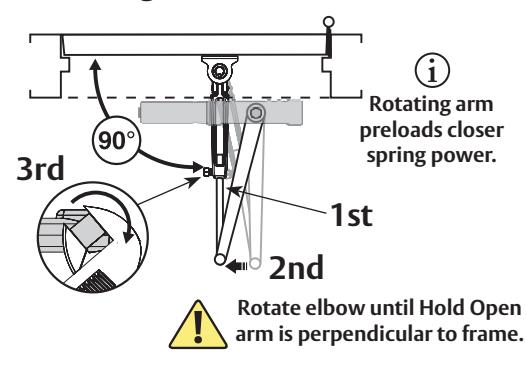

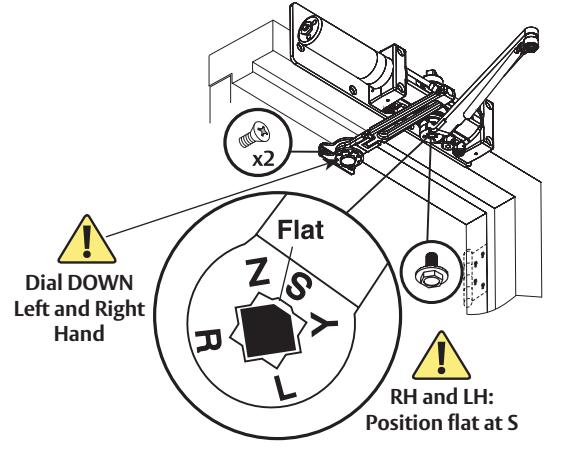

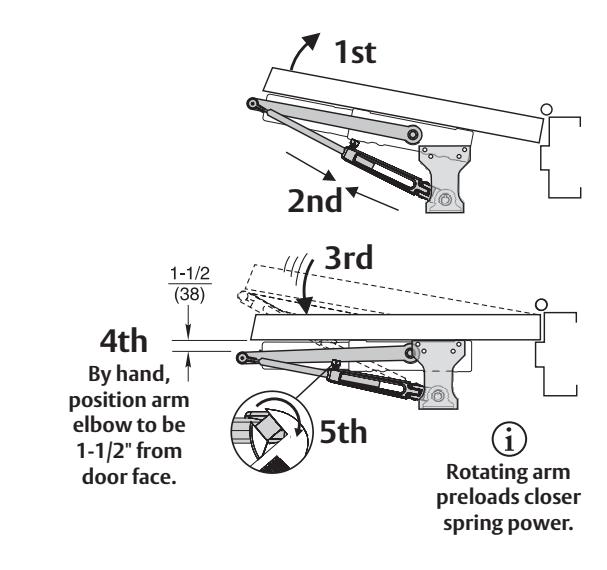

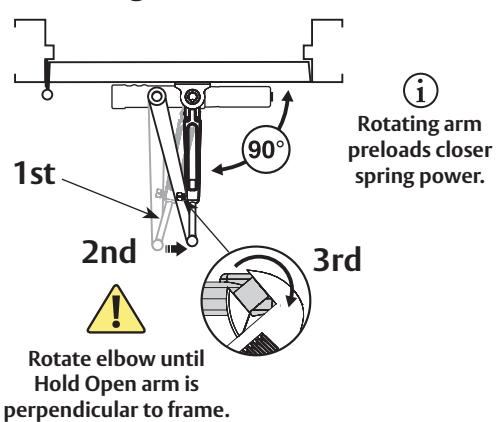

4. Connect arms, preload spring and tighten set screw.

5. Set Hold Open. Keep door open in position until dial screw secures dial.

You've installed the 7500H Hold Open Closer - Regular Arm.

Go to page 2 for closer adjustments and cover installation.

RIXSON 7500H Top Jamb Mount Installation (Right Hand Shown)

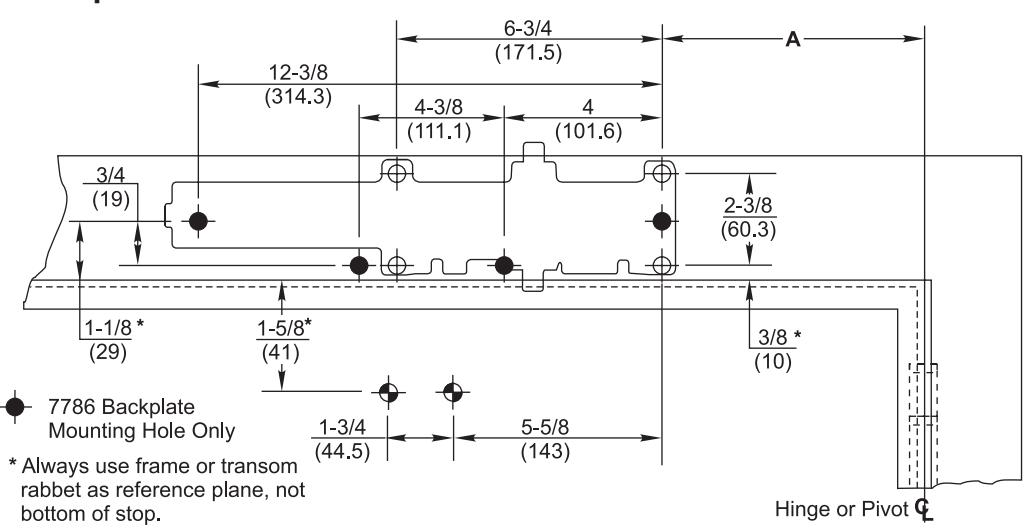

1. Prepare door and frame.

	Dimension A
Opening	inches (mm)
To 100°	7-5/8 (194)
101° to 120°	6-5/8 (168)
121° to 150°	4-5/8 (117)
151° to 180°	4-1/8 (105)

Power Adjustment Chart
Maximum Interior Door Size inches (mm)	Maximum Exterior Door Size inches (mm)	Turns from Zero
32 (813)	28 (711)	5
36 (914)	34 (864)	8-1/2
42 (1067)	38 (965)	11
52 (1321)	42 (1067)	13-1/2
60 (1524)	48 (1219)	16-1/2

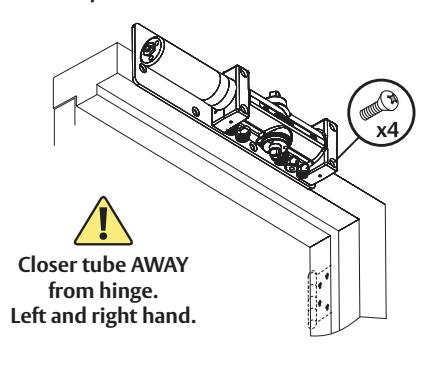

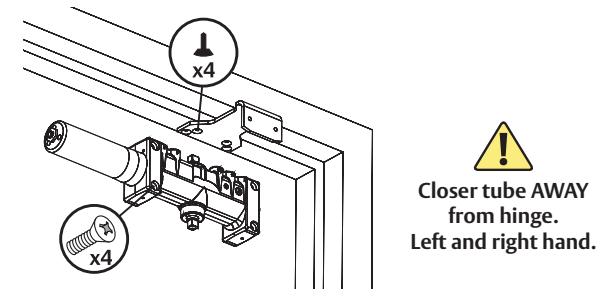

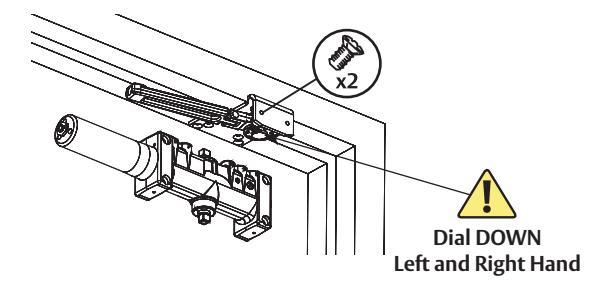

2. Mount optional backplate and/or closer to frame.

3a. Remove dial from Hold Open arm.

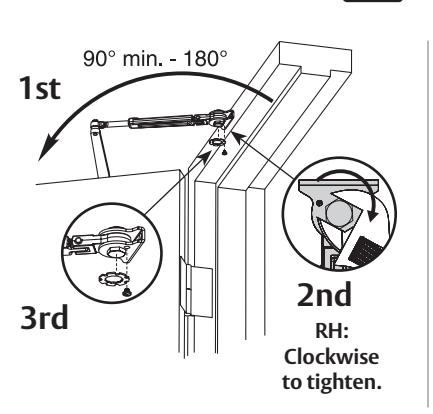

3b. Install separate arms.

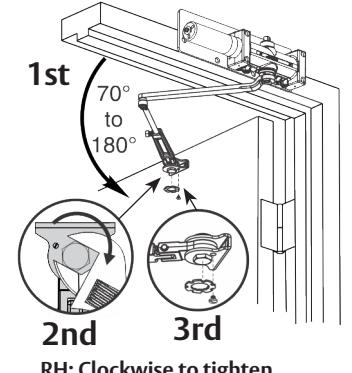

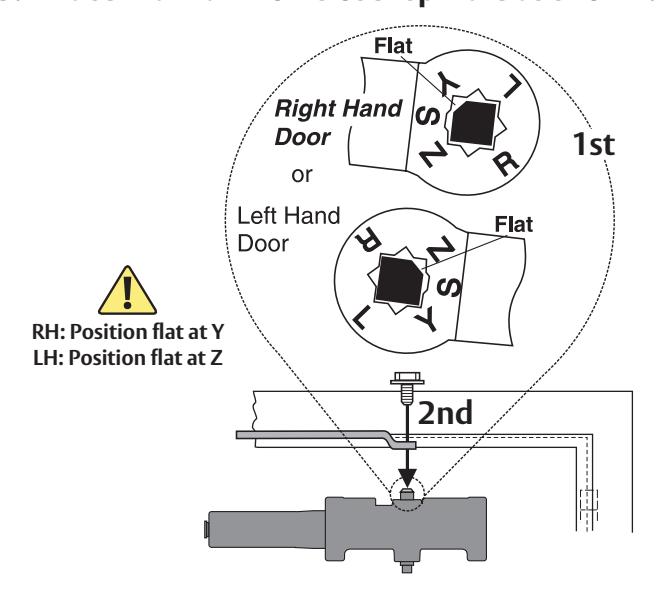

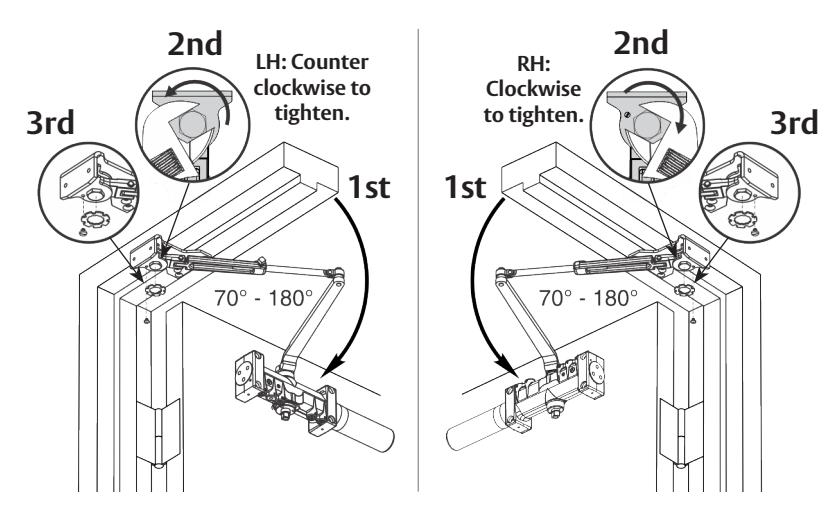

4. Connect arms, preload spring 5. Set Hold Open. and tighten set screw.

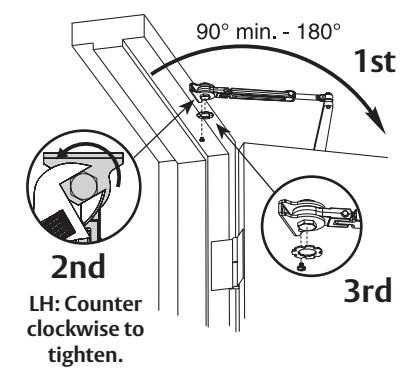

LH: Counter clockwise to tighten. RH: Clockwise to tighten.

Keep door open in position until dial screw secures dial.

You've now installed the 7500H Hold Open Closer - Top Jamb Mount.

Go to page 2 for closer adjustments and cover installation.

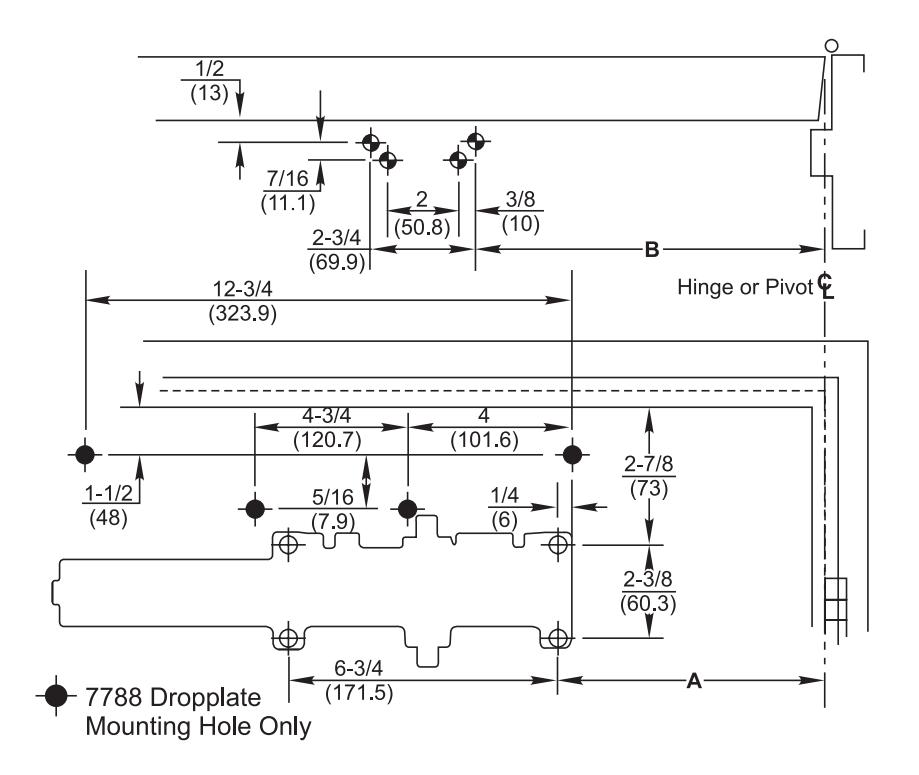

1. Prepare door and frame.


	Dimension A	Dimension B
Opening	inches(mm)	inches (mm)
To 100°	8-3/4 (222)	9-1/4 (235)
101° to 130°	7-1/4 (184)	7-3/4 (197)
131° to 150°	6-1/4 (159)	6-3/4 (171)
151° to 180°	5-1/4 (133)	5-3/4 (146)

Power Adjustment Chart
Maximum Interior Door Size inches (mm)	Maximum Exterior Door Size inches (mm)	Turns from Zero
30 (762)	26 (660)	7
34 (864)	30 (762)	9
38 (965)	36 (914)	12-1/2
48 (1219)	42 (1067)	14-1/2
54 (1372)	48 (1219)	16-1/2
