Norton Rixson 7500 Series Door Closer, 7700PTO-DE Support Unit, Pull Side, Hinge Side Reveal 1, 8 – 3 Templat…_7378-1811

ı	Contonino or mingo or proce		Step (32)	(41)	) (37)
	Template information based upon use of 4-1/2" hinges or 3/4" offset pivots.	Preparation for Fasteners
	Dimensions are shown in inches and millimeters (mm).		Fasteners [	Door or Fran	me Drill-Sizes
	Hollow metal doors require channel or box-type reinforcement when thru-bolt mount is specified.		1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
	Sleeve nuts and bolts are required for wood or plastic faced fire-door installations.	Standard		Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face
	Minimum thickness recommended for reinforcements in hollow metal doors and frames is .1046 (2.66) unless noted otherwise.		Sleeve nuts and bolts	Aluminum

• Minimum ceiling clearance for closer unit is 2" (50).
• Maximum door opening is 105°.

Charted dimensions measured from door rabbet.

	rieparation for rastellers
	Fasteners D	Ooor or Frame Drill-Sizes
	1/4" - 20 machine screw	Metal	Drill: #7 (0.201" dia.) Tap: 1/4" - 20
Standard	Sleeve nuts and bolts	Hollow Metal	9/32" (7 mm) through; 3/8" (9.5 mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5 mm) through
Optional	Through-bolts and grommet-nuts	All	9/32" (7 mm); 3/8" (9.5 mm) dia. x 3/8" (9.5 mm) deep on door opposite to closer

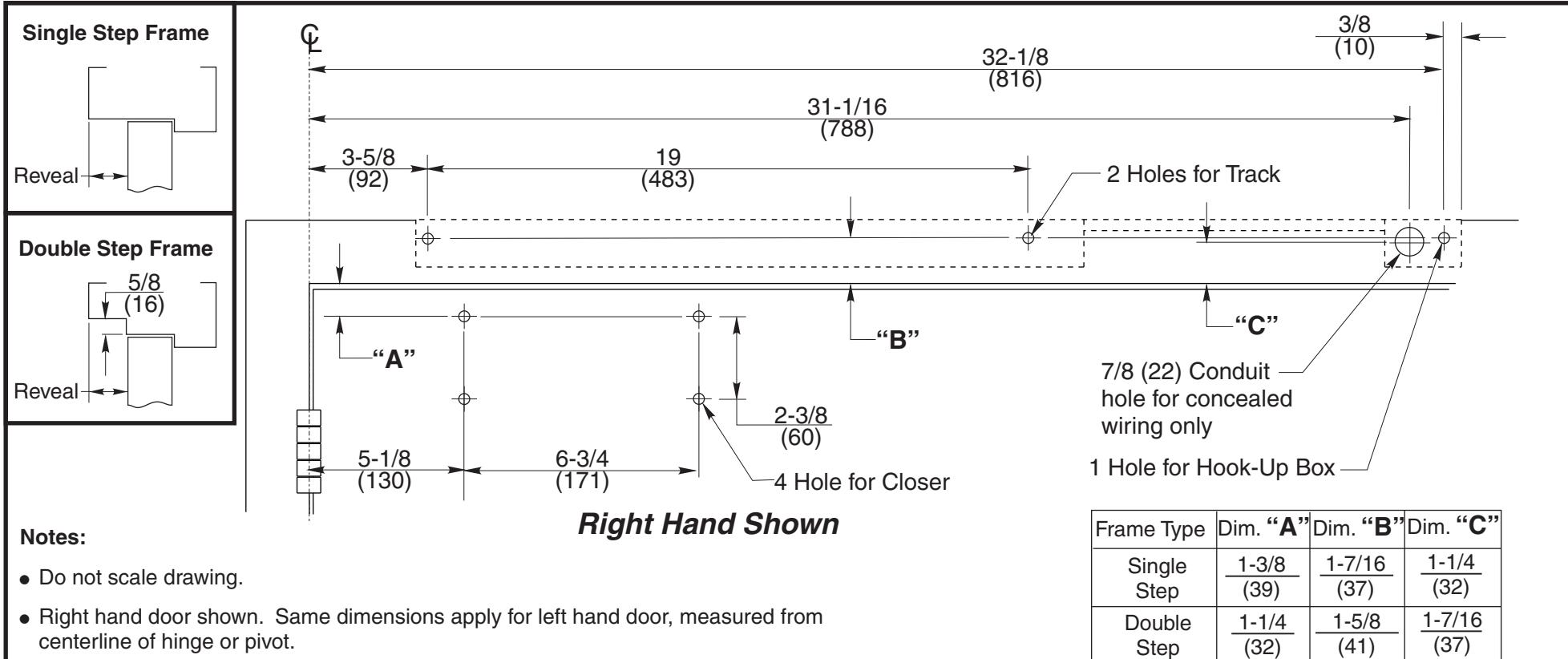

Norton Series 7700PTO-DE Support Unit For Installations with a Double Egress Frame Combination Door Closer-Holder with Single Point Hold Open Hinge (Pull) Side of Door Installation with Hinge Side Frame Reveals 1/8" to 3" (3 to 76mm)

RIXSON ASSA ABLOY

TEMPLATE NUMBER

7378-1811

02/22

2
