7500SS Series Door Closer

Non Hold Open Regular, Top Jamb and Parallel Arm Installation Instructions

Multi Size 1-6

7500SS J7500SS JL7500SS P7500SS

ASSA ABLOY

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadiustment.

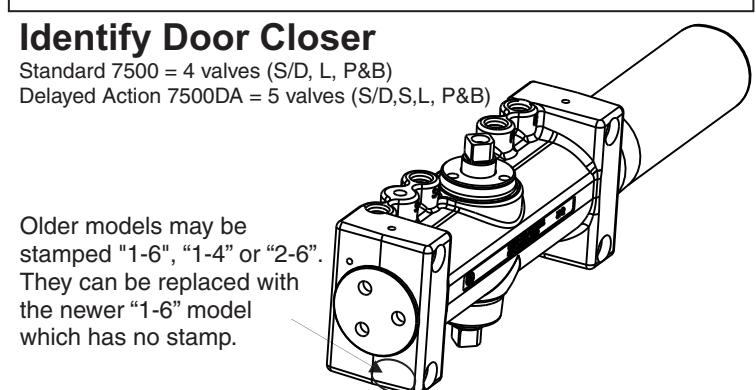

• With or without suffix "DA" (Delayed Action) closing.

Note:

The closing force for series 7500 door closer is adjustable from a size 1 to a size 6, as outlined in ANSI Standard A156.4. When this series of door closer is installed and adjusted to conform to ADA reduced opening force requirements (5 lbs max.) for interior doors, it may not have adequate closing force to reliably close and latch the door. Power adjustments charted on pages 3,4 and 5 are recommended where possible, to ensure proper door control.

For Special Applications a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.

Regular Arm Installation

Closer mounts on hinge (pull) side of door.

Top Jamb Installation

Closer mounts on frame face on opposite to hinge (push) side of door.

Parallel Arm Installation

Closer mounts on opposite to hinge (push) side of door. See Page 5.

Closer cover not shown

Components: Figure 1

  • It is recommended that the door, on which the door closer will be installed, be hung on ball bearing hinges. Door must swing freely.
  • A separate door stop, supplied by others, is recommended to prevent damage to the door closer, closer arm; or to the door, frame or adjacent walls.
  • Door and Frame must be properly reinforced, or use of special fasteners employed, to prevent the mounting screws from pulling out.
  • All dimensions are given in inches with corresponding metric dimensions (millimeters) in parentheses.
  • Door closer should never be installed on the exterior of a building.

Preparation for Fasteners (Figure 2)
Fasteners Door or Frame Drill-Sizes
1/4" - 20 machine screw Aluminum Drill: #7 (0.201" dia.)
Tap: 1/4" - 20
Standard #14 type "A"
S. M. Screw 		Wood
(see Note) 		7/32" (5.56mm)
1/4" - 20 machine screw Metal Drill: #7 (0.201" dia.)
Tap: 1/4" - 20
Sleeve nuts and bolts
Through-bolts and
grommet-nuts 		Hollow
Metal 		9/32" (7 mm) through;
3/8" (9.5 mm) door face
opposite to closer
Optional Aluminum
or Wood 		3/8" (9.5 mm) through
All 9/32" (7 mm);
3/8" (9.5 mm) dia. x
3/8" (9.5 mm) deep on
door opposite to closer

Note: Wood doors/frames. Pilot hole must be drilled when using Self-Drilling Screws.

Always consult door/frame manufacturer for fastener compatibility with the material of their door/frame.

Do Not Scale Drawing

Right Hand Door Shown

Dimensions are in inches (mm).

7786SS Backplate Mounting Hole Only

Dimension A
Opening inches mm
To 100° 7-5/8 194
101° to 120° 6-5/8 168
121° to 150° 4-5/8 117
151° to 180° 4-1/8 105

Installation Sequence

• Select angle of opening and use dimensions shown in template and chart to locate 4 holes \oplus on door for closer body (or 4 holes + for optional 7786SS backplate) and 2 holes + on frame face for arm shoe.

For applications that are different from above, a separate template will be supplied for door and frame preparation.

  • Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
  • Fasten optional 7786SS backplate to door, only if it is required for the door conditions.
  • Install closer body with tube end away from hinge, with valves: Down for Left Hand door for Right Hand door.
  • Remove forearm screw from elbow joint and disassemble arm. see Figure 1, Page 2. Fasten arm shoe (forearm) to frame face.
  • Install main arm onto closer pinion shaft, aligning arm mark "S" with the one flat corner of the square shaft "Pinion Flat", see illustration at right. Secure with hex head main arm screw and flat washer.

· Close door and adjust forearm length so that the forearm is perpendicular (at a 90° angle) to the door when it is connected to the main arm. Install and tighten forearm screw and washer.

• Make closer adjustments, if required, using information below and on Page 6, then install closer cover.

Power Adjustment Chart
Maximum
Interior
Door Size
inches / (mm) 		Maximum
Exterior
Door Size
inches / (mm) 		Turns
from
Zero
32 / (813) 28 / (711) 5
36 / (914) 34 / (864) 8-1/2
42 / (1067) 38 / (965) 11
52 / (1321) 42 / (1067) 13-1/2
60 / (1524) 48 / (1219) 16-1/2

NOTE: Maximum of 16-1/2 turns (360°) of Power Adjustment Nut.

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

Copyright © 2004, 2014, 2022, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.

Experience a safer and more open world

ASSA ABLOY

Do Not Scale Drawing

Left Hand Door Shown

Dimensions are in inches (mm).

7786SS Backplate Mounting Hole Only

Dimension A
Opening inches mm
To 100° 7-5/8 194
101° to 120° 6-5/8 168
121° to 150° 4-5/8 117
151° to 180° 4-1/8 105

Installation Sequence

Select angle of opening and use dimensions shown in template and chart to locate 4 holes on frame for closer body (or 4 holes for optional 7786SS backplate) and 2 holes for door for arm shoe.

For applications that are different from above, a separate template will be supplied for door and frame preparation.

  • Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
  • Fasten optional 7786SS backplate to frame, only if it is required for the frame conditions.

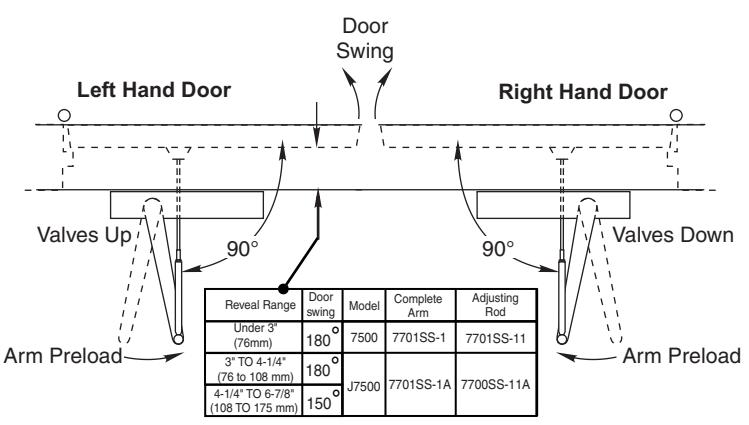

  • Install closer body with tube end away from hinge, with valves: Up for Left Hand door Down for Right Hand door.
  • Remove forearm screw from elbow joint and disassemble arm, see Figure 1, Page 2. Fasten arm shoe (forearm) to door. Note that a longer adjusting rod or different arm might be required for your frame conditions, see illustration with "reveal range chart" to the right.
  • Install main arm onto closer pinion shaft, aligning arm mark "S" with the one flat corner of the square shaft, "Pinion Flat", see illustration at right. Secure with hex head main arm screw and flat washer.

Close door and adjust forearm length so that the forearm is perpendicular (at a 90° angle) to the door when it is connected to the main arm. Install and tighten forearm screw and washer.

• Make closer adjustments, if required, using information below and on Page 6, then install closer cover.

Power Adjustment Chart
Maximum
Interior
Door Size
inches / (mm) 		Maximum
Exterior
Door Size
inches / (mm) 		Turns
from
Zero
32 / (813) 28 / (711) 5
36 / (914) 34 / (864) 8-1/2
42 / (1067) 38 / (965) 11
52 / (1321) 42 / (1067) 13-1/2
60 / (1524) 48 / (1219) 16-1/2
NOTE: Maximum of 16-1/2 turns

(360°) of Power Adjustment Nut.

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

7500SS Series (Parallel Arm Mount)

Dimension A Dimension B
Opening inches mm inches mm
To 100° 8-3/4 222 9-1/4 235
101° to 130° 7-1/4 184 7-3/4 197
131° to 150° 6-1/4 159 6-3/4 171
151° to 180° 5-1/4 133 5-3/4 146

Do Not Scale Drawing Left Hand Door Shown Dimensions are in inches (mm).

7788SS Dropplate Mounting Hole Only

Installation Sequence

• Select angle of opening and use dimensions shown in template and chart to locate 4 holes on door for closer body ( or 4 holes for optional 7788SS dropplate ) and 4 holes on underside of frame for soffit plate.

For applications that are different from above, a separate template will be supplied for door and frame preparation.

  • Prepare door and frame for fasteners using "Preparation for Fasteners" chart, Figure 2, Page 2.
  • Fasten optional 7788SS backplate to door, only if it is required for the door conditions.
  • Install closer body with tube end away from hinge, with valves: Down for Left Hand door UP for Right Hand door.
  • Fasten soffit plate to frame.
  • Remove forearm screw from elbow joint, and disassemble shoe unit, see Figure 1, Page 2. Fasten forearm (adjusting rod end) to soffit plate on frame using screw and washer assembly from screw pack.
  • Install main arm onto closer pinion shaft following instructions below. The one flat corner of the square shaft " Pinion Flat ", must be aligned with the corner mark on arm:

Arm mark "Y" for Right Hand door Arm mark "Z" for Left Hand door . Secure with hex head main arm screw and flat washer.

• Close door and pull main arm away from door face so that elbow is 1-1/2" (38mm) off of door face. Adjust Forearm length and reassemble onto main arm. Install and tighten forearm screw and washer.

• Make closer adjustments, if required, using information below and on Page 6, then install closer cover.

Power Adjustment Chart
Maximum
Interior
Door Size 		Maximum
Exterior
Door Size
inches / (mm) inches / (mm) 		Turns
from
Zero
30 / (762) 26 / (660) 7
34 / (864) 30 / (762) 9
38 / (965) 36 / (914) 12-1/2
48 / (1219) 42 / (1067) 14-1/2
54 / (1372) 48 / (1219) 16-1/2
NOTE: Maximum of 16-1/2 turns

(360°) of Power Adjustment Nut.

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

"Spring Power Adjustment Nut" + -

The ASSA ABLOY Group is the global leader in access solutions. Every day we help people feel safe, secure and experience a more open world.

Adjustments

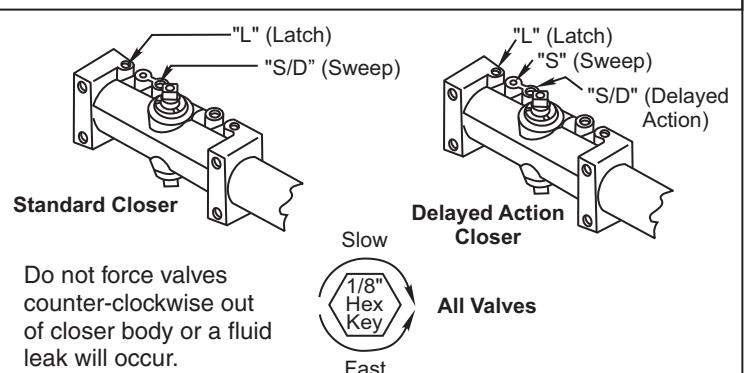

Closing Speed Controls (Figure 4A or 4B and 5.)

  • Valve "S/D" Controls Sweep Range on Standard closer (or Delayed Range on Delayed Action closer).
  • · Valve "L" Controls Latch Range.
  • Valve "S" Controls Sweep only on Delayed Action closer.

Closing Power Control Figure 3 Set closer to desired size. For recommended sizes, refer to the Power Adjustment Chart on

pages 3,4,& 5. Install prop the pov prop pre-le 1: ac deci

Install closer per instructions with the proper pre-load applied to the arm then adjust spring power. The power adjustment will not work properly if the closer spring is not pre-loaded. To increase power, use 11/16" wrench to turn power adjustment nut clockwise. To decrease power, turn nut counter clockwise.

DO NOT use a power drill or driver to turn adjustment nut. This will damage closer and void warranty.

Closing Speed Controls Figure 4

Adjust Closing Speed Time to between 3-7 seconds from 90°. Use of door by handicapped, elderly or small children may require greater closing time.

Closing Speed Controls Figure 5

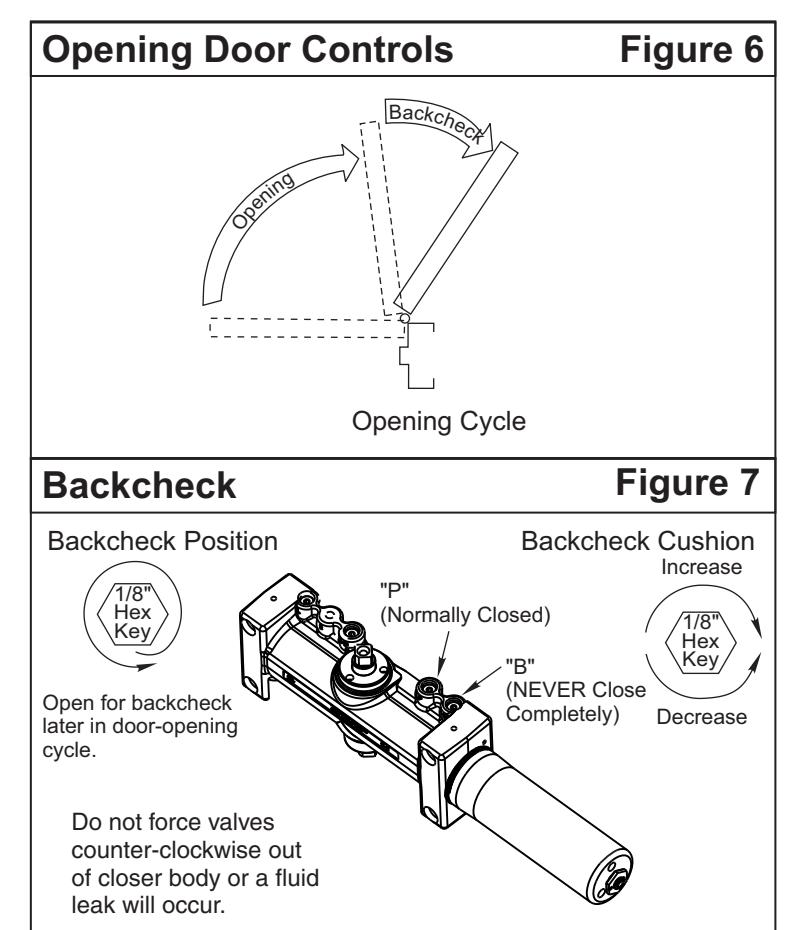

Opening Door Control (Figure 6.)

  • Backcheck ("B") valve controls the hydraulic resistance to door opening. NEVER close this valve completely – it is not to provide a positive stop.
  • Backcheck position ("P") valve controls the door angle where backcheck cushioning starts. Valve normally closed.

Technical Product Support: Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
