Norton Rixson 7200 Series Electromechanical Closer, 7290MPI, 7290MPS, with 790 Fire Block, Non-Hold Open Install…_80-9372-1072-020

ASSA ABLOY

Series 7290MPI x 790 (infinite hold open range) Series 7290MPS x 790 (selective hold open range) Non-Hold-Open Models

Installation Instructions

For wood doors 1- 3/4" to 2 -1/4" (45-57mm) thick hung in a hollow metal frame Standard butt hinge Labeled 20 minute fire

door openings

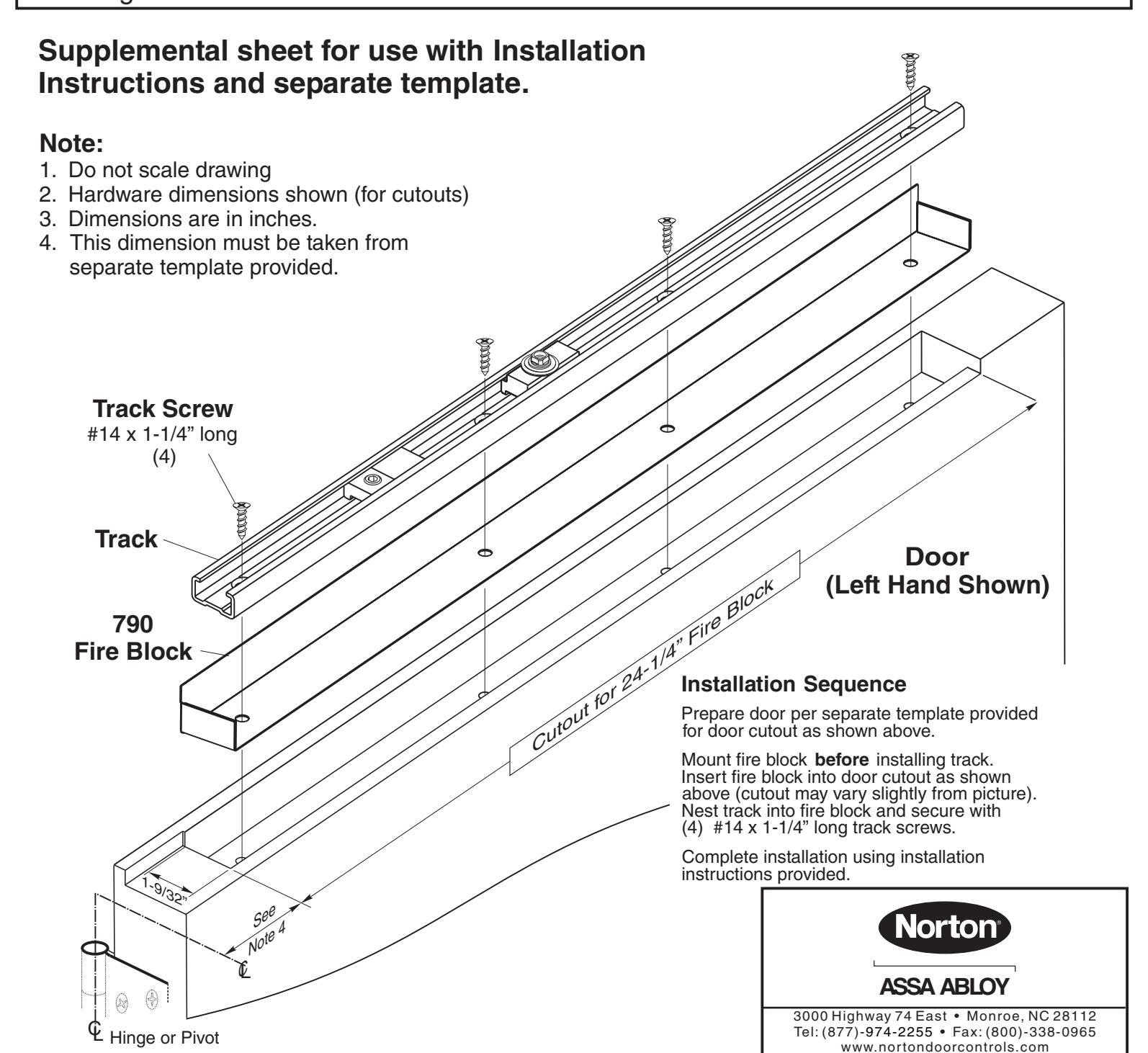

Fire Block for

Overhead Concealed Closers Holder Releasing Device with Rigid Slide Arm

CAUTION

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These instructions should be followed to avoid the possibility of misapplication or misadjustment.
