Notes:

• 1. Do not scale drawing.
• 2. Right hand shown.
• 3. All dimensions are in inches.
• 4. Template drawing for reference only.

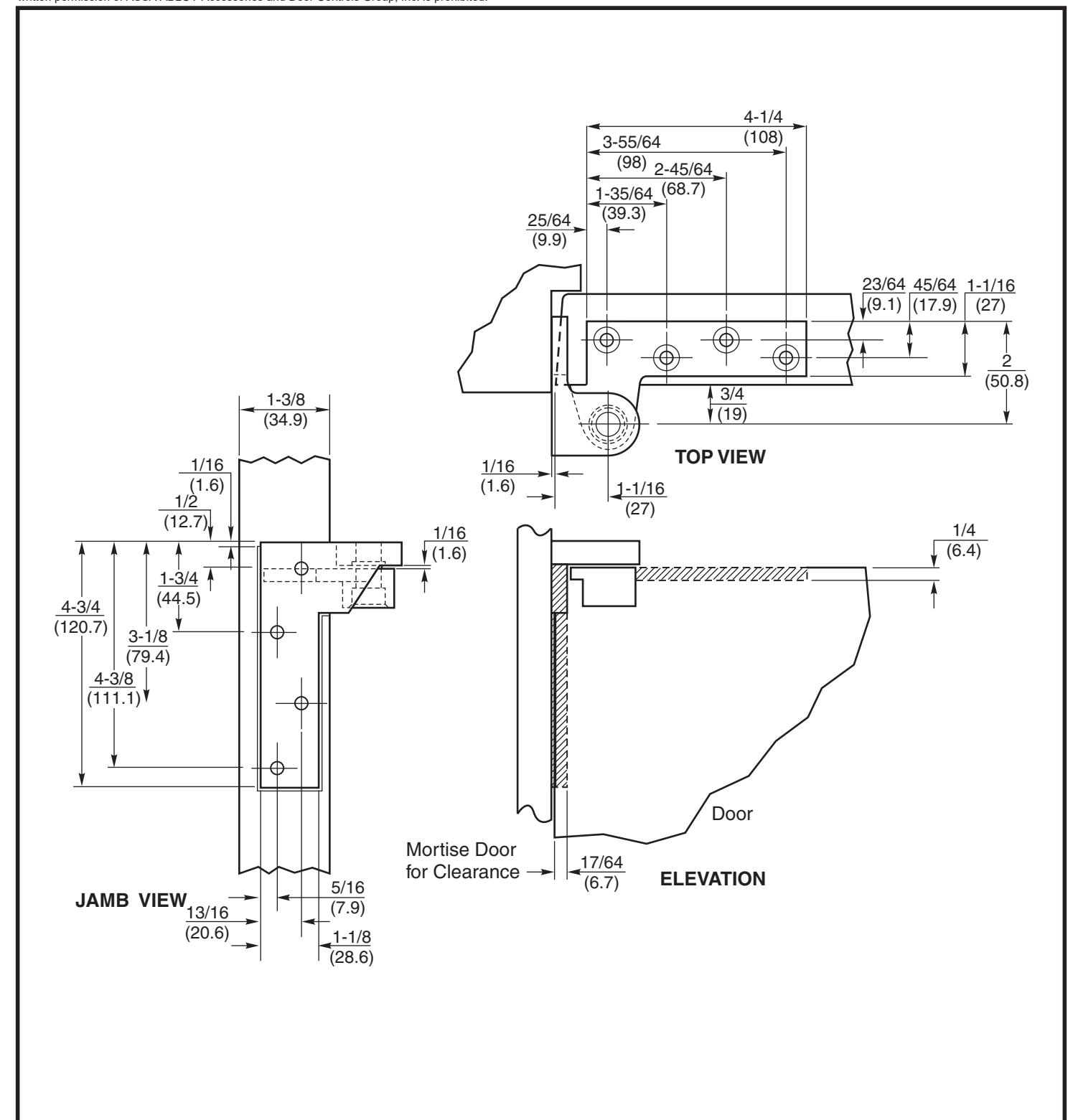

680 Top Pivot 3/4" Offset, Non Handed Surface Mount Jamb / Double Mortise Door

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER REV

IS-680 3 05-24

DATE

Approved 2024-05-24

TEMPLATE NUMBER

IS-680

REV

3

DATE

05-24

Approved 2024-05-24

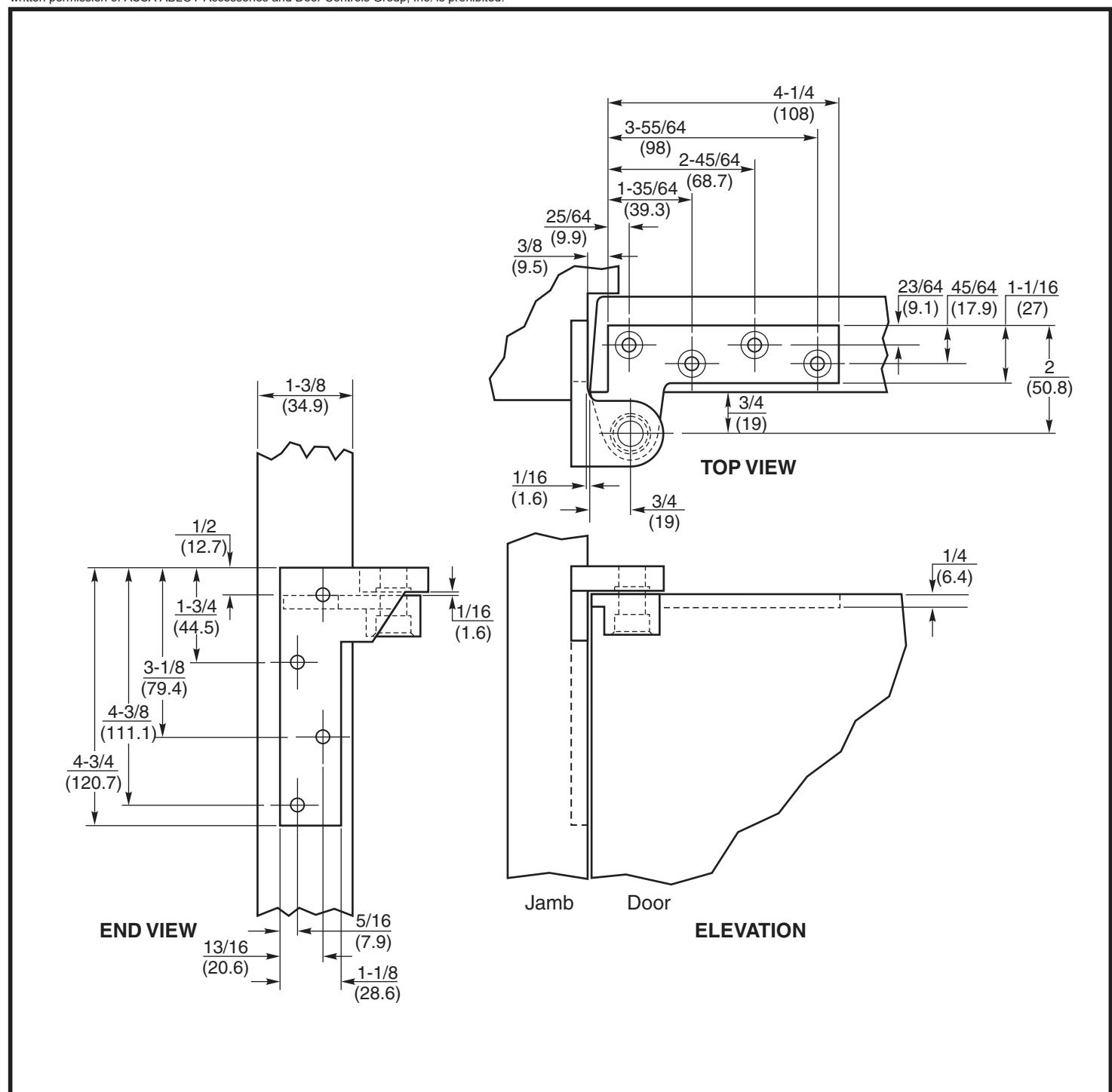

Mortise Jamb / Header & Door

Notes:

• 1. Do not scale drawing.
• 2. Right hand shown.
• 3. All dimensions are in inches.
• 4. Template drawing for reference only.

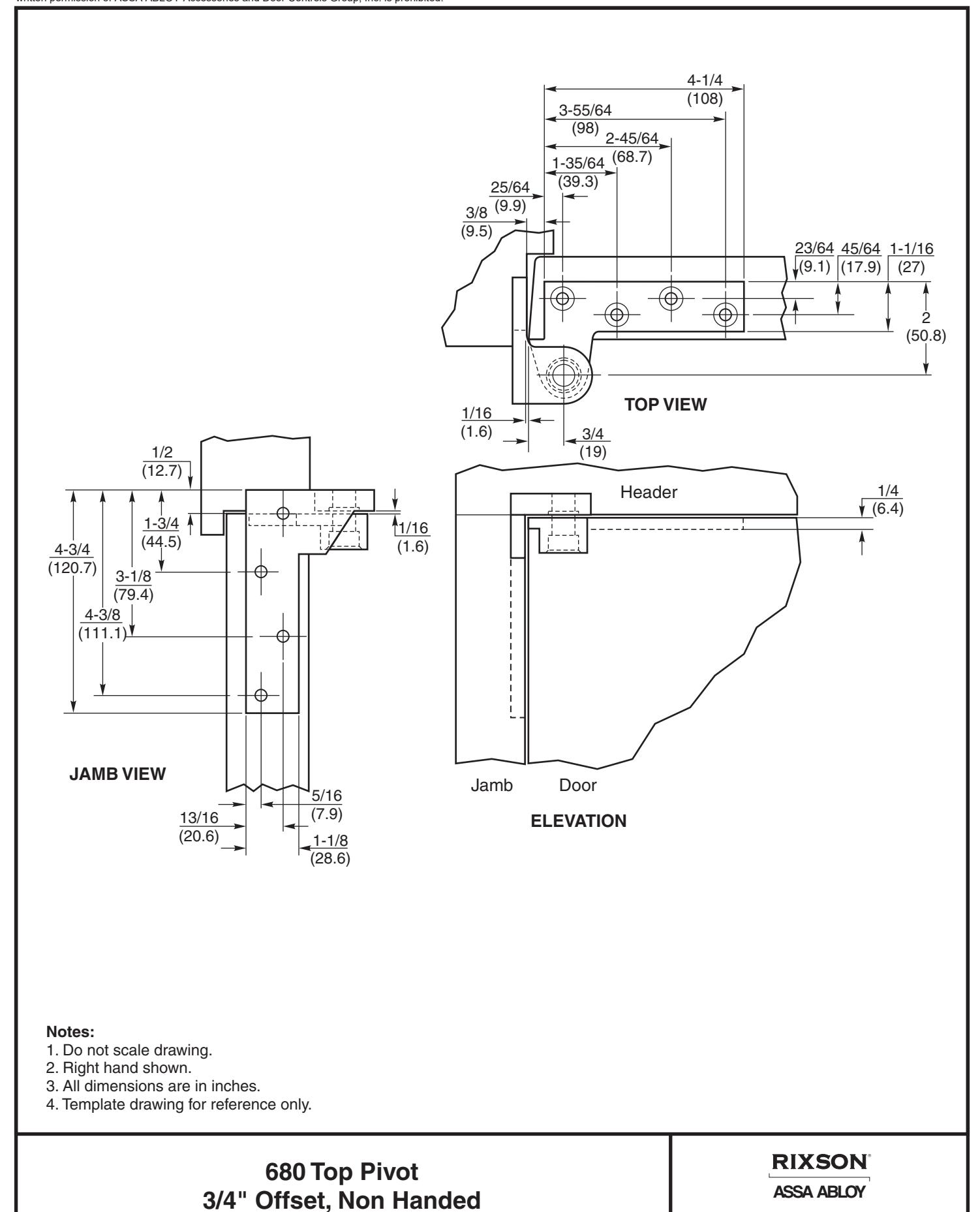

680 Top Pivot 3/4" Offset, Non Handed Mortise Jamb & Door

RIXSON ASSA ABLOY

www.rixson.com

TEMPLATE NUMBER REV

IS-680 3 05-24

DATE

Approved 2024-05-24

680 Top Pivot

Door Stop 1/8" Minimum From Face of Door to Door Stop Right Hand Door Spindle Position 3/4" From Face of Door to C of Spindle L 13/16" From Face of Jamb to C of Spindle L Door Jamb 3/16 R

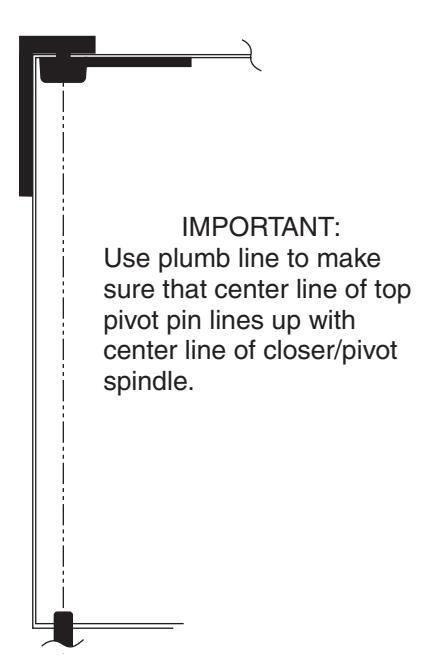

Location Attachment

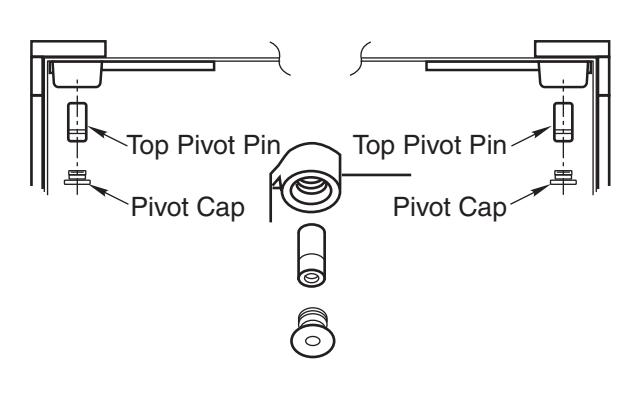

• 1. Attach door leaf of top pivot to door.
• 2. Attach jamb leaf of top pivot to frame.
• 3. If side jamb pivot is used, see required template for instructions.
• 4. Push top pivot pin into place.
• 5. Attach pivot cap. CAP MUST BE TIGHTENED SECURELY.

How To Determine Hand of Door

Face a door swinging open away from you. If it opens to the right, it is right hand. If it opens to the left, it is left hand.

680 Top Pivot 3/4" Offset, Non Handed www.rixson.com

ASSA ABLOY RIXSON ®

IS-680 TEMPLATE NUMBER DATE

05-24 REV 3

Approved 2024-05-24
