Norton Rixson 6300 Series 6331 Low Energy Operator Push Side Door

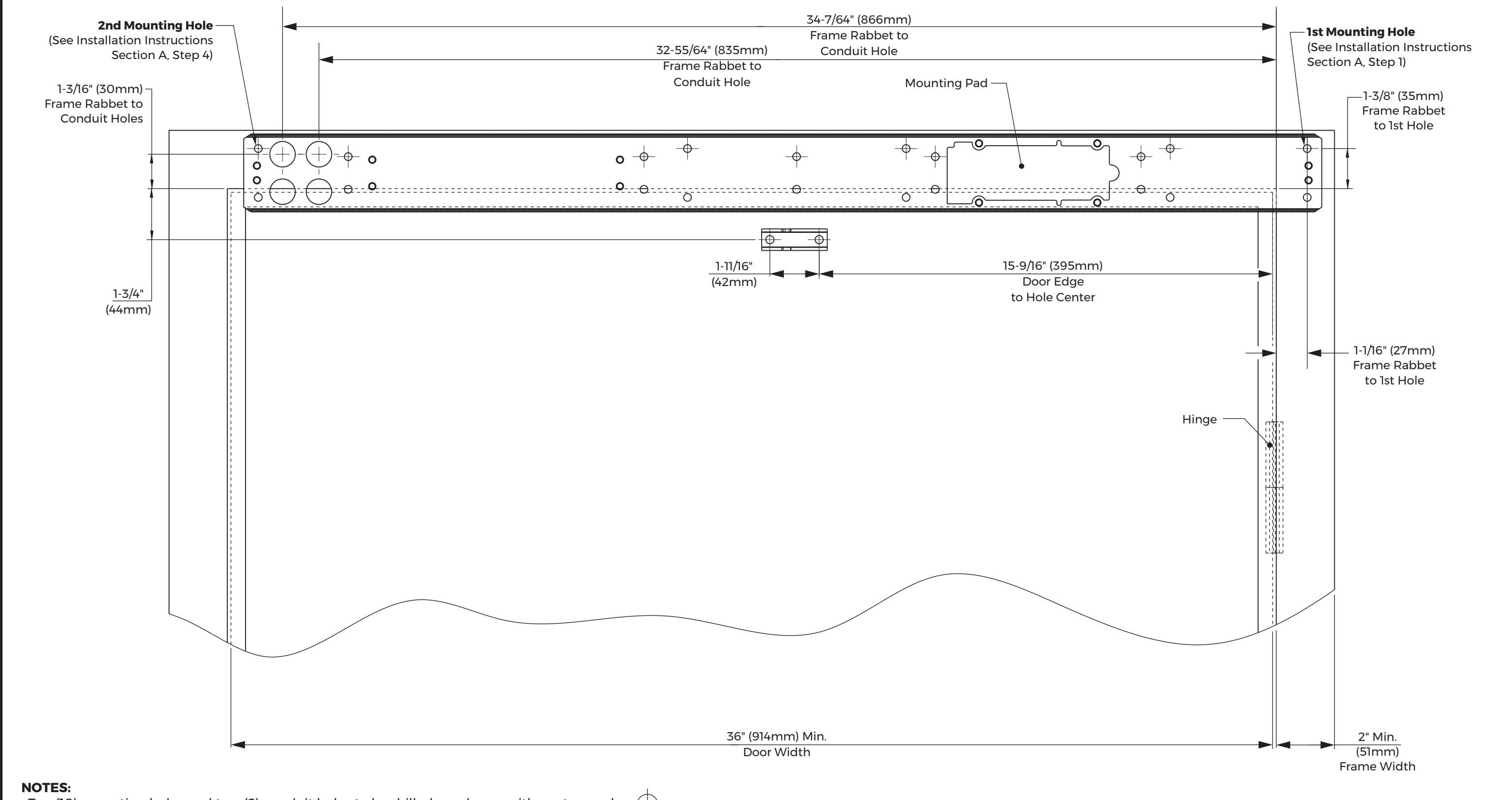

• ·Ten (10) mounting holes and two (2) conduit holes to be drilled are shown with center marks.
• · Dimensions given in inches (") and millimeters (mm).
• · Installation Instruction document number 80-9363-0007-020, available for download from nortonrixson.com.

6300 Series Operator Model 6331 Push Side Installation 36-48" Door Width, 90-250 lb. Door Weight 110° Min Open Angle w/ Reveal of 6-3/4" Max, 130° Max Open Angle w/ Reveal of 1/8" Min Approved 2024-04-01

LATE NUMBER

7363-0002 2 03/24
