SELL SHEET

6200 SERIES

LOW ENERGY DOOR OPERATOR

The Norton Rixson 6200 Series is a cost-effective electromechanical low energy operator offering intelligent functions, such as power close, latch assist and obstruction detection. Specifically designed for high traffic openings applications requiring a narrow profile to blend more seamlessly with the frame while fitting challenging applications with minimal overhead space. Complete with electric lock interface, touchless activation support, and mobile device Wi-Fi programming for easy installation and setup.

FEATURES

• • Interior or exterior doors
• • Maximum door size: 200 lbs. at 48" wide
• • High traffic openings
• • Electric lock interface
• • Wave to open activation support

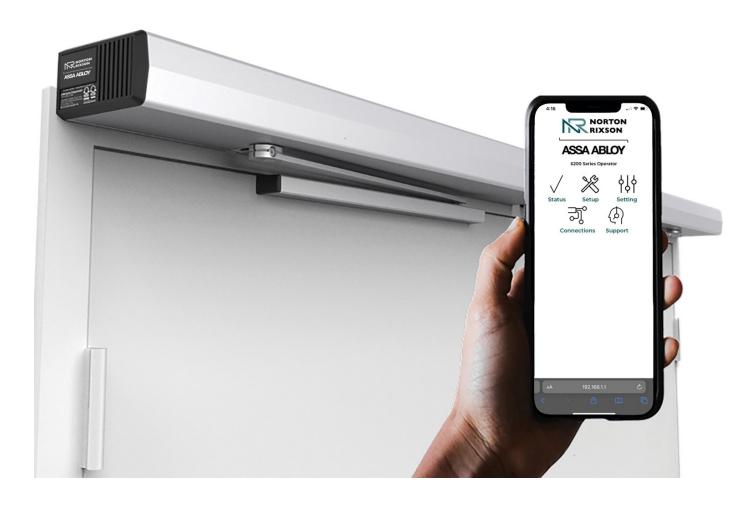

• • Mobile device Wi-Fi programming
• • Door opening: 130 degree push side, 120 degree pull side
• • 0.4 amp power supply
• • 4 inputs/2 outputs

FUNCTIONS

• • Latch Assist
• • Obstruction Detection While Closing
• • Push & Go
• • Powered Close
• • Power Assist

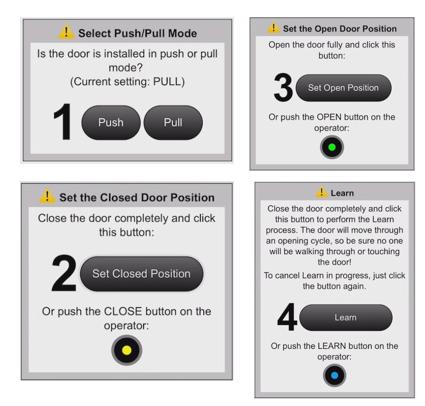

Four simple steps to program

KEY BENEFITS

Modular design

• • One person install
• • Backplate serves as a template to simplify and speed installation

Slim profile

• • Blends seamlessly with frame
• • Fits challenging openings

Simple controls

• • Easy to set up
• • Intelligent features

APPLICATIONS

• • Schools
• • Retail
• • Theatres
• • Banking
• • Office Buildings
• • Public Entrances
• • Restaurants

For more information go to www.nortondoorcontrols.com/en/products/power-operators/6200-series

Since 1880, Norton Rixson door controls have been an integral part of schools, hospitals and businesses around the globe. When you need products and people that perform at the highest level, rely on Norton Rixson – From Open to Close.
