Norton Rixson 608 Series Overhead Concealed Closer, Double or Single Acting, Center Hung, Aluminum Doors , Frame…_OC60430A

DOOR INSTALLATION

Top Door Rail ("S"Type Side Loading Arm)

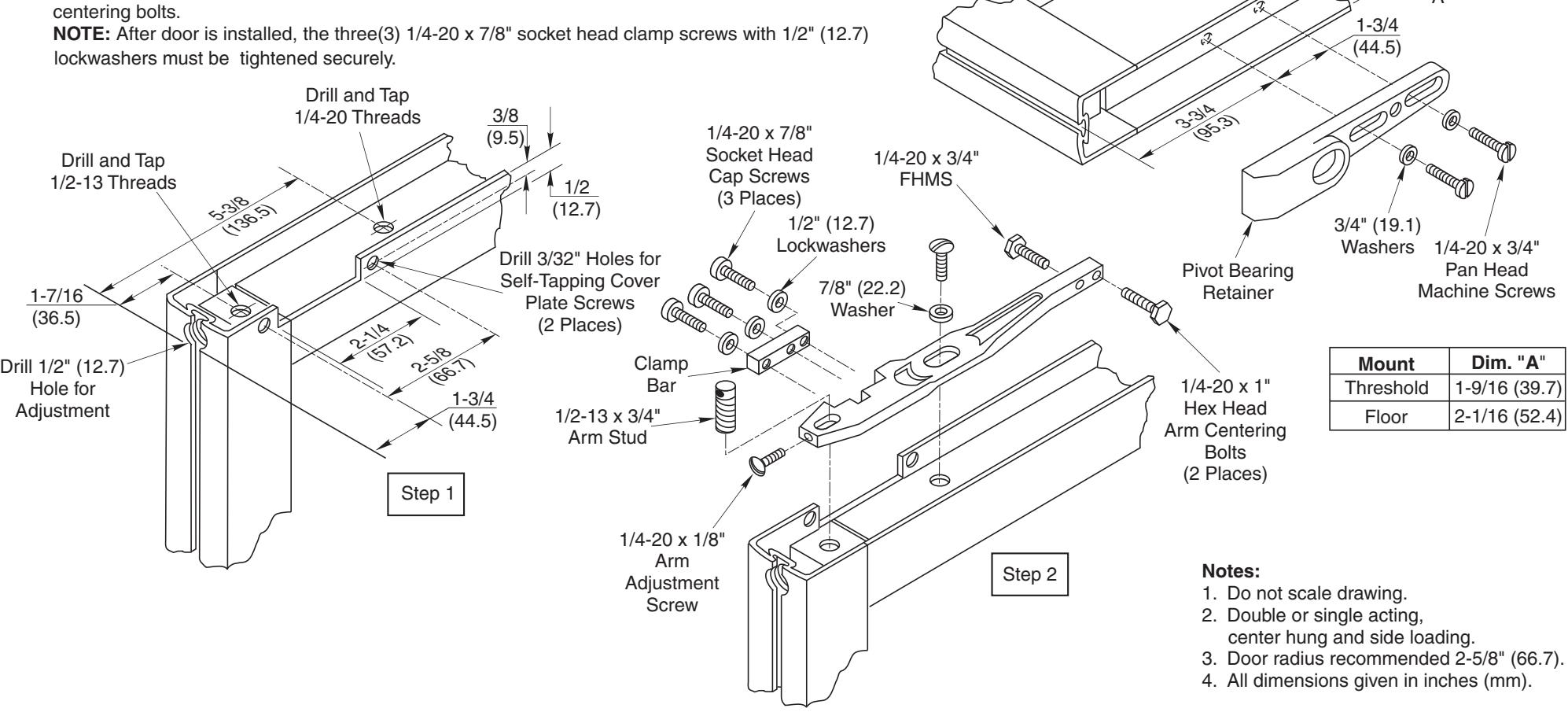

• Drill or drill and tap holes in top of door as shown.
• Make a 2-1/4" (57.2) x 1/2" (12.7) cutout in top of door as shown. (See Step 1.) Cutout must be on the inside face of the door.
• After installation of door, attach cover plate with self-tapping screws as provided. NOTE: Before attaching cover plate, make certain the three(3) 1/4-20 x 7/8" socket head clamp bar cap screws with 1/2" (12.7) lockwashers are tightened securely.
• Install arm (Step 2) using 1/4-20 x 3/4" flat head machine screw and 7/8" (22.2) washer. Install 1/2-13 x 3/4" arm stud and 1/4-20 x 1-1/8" dome head arm adjustment screw.
• Laterally adjust center of the arm spindle retainer 2-5/8" (66.7) from outside edge of door (not including weatherstripping). Center arm in the top rail by adjusting the two(2) 1/4-20 x 1" hex head centering bolts.

Bottom Door Rail (Side Loading)

• Drill and tap 1/4-20 holes in bottom rail of door as shown. Install pivot bearing retainer in bottom of door using two 1/4-20x3/4" pan head machine screws and lockwashers.
• Laterally adjust center of pivot bearing retainer 2-5/8" (66.7) from outside edge of door (not including weatherstripping) and tighten screws firmly.

608 Series Concealed Overhead Door Closers Double or Single Acting Aluminum Door & Frame Center Hung, Side Loading

NORTON RIXSON ASSA ABLOY

TEMPLATE NUMBER

OC60430A 3

01/22
