Norton Rixson 6000 Series Operator,D6061,D6071,Double Doors Drop Application Push Side Mounting for Door Widths …_80-7360-1017-020

Open the original PDF document

View PDF

Experience a safer and more open world

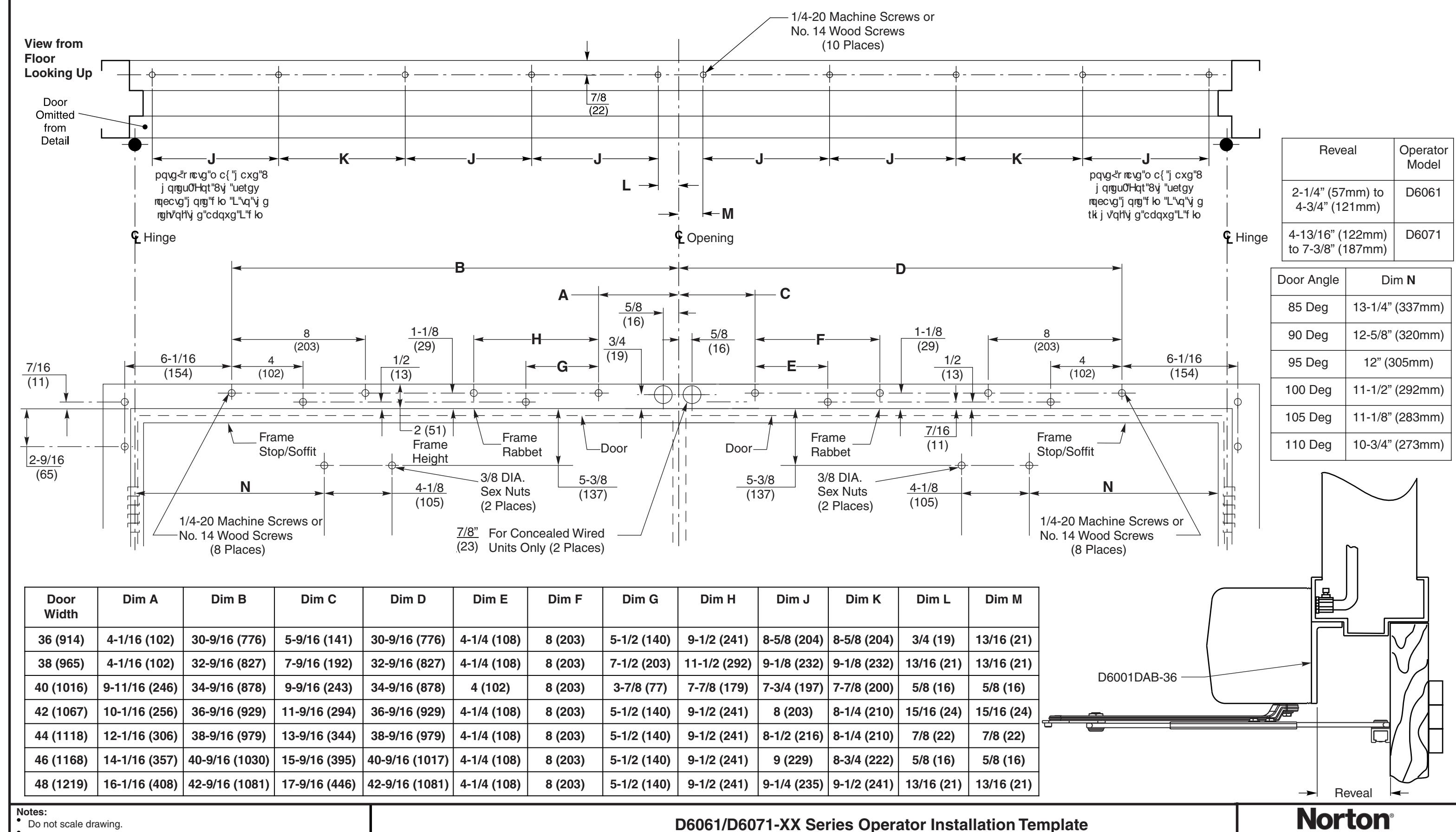

  • Doors shown for push side.
  • All dimensions are given in inches and millimeters.
  • Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
  • This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

for Drop Application using D6001DAB-XX Drop Angle Bracket where XX is the Door Width on 36" wide doors with 85 to 110 Degrees max opening For Reveal of 2-1/4" (57mm) to 7-3/8" (187mm)

ASSA ABLOY

2 80-7360-1017-020

12/20
