Norton Rixson 6000 Series Operator,D6061,D6071 Double Doors Transom Application Push Side Mounting for Door Widt…_80-7360-1030-020
Open the original PDF document
View PDF
|
1-1/2
(38) Min 1-13/16 (46) 2-3/16 (56) |
4-19/32
(117) Norton © Norton (373) REVEAL |
3-7/16
(77) 5/16 (8) |
5-3/16
(132) 5-1/2 (140) 15/16 (24) |
|
|---|---|---|---|---|
|
Door Leaf
Width |

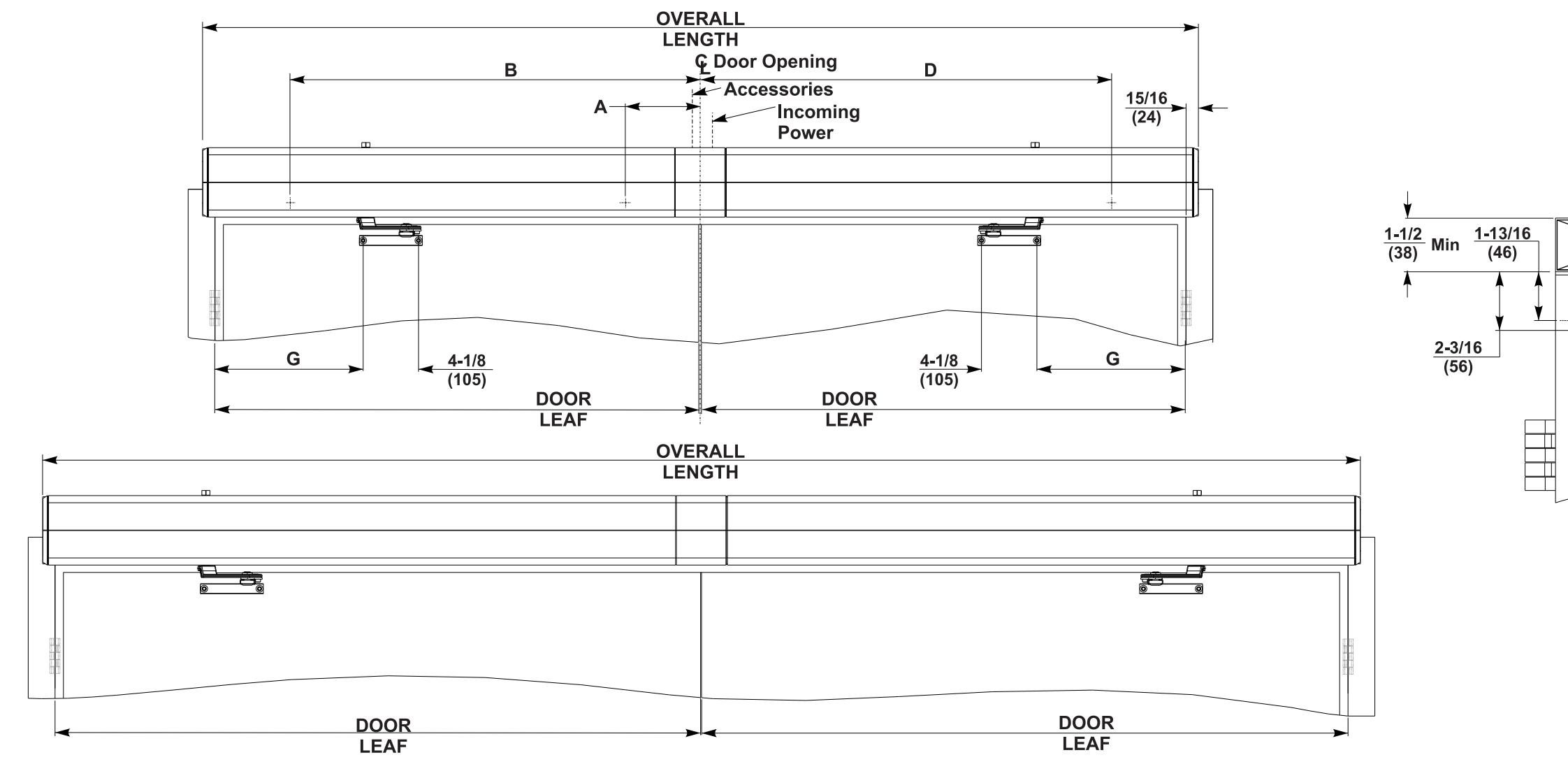

OAL (Overall
Length) |
Dim A | Dim B | Dim D |
|---|---|---|---|---|
| 36 (914) | 74-1/4 (1886) | 5-9/16 (141) | 30-9/16 (776) | 30-9/16 (776) |
| 38 (965) | 78-1/4 (1988) | 7-9/16 (192) | 32-9/16 (827) | 32-9/16 (827) |
| 40 (1016) | 82-1/4 (2089) | 9-9/16 (243) | 34-9/16 (878) | 34-9/16 (878) |
| 42 (1067) | 86-1/4 (2191) | 11-9/16 (294) | 36-9/16 (929) | 36-9/16 (929) |
| 44 (1118) | 90-1/4 (2292) | 13-9/16 (344) | 38-9/16 (979) | 38-9/16 (979) |
| 46 (1168) | 94-1/4 (2394) | 15-9/16 (395) | 40-9/16 (1030) | 40-9/16 (1017) |
| 48 (1219) | 98-1/4 (2496) | 17-9/16 (446) | 42-9/16 (1081) | 42-9/16 (1081) |
lotes:
- Dimensions shown in inches / (mm) unless specified otherwise.
-
Electrical requirements:
- Power input of 120VAC, 5Amp minimum
- Accessories circuit for activation to operator and low voltage
- For initial set up, doors much be un-latched and free to move
- For additional installation instructions, see instruction sheet 80-9360-1031-020. Visit <u>www.nortondoorcontrols.com</u>
- Refer to page 2 for proper handing of product
| 85° | 90° | 95° | 100° | 105° | 110° | ||
|---|---|---|---|---|---|---|---|
| Dim G |
13-1/4
(337) |
12-5/8
(320) |
12
(305) |
11-1/2
(292) |
11-1/8
(283) |
10-3/4
(273) |

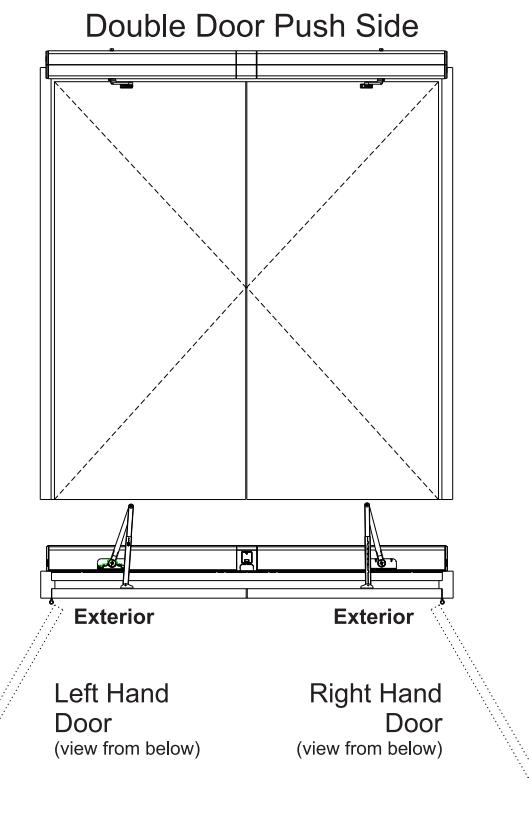

D6061/D6071 Series Template for Transom Bracket Install shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85 to 110 degrees
Norton ASSA ABLOY www.nortondoorcontrols.com
TEMPLATE NUMBER REV DATE 80-7360-1030-020 1 12/20

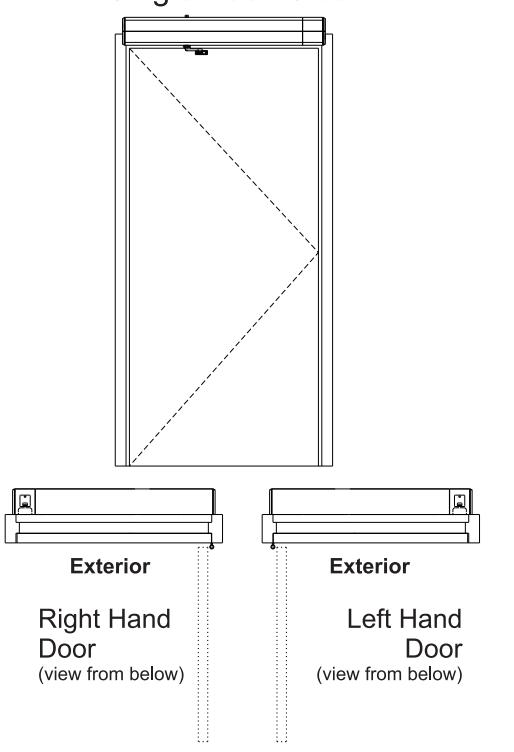

Single Pull Side
Left Hand
(view from below)
Interior
Door
NOTE:
Right Hand
(view from below)
Interior
- All illustrations on this page shown with 36" (914mm) wide doors

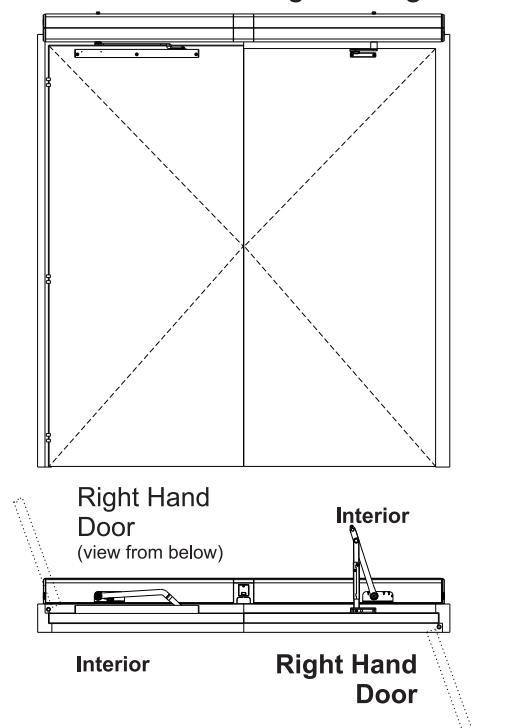

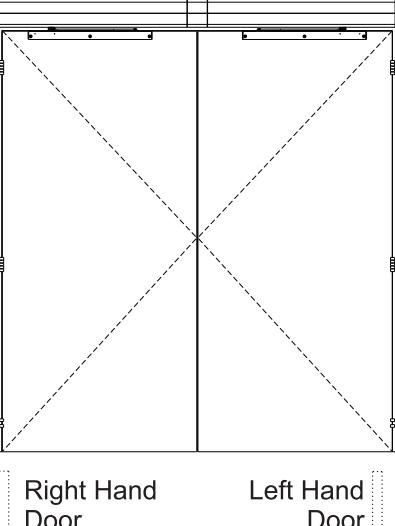

Double Door Pull Side
Door Door (view from below) Interior Interior

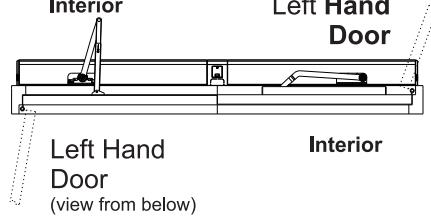

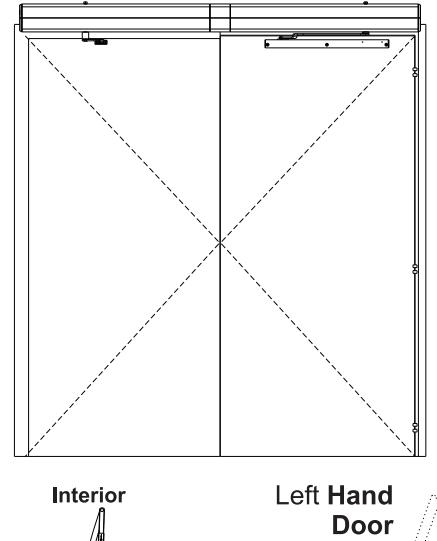

Double Door Double Egress Left Hand
Double Door Double Egress Right Hand
Single Push Side
D6061/D6071 Series Template for Transom Bracket Install shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85 to 110 degrees
Norton<sup>®</sup>
ASSA ABLOY www.nortondoorcontrols.com
TEMPLATE NUMBER REV DATE 80-7360-1030-020 1 12/20
Opening of 85 to 110 degrees
80-7360-1030-020 1 12/20
Open
Into Page
