Norton Rixson 6000 Series Operator,D6061,D6071 Double Door Push Side Mount Template_80-7360-1041-020

• Operator shown for push side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

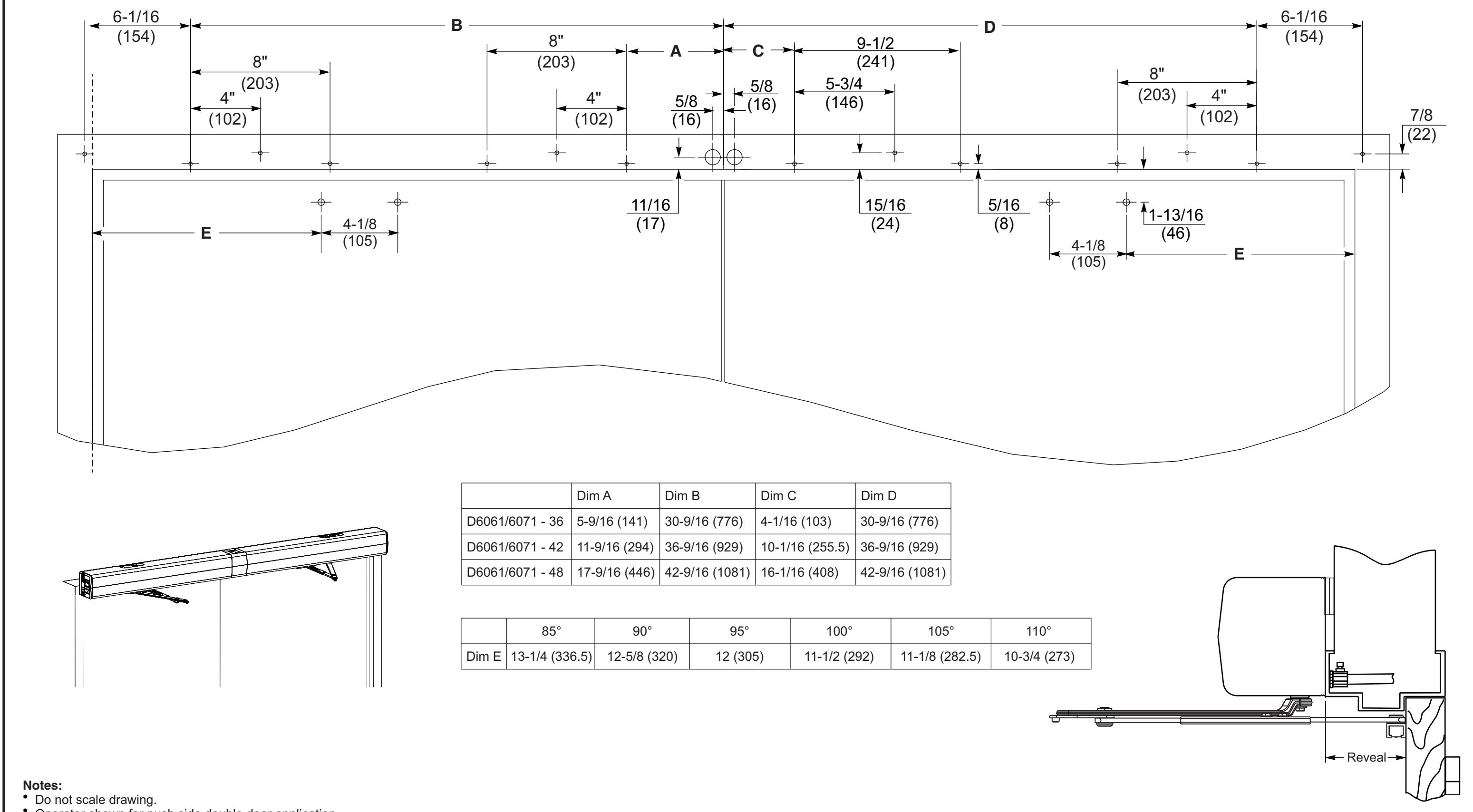

D6061/D6071 Series Operator Installation Template for Double Door Push Side Mount on 36"(914mm), 42"(1067mm), or 48"(1219mm) leafs (shown on 36" wide leafs) For Reveal of 2-1/4" (57mm) to 4-3/4" (121mm) for D6061 or 4-13/16" (122mm) to 7-3/8" (187mm) for D6071
