Norton Rixson 6000 Series Operator,D6061 Double Doors Push Side Mounting for Door Widths 36 – 48 and Reveals…_80-7360-1055-020
Open the original PDF document
View PDFExperience a safer and more open world
|
Door Leaf
Width |
OAL (Overall
Length) |
Dim A | Dim B | Dim D | |
|---|---|---|---|---|---|
| D6061-36 | 36 (914) | 74-1/4 (1886) | 5-9/16 (141) | 30-9/16 (776) | 30-9/16 (776) |
| D6061-38 | 38 (965) | 78-1/4 (1988) | 7-9/16 (192) | 32-9/16 (827) | 32-9/16 (827) |
| D6061-40 | 40 (1016) | 82-1/4 (2089) | 9-9/16 (243) | 34-9/16 (878) | 34-9/16 (878) |
| D6061-42 | 42 (1067) | 86-1/4 (2191) | 11-9/16 (294) | 36-9/16 (929) | 36-9/16 (929) |
| D6061-44 | 44 (1118) | 90-1/4 (2292) | 13-9/16 (344) | 38-9/16 (979) | 38-9/16 (979) |
| D6061-46 | 46 (1168) | 94-1/4 (2394) | 15-9/16 (395) | 40-9/16 (1030) | 40-9/16 (1017) |
| D6061-48 | 48 (1219) | 98-1/4 (2496) | 17-9/16 (446) | 42-9/16 (1081) | 42-9/16 (1081) |
- Dimensions shown in inches / (mm) unless specified otherwise.
-
Electrical requirements:
- Power input of 120VAC, 5Amp minimum Accessories circuit for activation to operator and low
- For initial set up, doors much be un-latched and free to move
- For additional installation instructions, see instruction sheet 80-9360-1031-020. Visit www.nortondoorcontrols.com
- Refer to page 2 for proper handing of product
| 85° | 90° | 95° | 100° | 105° | 110° | ||
|---|---|---|---|---|---|---|---|
| Dim E |
13-1/4
(337) |
12-5/8
(320) |
12
(305) |
11-1/2
(292) |
10-3/4
(273) |

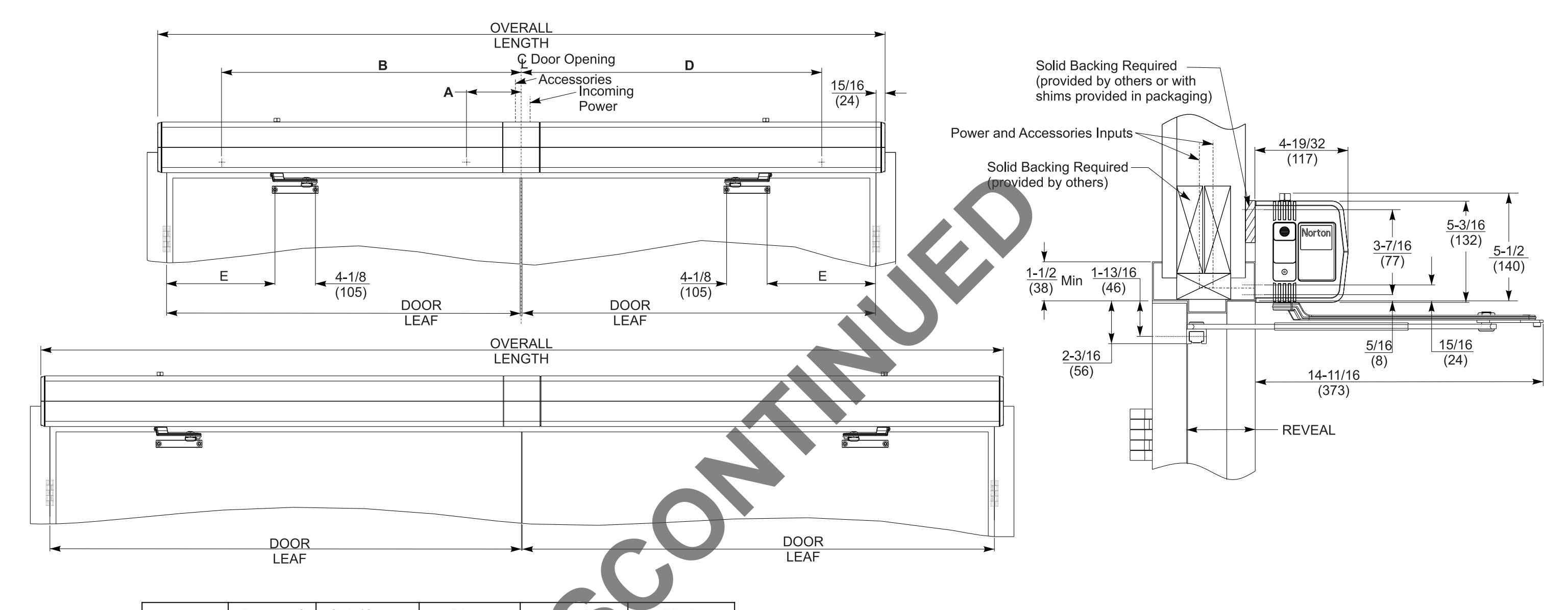

D6061 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85 to 110 degrees
Norton ASSA ABLOY www.nortondoorcontrols.com
80-7360-1055-020 2 10/20
Left Hand
(view from below)
Interior
Door
Single Pull Side
NOTE:
Right Hand
(view from below)
Interior
- All illustrations on this page shown with 36" (914mm) wide doors

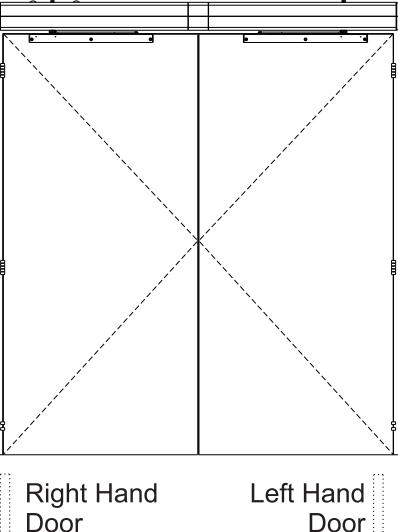

Double Door Pull Side

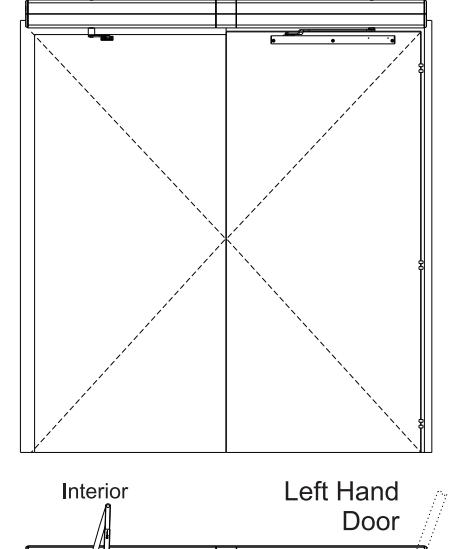

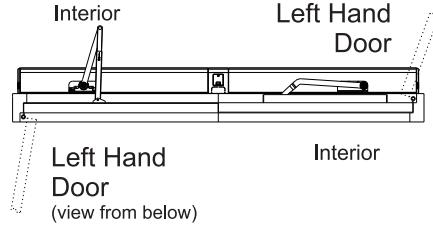

Double Door Double Egress Left Hand

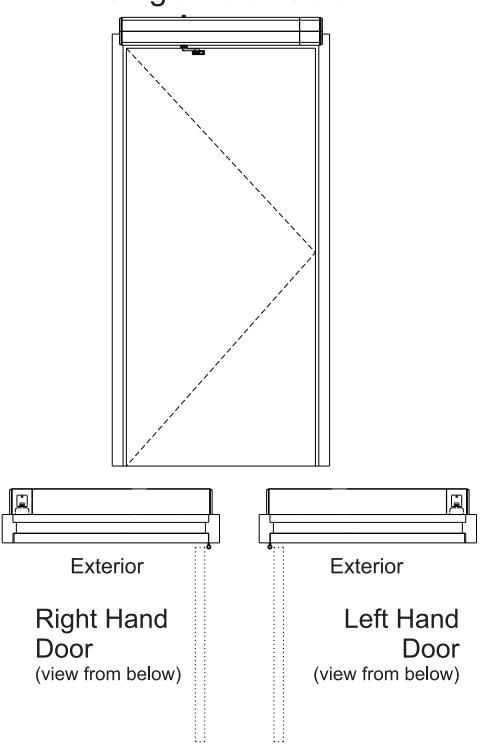

Single Push Side

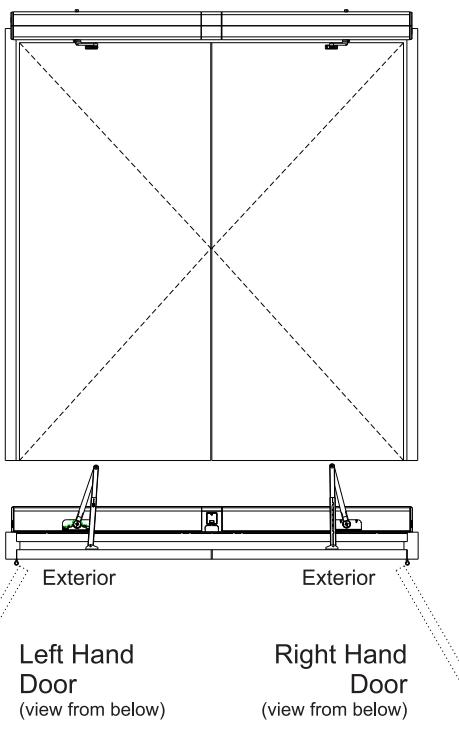

Double Door Push Side

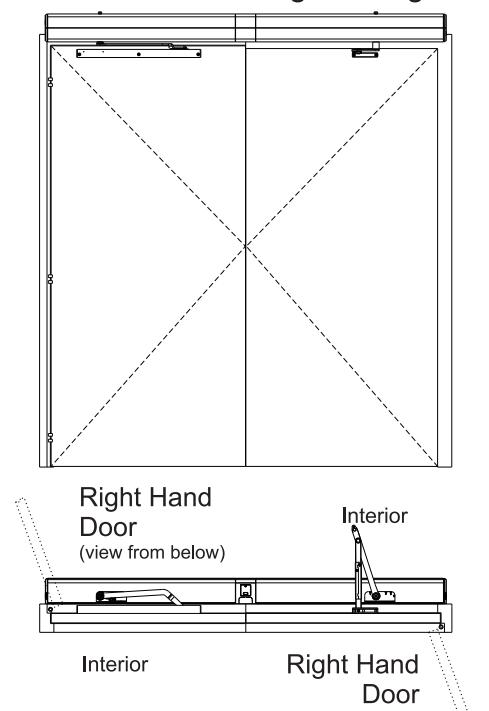

Double Door Double Egress Right Hand

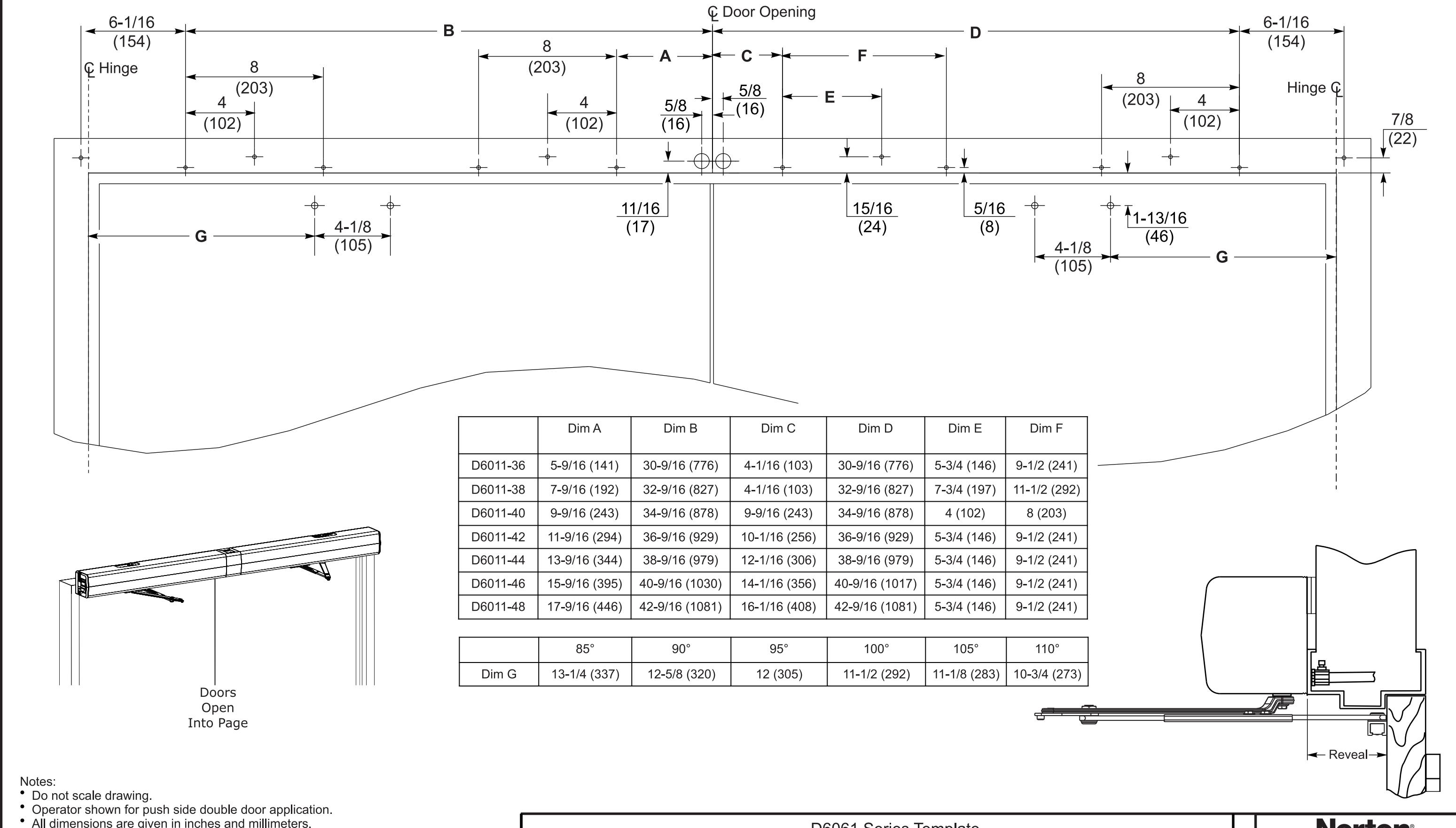

D6061 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85 to 110 degrees
Norton ®
ASSA ABLOY www.nortondoorcontrols.com
80-7360-1055-020 2 10/20
- Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
- This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.
D6061 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 2-1/4" to 4-3/4" and Opening of 85 to 110 degrees
