Norton Rixson 6000 Series Operator,D6051 Double Doors Pull Side Mounting for Door Widths 36 – 48 and Reveals…_80-7360-1054-020
Open the original PDF document
View PDFExperience a safer

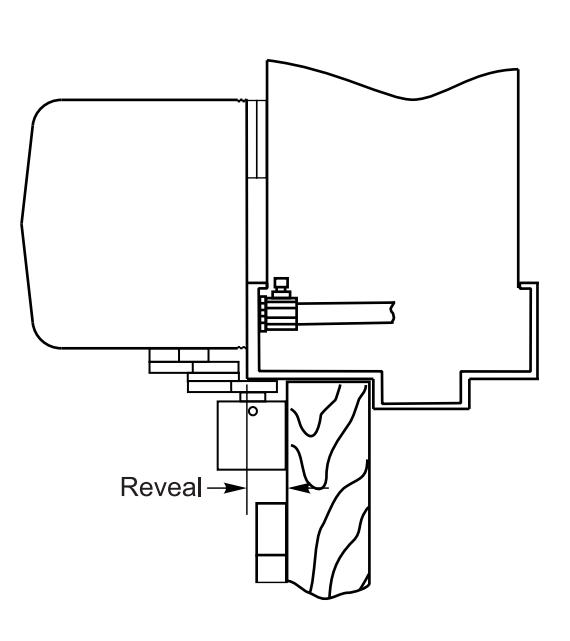

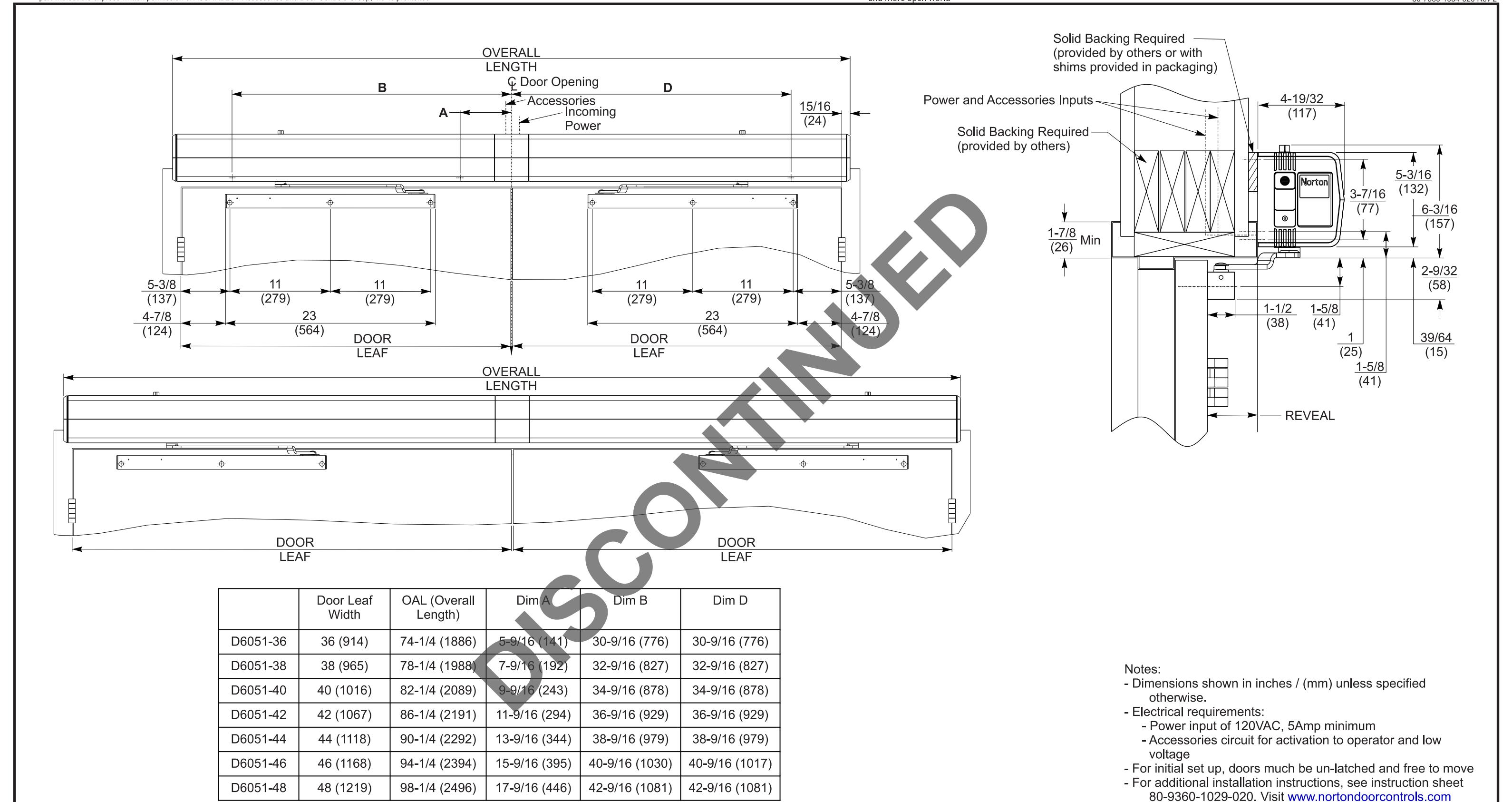

D6051 Series Template shown on pairs of 36", 38", 40", 42",44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 1/8" to 3" Maximum Opening of 110 degrees
Norton ASSA ARIOY
- Refer to page 2 for proper handing of product
ASSA ABLOY
TEMPLATE NUMBER | REV | DATE | | | | | | | | | | | | | | | | | | |

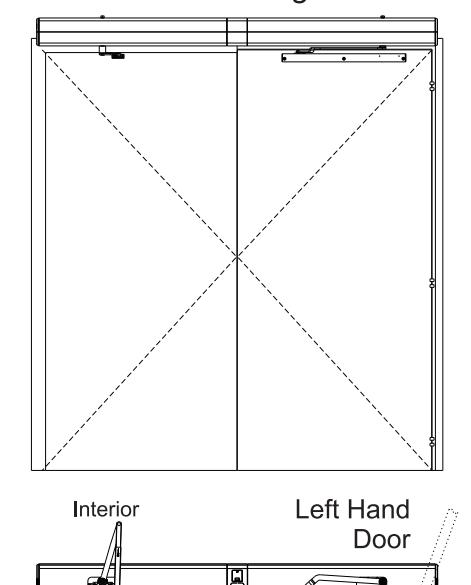

Left Hand
(view from below)
Interior
Door

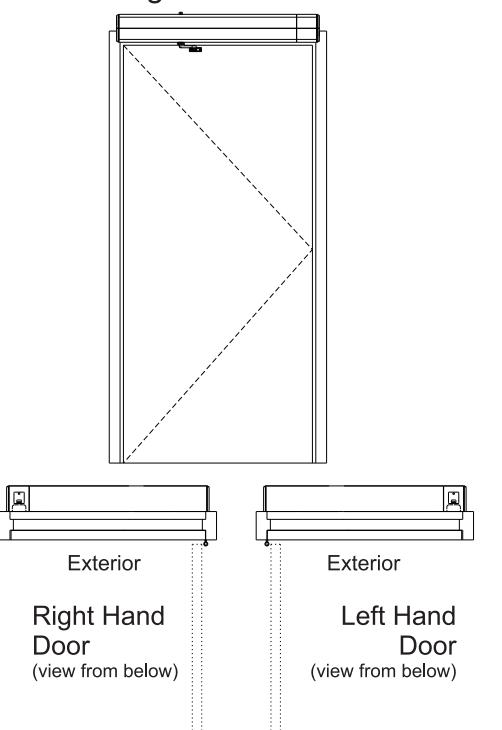

Single Pull Side
NOTE:

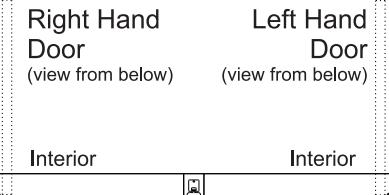

Right Hand
(view from below)
Interior
- All illustrations on this page shown with 36" (914mm) wide doors

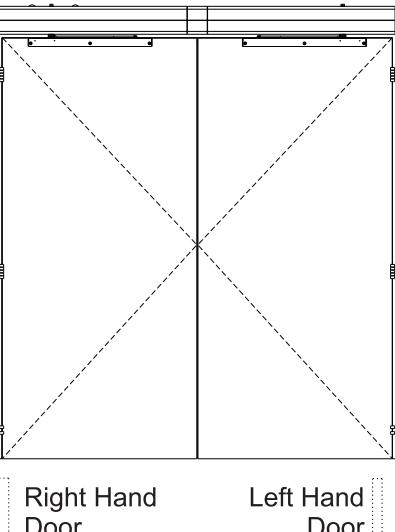

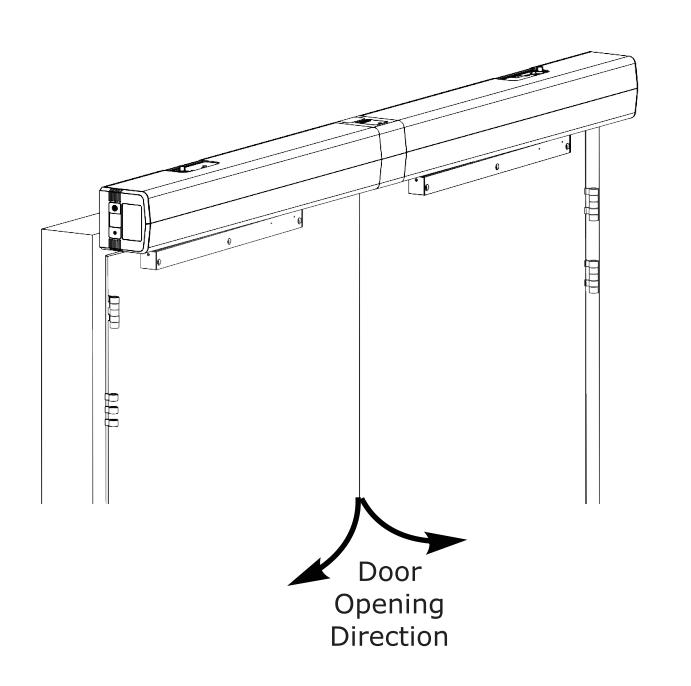

Double Door Pull Side

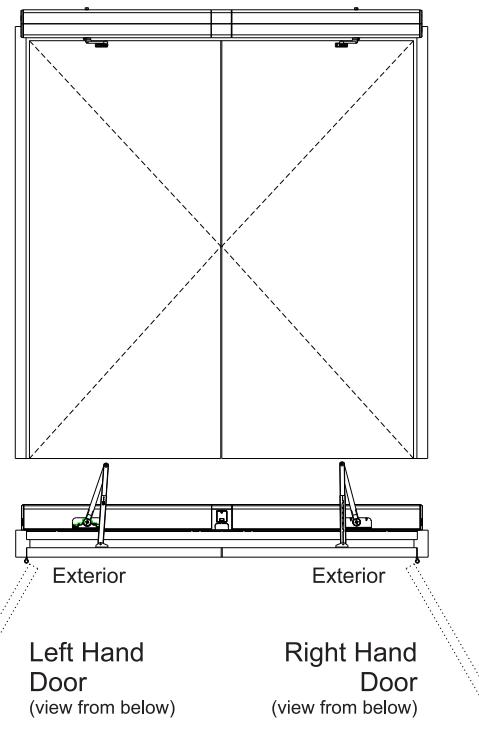

Double Door Push Side

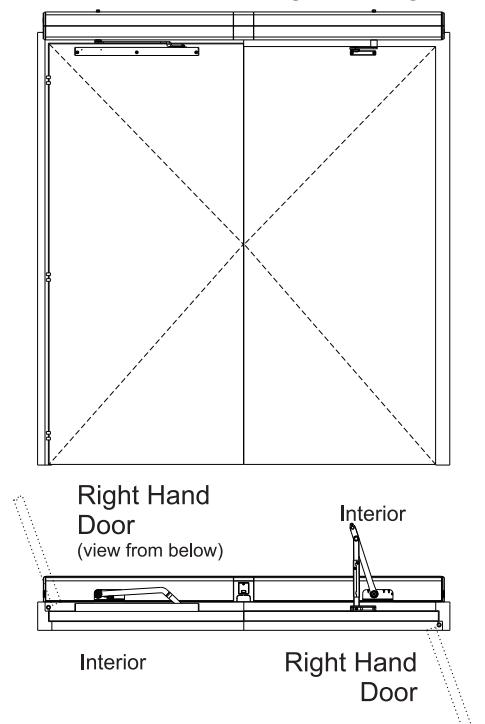

Double Door Double Egress Left Hand
Left Hand Door (view from below)
Interior
Single Push Side
D6051 Series Template shown on pairs of 36", 38", 40", 42",44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 1/8" to 3" Maximum Opening of 110 degrees
Norton
ASSA ABLOY www.nortondoorcontrols.com
TEMPLATE NUMBER REV DATE 80-7360-1054-020 2 10/20
| Dim A | Dim B | Dim C | Dim D | Dim E | Dim F | |
|---|---|---|---|---|---|---|
| D6051-36 | 5-9/16 (141) | 30-9/16 (776) | 4-1/16 (103) | 30-9/16 (776) | 5-3/4 (146) | 9-1/2 (241) |
| D6051-38 | 7-9/16 (192) | 32-9/16 (827) | 4-1/16 (103) | 32-9/16 (827) | 7-3/4 (197) | 11-1/2 (292) |
| D6051-40 | 9-9/16 (243) | 34-9/16 (878) | 9-9/16 (243) | 34-9/16 (878) | 4 (102) | 8 (203) |
| D6051-42 | 11-9/16 (294) | 36-9/16 (929) | 10-1/16 (256) | 36-9/16 (929) | 5-3/4 (146) | 9-1/2 (241) |
| D6051-44 | 13-9/16 (344) | 38-9/16 (979) | 12-1/16 (306) | 38-9/16 (979) | 5-3/4 (146) | 9-1/2 (241) |
| D6051-46 | 15-9/16 (395) | 40-9/16 (1030) | 14-1/16 (356) | 40-9/16 (1017) | 5-3/4 (146) | 9-1/2 (241) |
| D6051-48 | 17-9/16 (446) | 42-9/16 (1081) | 16-1/16 (408) | 42-9/16 (1081) | 5-3/4 (146) | 9-1/2 (241) |
Notes:

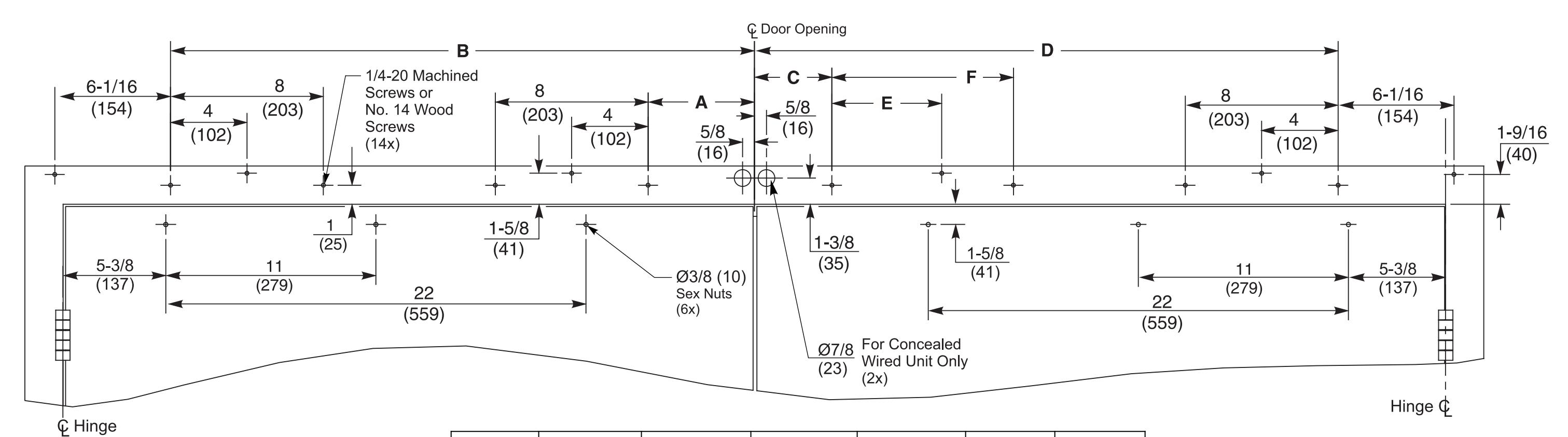

- Do not scale drawing.
- Operator shown for pull side double door application.
- All dimensions are given in inches and millimeters.
- Recommended thickness for reinforcements in hollow-metal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
- This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.
D6051 Series Template shown on pairs of 36", 38", 40", 42",44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 1/8" to 3" Maximum Opening of 110 degrees
Norton® ASSA ABLOY www.nortondoorcontrols.com TEMPLATE NUMBER 80-7360-1054-020 2 10/20
