Norton Rixson 6000 Series Operator,D6021,D6031,Double Doors Drop Application,Push Side Mounting for Door Widths …_80-7360-1014-020

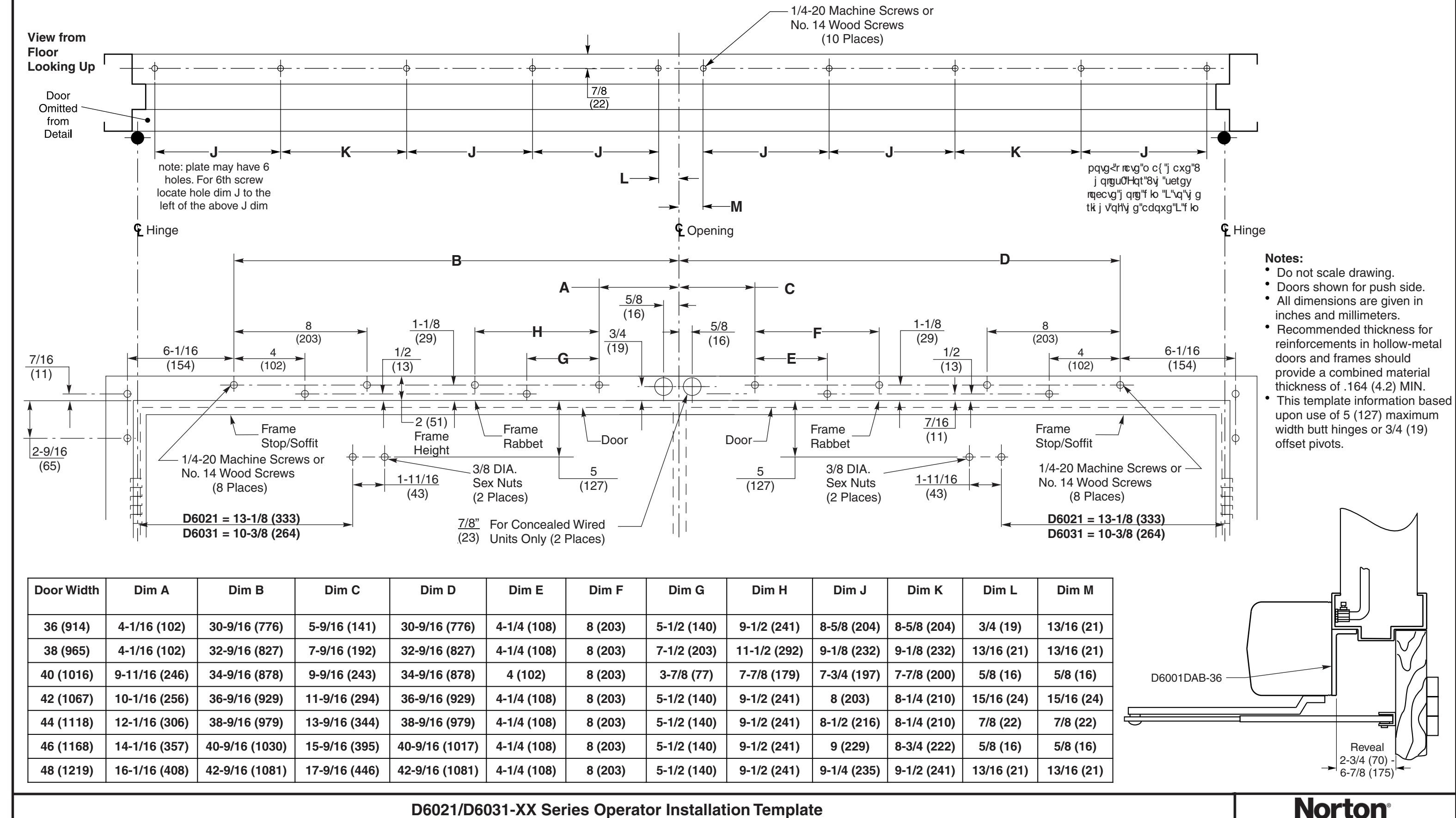

D6021/D6031-XX Series Operator Installation Template for Drop Application using D6001DAB-XX Drop Angle Bracket where XX is the Door Width on 36" wide doors with up to 110 Degrees max opening for D6021 or With up to 180 Degrees max opening for D6031 For Reveal of 2-3/4" (70mm) to 6-7/8" (175mm)

ASSA ABLOY

80-7360-1014-020 2

12/20
